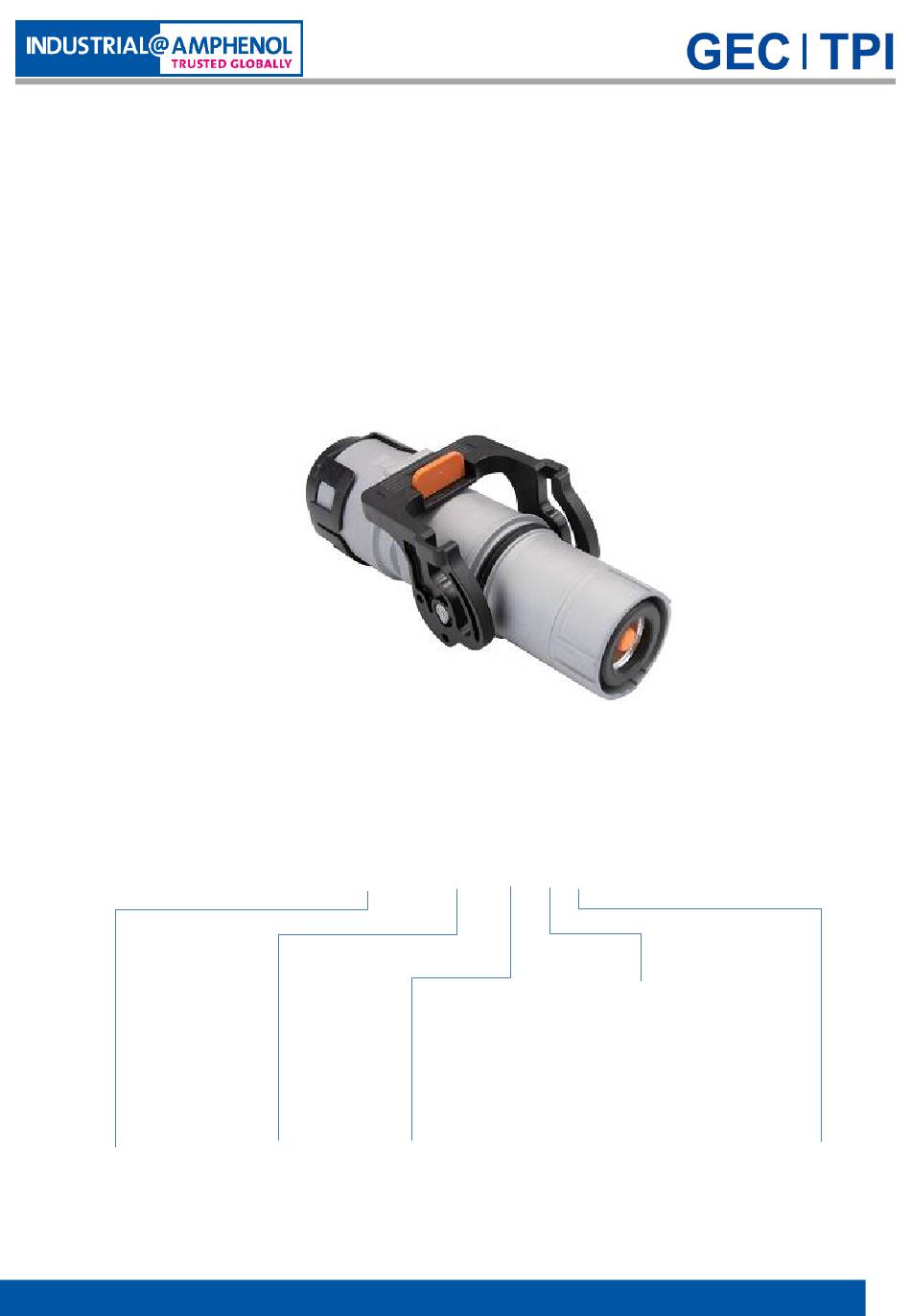

Document No: 8P1269
Rev.01
PL18X-501-95-2-G30R
The Assembly Manual for PL18X-501-95-2-G30R
键位
X 键
Y 键
U 键
V 键
W 键
T 键
PL18(X)-50(X)-95-2-G30R
高压互锁
Key
0：无
X
1：有
Y
U
V
HVIL
W
0：NO
T
1：WITH
连接器安装说明
线缆大小
G2 Connector
Cable Size
mm2
95
线缆类型
LV216
www.amphenol-gec.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amphenol PL18 501-95-2-G30R Series
Summary of Contents for Amphenol PL18 501-95-2-G30R Series
- Page 1 Document No: 8P1269 Rev.01 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R PL18(X)-50(X)-95-2-G30R 线缆大小 高压互锁 键位 0：无 X 键 G2 Connector Cable Size 1：有 Y 键 U 键 V 键 HVIL 线缆类型 W 键 0：NO LV216 T 键 1：WITH www.amphenol-gec.com...
-
Page 2: Part 1： Package Contents
PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 第一部分：包装清单 Part 1： Package contents ② ① ③ ④ ⑤ ⑦ ⑧ ⑩ ⑥ ⑨ ⑪ 备注 Note： 安装过程请保留HVIL防护盖在此位置，等线束组装完毕再取出。 HVIL cap should be left in place during assembly, removed after final assembly is complete before use. ①... -
Page 3: Part 2: Plug Assembly
PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 第二部分：插头组装 Part 2: Plug Assembly 步骤1：穿配件 Step1：Assemble the accessories 1-1 线缆准备：按生产需求从表1选择合适尺寸的线缆，并裁剪 1-1 Cable preparation : take right-sized cable and cut the cable according to production plan from the table 1 表1：线材规格 Table 1：Cable size 连接器... - Page 4 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 步骤3：压接铜环 Step3：Crimping Copper Ring 3-1 将 ⑧内铜环从右端移动到屏蔽线下方，屏蔽线覆盖在铜环表面 3-1 Move the ⑧ inside copper ring from the right side to the side below the shield. The shield line is covered on the surface of the copper ring ⑧...
- Page 5 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 步骤4：取1pcs的 ③ R4 holder 自左端穿上线缆，并压接在其上(规格参照表4) Step 4: Take a ③ R4 holder, load it to the cable end on the left, then crimp(refer to table 4) Be sure the gap here is 2.0±0.5mm ③R4 holder 确保这里的间隙是1.5mm到2.5mm之间...
- Page 6 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 步骤7：取出②绝缘筒，按图示方向插入③ R4 holder中, 并使其触底 Step 7: Take a ② Insulation sleeve ,plug it to ③ R4 holder in direction as show in photo , and make it contact the bottom ② Insulation sleeve 绝缘筒...
- Page 7 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 步骤10： ②绝缘筒按图示方向插入到①屏蔽壳组件, 并使其触底，注意确认HVIL位置以及卡簧是否到位。 Step 10: Plug the ② Insulation sleeve into ①Shield shell assembly as shown in photo , and make it reach the bottom, take care to ensure HVIL in right place and pull back wire to ensure clamp spring in position . ②...
- Page 8 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 12-3 测试说明: 警告:建议的电气测试及其参数应根据终端应用要求进行审查，以确保安全性并防止损坏其他部件。提供的参数 是基于PowerLok连接器和其峰值1500VDC额定。提供的测试参数可能超出电缆组件或设备上使用的其他部件/ 材料的限制。 12-3 Test note: caution: Recommended electrical tests and their parameters should be reviewed against end application requirements to ensure safety and to prevent damage to other components. Parameters provided are based on the PowerLok connectors and their peak 1500VDC rating.
- Page 9 PL18X-501-95-2-G30R 连接器安装说明 The Assembly Manual for PL18X-501-95-2-G30R 版本记录 Revision history 序号 版本 变更内容 日期 Number Revision Content of change Date 新发行 2024/07/02 New issue Rev.01 20240702 Document No: 8P1269 08-08...
- Page 10 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
