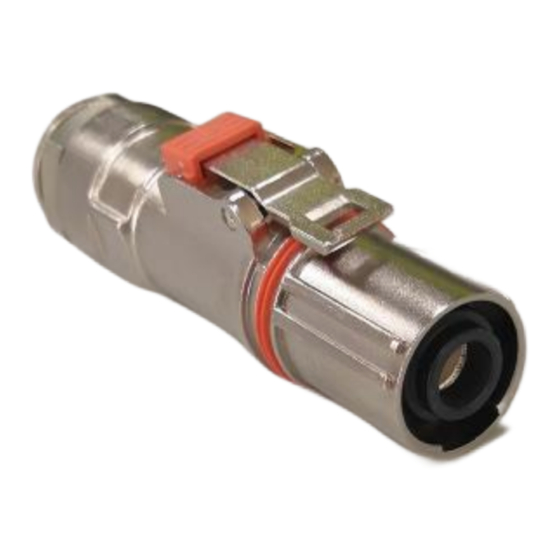

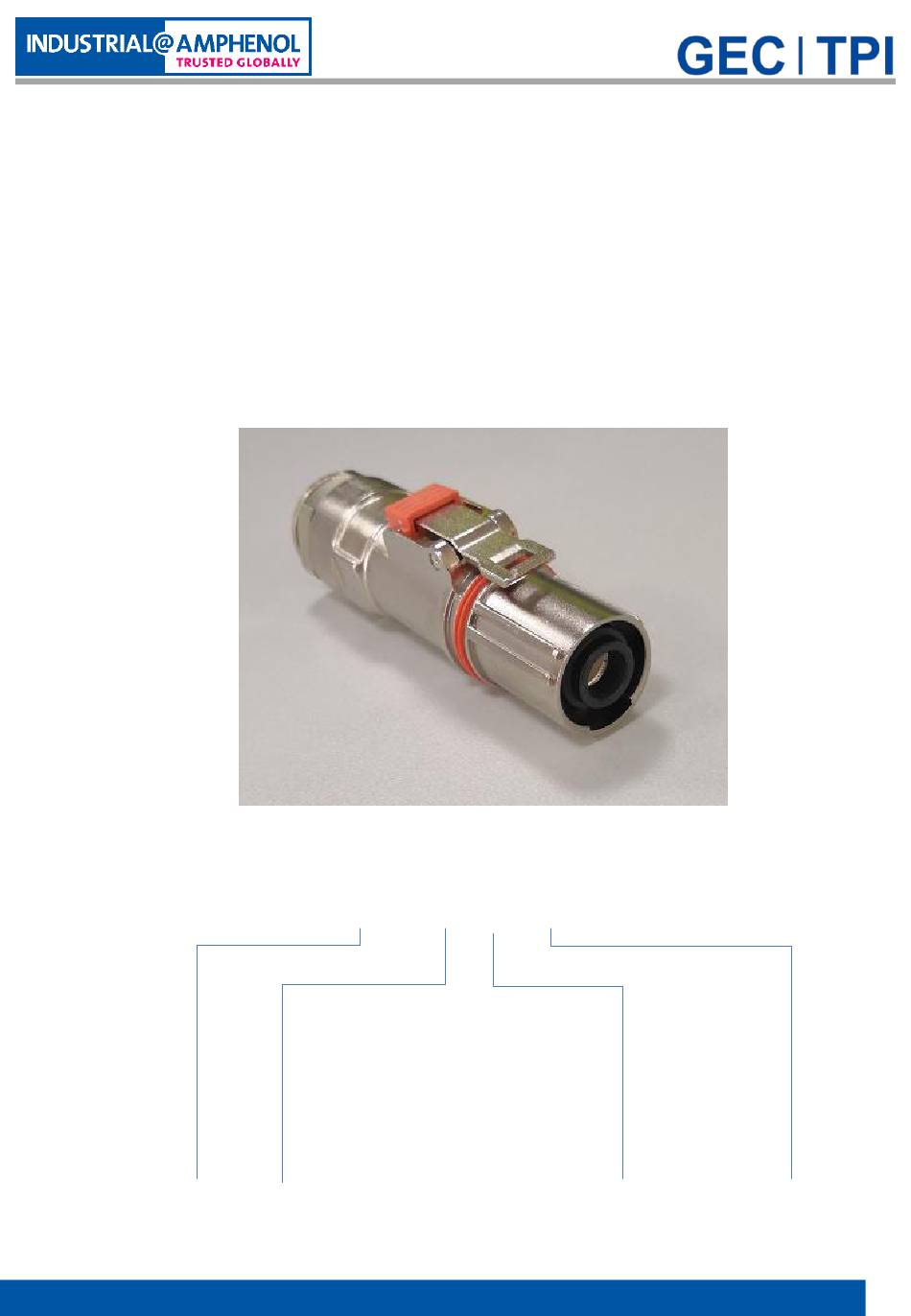

- Page 1 Manual P/N：8P1232 Rev.01 2023/10/24 PL18X-201-50-G46 单芯50mm2直头插头组装规范 PL18X-201-50-G46 1 POS 50mm2 180D Plug Assembly Manual PL18(X)-20(X)-50-G46 高压互锁 线缆大小 键位 0：无 X 键 Cable Size 1：有 Y 键 U 键 线缆类型 V 键 HVIL Cable type W 键 0：No 1：Yes 50mm2 FHLR2GCB2G...
- Page 2 PL18X-201-50-G46 单芯50mm2直头插头组装规范 PL18X-201-50-G46 1 POS 50mm2 180D Plug Assembly Manual 第一部分：包装清单 Part 1： Package contents ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① 屏蔽壳组件 Shield shell assembly ×1 ② 带高压互锁弹片的绝缘筒 Insulation sleeve with HVIL contact spring ×1 （200系列无高压互锁弹片 No HVIL contact spring for 200 series）...
- Page 3 PL18X-201-50-G46 单芯50mm2直头插头组装规范 PL18X-201-50-G46 1 POS 50mm2 180D Plug Assembly Manual 安装步骤 Assembly Instruction 步骤1：取出连接器, 如上页图示拆开零件 Step1：Take out the connector and take it apart as the picture shown on the previous page. 步骤2：选取合适线缆(参考手册最后的附录），按照要求长度切线与剥外被。 Step2： Select the right cable(refer to the appendix), Cut cable and strip the cable jacket according to the Required length.
- Page 4 PL18X-201-50-G46 单芯50mm2直头插头组装规范 PL18X-201-50-G46 1 POS 50mm2 180D Plug Assembly Manual 步骤6： 调试好免换模压接机BZW-6C，将端子压接在线材上(详细规格参照手册最后的附录） Step6： Set up the hexagon shape crimping machine BZW-6C, Then crimp the terminal on the wire. (please refer to the appendix at the end of this manual for more crimping information) 横截面...
- Page 5 PL18X-201-50-G46 单芯50mm2直头插头组装规范 PL18X-201-50-G46 1 POS 50mm2 180D Plug Assembly Manual 将密封圈推到底 Push the sealing to the bottom T60099 步骤10：建议客户参考下面的测试参数，对线束进行绝缘电阻测试和耐压测试 Step10：Insulation resistance and dielectric withstand voltage tests are obligated to be done according to below test parameters to guarantee the good electric performance of the whole harness 10-1 绝缘电阻测试...
- Page 6 PL18X-201-50-G46 单芯50mm2直头插头组装规范 PL18X-201-50-G46 1 POS 50mm2 180D Plug Assembly Manual 附录APPENDIX 线缆压接的参考规范 Reference specification for cable crimping 导体外径 压接高度H(mm) 压接宽度 参考保持力 导体结构 电线外径 线缆型号 电线尺寸 (mm) (mm) (mm) Crimping W(mm) Retention Cable Type Cable Size Conductor Conductor Wire OD height...
- Page 7 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
