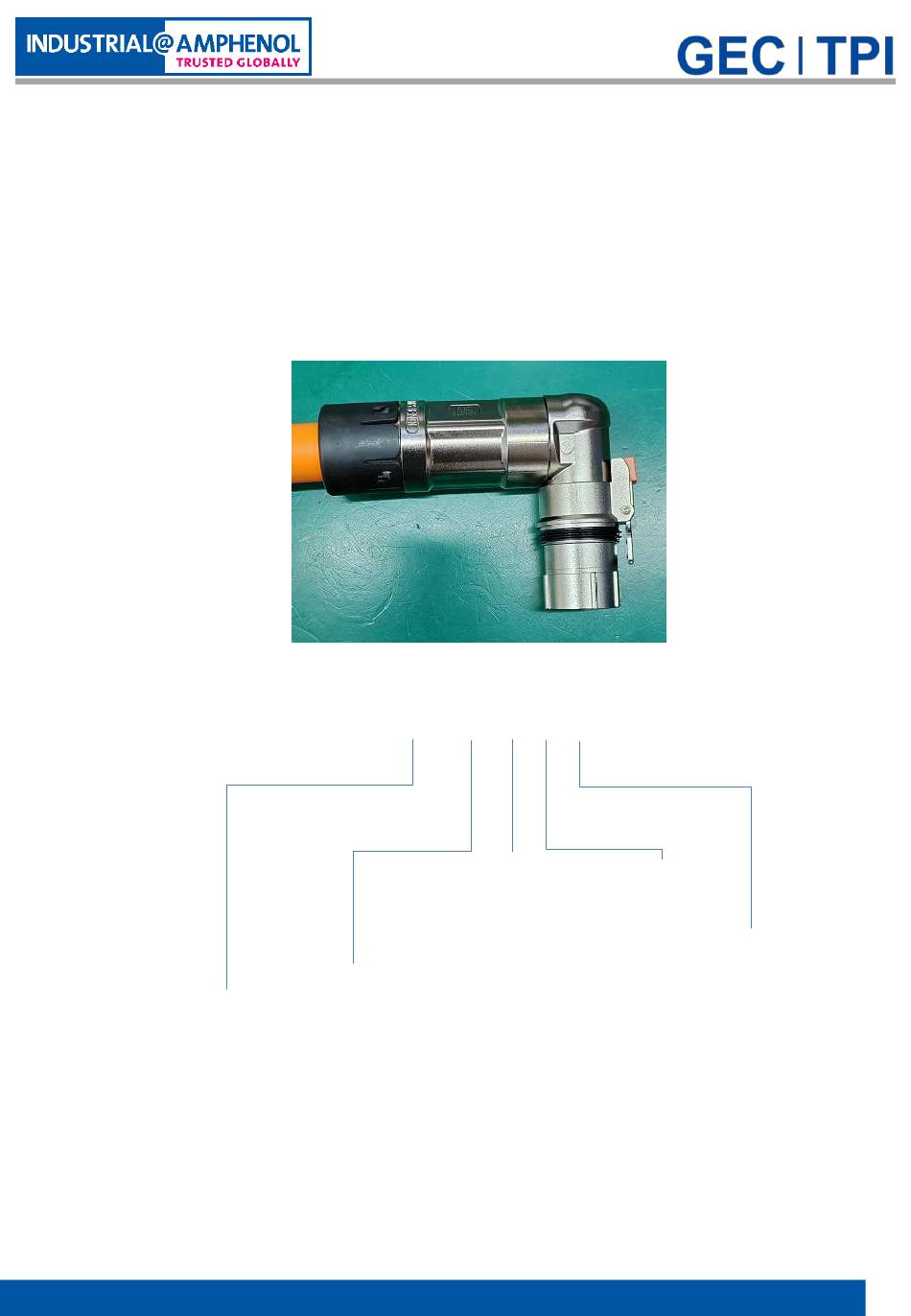

Document No: 8P1270
Rev.01
PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范

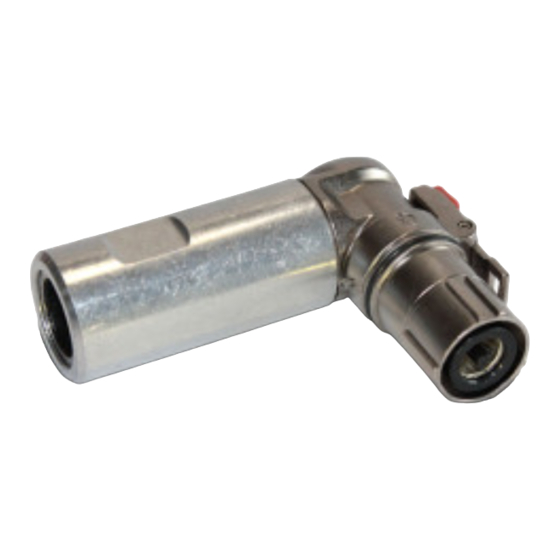

PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug
键位
X 键
Y 键
U 键
V 键
W 键
T 键
PL28X-301-XX-3-M-EV PL28X-301-XX-3-H-EV 也适用于本组装规范，仅仅是外壳
镀层颜色不同。
PL28X-301-XX-3-M-EV PL28X-301-XX-3-H-EV is also applicable to this
assembly specification, except that the plating color of the shell is different.
Assembly Manual
PL28X-301-XX-3-EV
Key
高压互锁
X
0：无
Y
1：有
U
HVIL
V
0：NO
W
1：WITH
T
G3
Cable Size
Connector
mm2
70
50
LEONI
FHLR2GCB
2G
www.amphenol-gec.com
Advertisement
Related Manuals for Amphenol PL28X-301-XX-3-EV
Summary of Contents for Amphenol PL28X-301-XX-3-EV
- Page 1 Document No: 8P1270 Rev.01 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual PL28X-301-XX-3-EV 键位 高压互锁 X 键 0：无 Cable Size Y 键 1：有 Connector U 键 HVIL V 键 LEONI 0：NO W 键 FHLR2GCB 1：WITH T 键...
-
Page 2: Part 1： Package Contents
PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 第一部分：包装清单 Part 1： Package contents ② ④ ⑤ ① ③ ⑦ ⑧ ⑨ ⑥ ① 端子组件 Terminal assembly ×1 ② 塑料绝缘筒1 Plastic insulated set-1 ×1 ③ 塑料绝缘筒2 Plastic insulated set-2 ×1 ④... -
Page 3: Part 2: Plug Assembly
PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 第二部分：插头组装 Part 2: Plug Assembly 步骤1：选取合适线缆（参考手册最后的附录），按照要求的长度与数量切剥线，剥线尺寸如图1。 Step1：Select the right cable(refer to the appendix), cut and strip cables according to actual requirements, Strip dimension is shown in Figure 1. 33±0.5 图1... - Page 4 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 步骤6：将压接环推至齐外被口，编织均匀返折固定在其上，套上屏蔽环④如图6示。 Step6：Push the crimping ring to the end of jacket, Folded and fixed shielding on jacket evenly, then put on the shielding ring ④ as shown in Figure 6.
- Page 5 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 步骤9：将压接环推到底并固定，再将屏蔽环推到底，散开编织，齐屏蔽环外沿将编织修剪平齐如图9示 。 Step9：Push the crimping ring to the bottom and fix it, then push the shielding ring to the bottom, scatter the braid, and trim the braid to the outer edge of the shielding ring, as shown in Figure 9.
- Page 6 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 步骤12：将密封圈推到接头底部，再将线夹推至接头底部如图12示，也可以将线夹套在密封圈上用冶具将其推到底 。 Step12：Push the seal to the bottom of the connector, and then push the wire clip to the bottom of the connector as shown in Figure 12, or you can put the wire clip on the seal and push it to the bottom of the connector with the fixture shown in Figure 12.
- Page 7 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 步骤14：建议客户参考下面的测试参数，对线束进行绝缘电阻测试和耐压测试。 Step14：Insulation resistance and dielectric withstand voltage tests are obligated to be done according to below test parameters to guarantee the good electric performance of the whole harness. 14-1 绝缘电阻测试...
- Page 8 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 线缆压接的参考规范 Reference specification for cable crimping 压接高度 压接宽度 导体外径 参考保持力 电线尺寸 导体结构 电线外径 线缆料号 (mm) H(mm) W(mm) 刀模编号 Cable (mm) (mm) Retention Cable PN Conductor Crimping Crimping Crimping Size...
- Page 9 PL28X-301-XX-3-EV 10.0 单芯弯插头组装规范 PL28X-301-XX-3-EV 10.0 1POS Right Angle Plug Assembly Manual 版本记录 Revision history 序号 变更内容 日期 Number Content of change Date 新出 20240702 New Issue 08/08 Manual P/N：8P1270 _ Rev.01 20240702...
- Page 10 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
