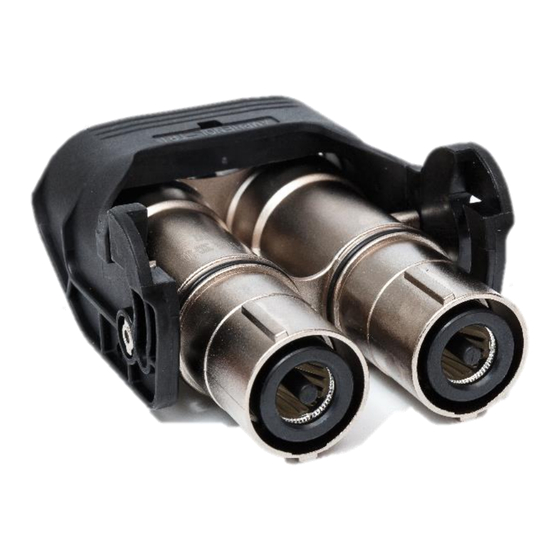

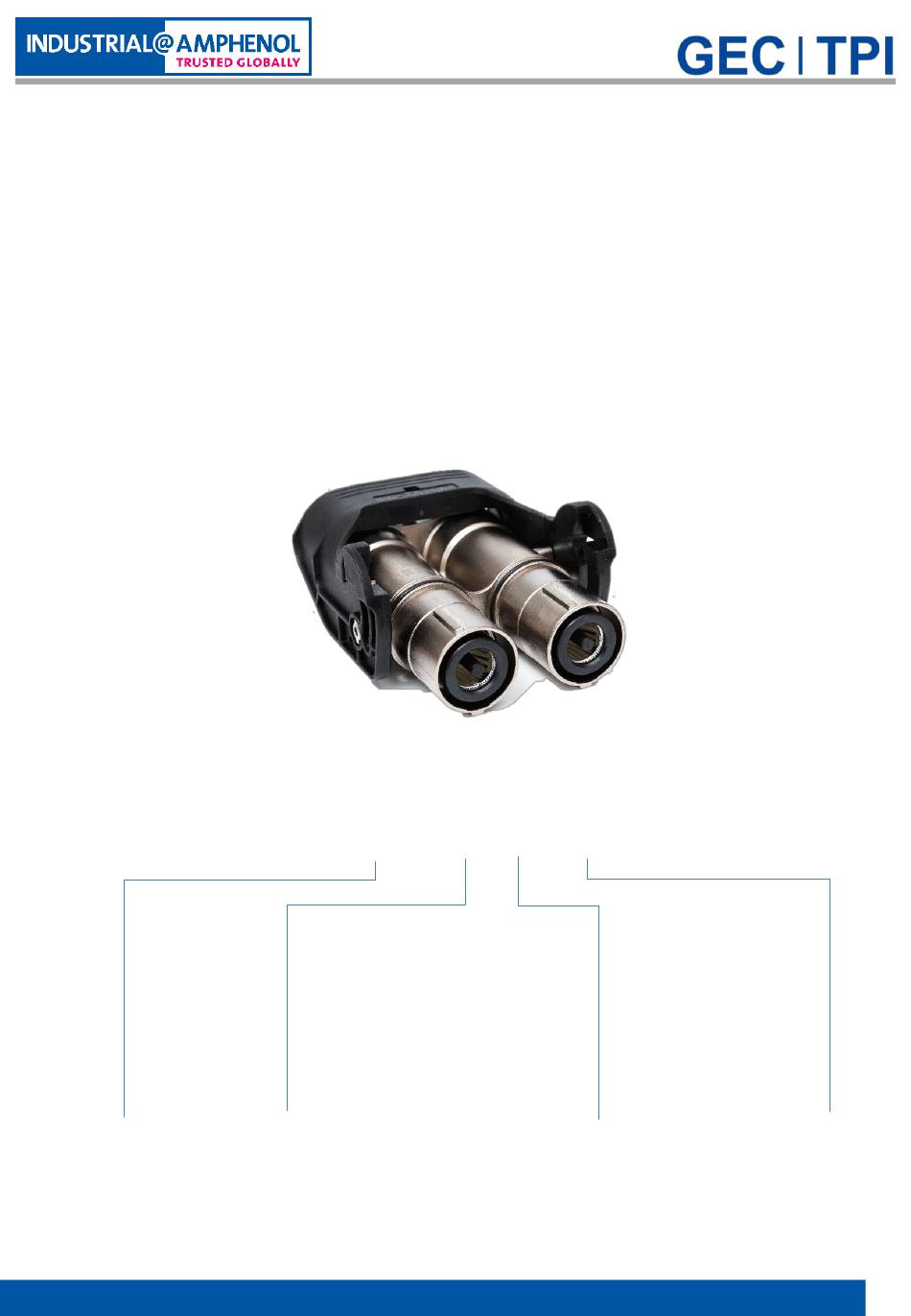

- Page 1 Manual P/N：8P1241 Rev.01 20240112 PL182X-301-50-G15 二芯 50mm2 直头插头组装规范 PL182X-301-50-G15 2 POS 50mm2 180D Straight Plug Assembly Manual PL182(X)-30(1)-50-G15 高压互锁 0：无 线缆大小 1：有 Cable Size 线缆类型 键位 HVIL X 键 Coroplast 0：NO Y 键 FHLR2GCB2G 1：WITH www.amphenol-gec.com...
- Page 2 PL182X-301-50-G15 二芯 50mm2 直头插头组装规范 PL182X-301-50-G15 2 POS 50mm2 180D Straight Plug Assembly Manual 第一部分：包装清单 Part 1： Package contents ③ ① ② ⑥ ⑧ ④ ⑤ ⑦ ① 屏蔽壳组件 Shielding shell assembly ×1 ② 带高压弹片的绝缘筒 Insulation sleeve with HVIL contact spring ×2 （300系列无高压互锁端子...
- Page 3 PL182X-301-50-G15 二芯 50mm2 直头插头组装规范 PL182X-301-50-G15 2 POS 50mm2 180D Straight Plug Assembly Manual 安装步骤 Assembly Instruction 步骤1：取出连接器, 如上页图示拆开零件 Step1：Take out the connector and take it apart as the picture shown on the previous page. 步骤2：选取合适线缆(参考手册最后的附录），按照表1尺寸剥离绝缘皮和外皮 Step2：Select the right cable(refer to the appendix), prepare the cable according to the sketch and Table 1 below 导体...
- Page 4 PL182X-301-50-G15 二芯 50mm2 直头插头组装规范 PL182X-301-50-G15 2 POS 50mm2 180D Straight Plug Assembly Manual 步骤5： 调试好端子压接机，将端子压接在线材上(详细规格参照手册最后的附录） Step5： Set up the crimp machine, Then crimp the terminal on the wire. (please refer to the appendix at the end of this manual for more crimping information) 横截面...
- Page 5 PL182X-301-50-G15 二芯 50mm2 直头插头组装规范 PL182X-301-50-G15 2 POS 50mm2 180D Straight Plug Assembly Manual ① 屏蔽壳组件 Shield shell assembly HVIL位置需对准 将密封圈推到底 Push the seal to the bottom The HVIL position must be aligned 步骤9：建议客户参考下面的测试参数,对线束进行绝缘电阻测试和耐压测试 Step9：Insulation resistance and dielectric withstand voltage tests are obligated to be done according to below test parameters to guarantee the good electric performance of the whole harness 9-1 绝缘电阻测试...
- Page 6 PL182X-301-50-G15 二芯 50mm2 直头插头组装规范 PL182X-301-50-G15 2 POS 50mm2 180D Straight Plug Assembly Manual 附录APPENDIX 线缆压接的参考规范 Reference specification for cable crimping 压接高度 压接宽度 参考 电线 导体外 导体结构 电线外径 线缆型号 尺寸 径(mm) H(mm) W(mm) 刀模编号 保持力 (mm) (mm) Cable Type Cable Conduc...
- Page 7 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
