Document No: 8P1161
Rev.01
G70-单芯2代10mm直头组装式连接器安装说明

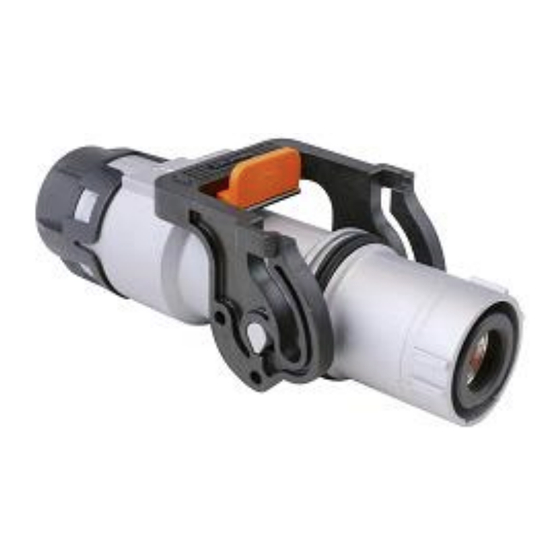

For G70-1POS PowerLok 10mm G2 180D Plug Connector
键位
X 键
Y 键
U 键
V 键
W 键
T 键
The Assembly manual
PL18(X)-30(X)-50-2-G70
高压互锁
Key
0：无
X
1：有
Y
U
V
HVIL
W
0：NO
T
1：WITH
线缆大小
G2 Connector
Cable Size
mm2
50
线缆类型
cable
www.amphenol-gec.com
Advertisement
Related Manuals for Amphenol PL18 30 Series
Summary of Contents for Amphenol PL18 30 Series

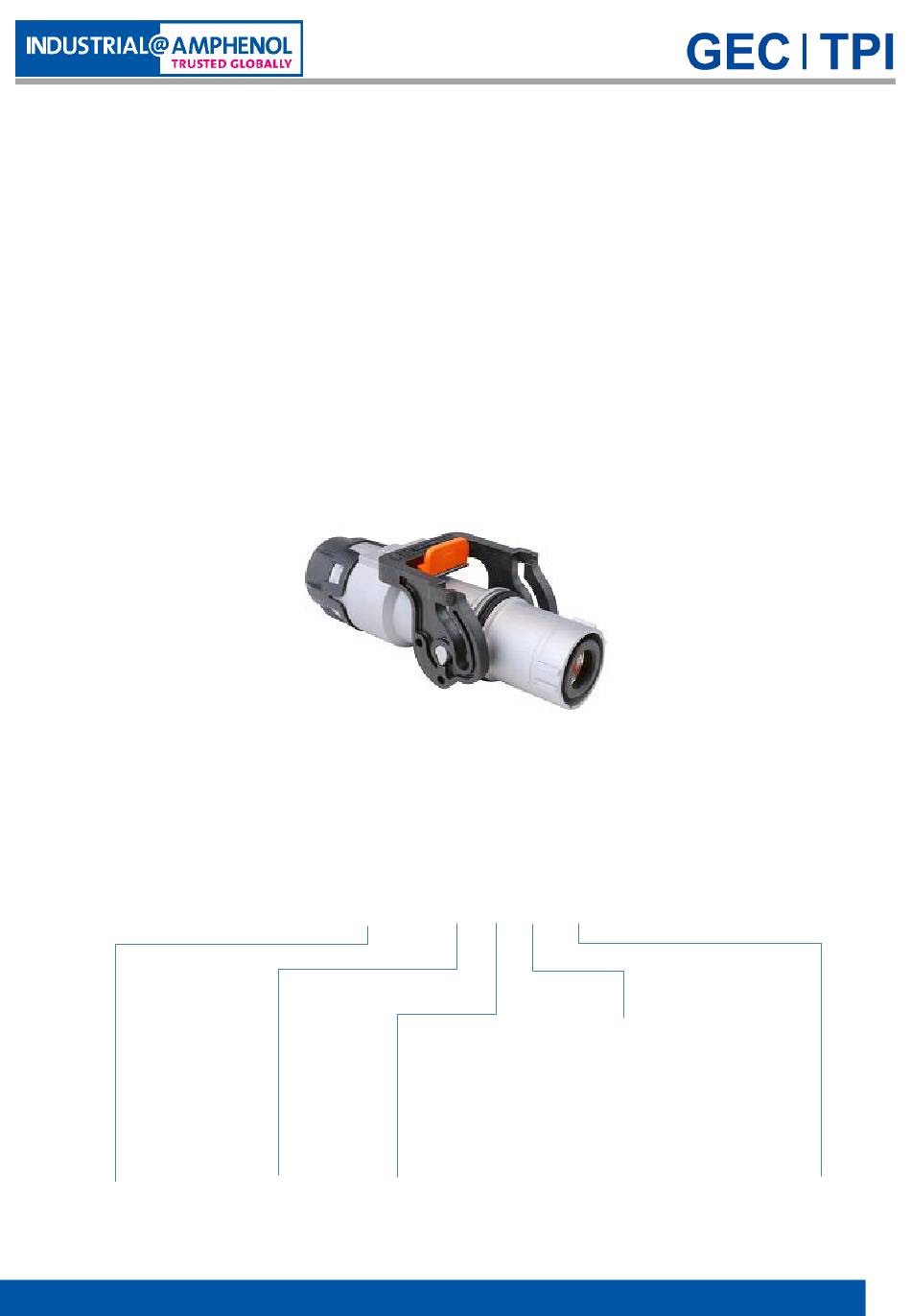

- Page 1 G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual For G70-1POS PowerLok 10mm G2 180D Plug Connector PL18(X)-30(X)-50-2-G70 线缆大小 高压互锁 键位 0：无 X 键 G2 Connector Cable Size 1：有 Y 键 U 键 V 键 线缆类型 HVIL W 键 0：NO cable T 键 1：WITH www.amphenol-gec.com...
-
Page 2: Part 1： Package Contents
G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual for G70 1POS PowerLok 10mm G2 180D Plug Connector 第一部分：包装清单 Part 1： Package contents ③ ② ① ④ ⑦ ⑧ ⑨ ⑥ ⑤ ⑩ ⑪ ① 屏蔽壳组件Shield shell assembly ×1 ② 带高压互锁端子的绝缘筒 Insulation sleeve with HVIL contact ×1 （非HVIL版本无高压互锁端子... -
Page 3: Part 2: Plug Assembly
G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual for G70 1POS PowerLok 10mm G2 180D Plug Connector 第二部分：插头组装 Part 2: Plug Assembly 步骤1：穿配件 Step1：Assemble the accessories 1-1 线缆准备 1-1 Cable preparation 表1：G70 线材规格 Table 1：G70 Cable size 连接器 导线截面积 线缆外径 Connector conductor area(mm²) Accepted cable OD (mm) 300/301 系列... - Page 4 G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual for G70 1POS PowerLok 10mm G2 180D Plug Connector 步骤3：压接铜环 Step 3: Crimping Copper Ring 3-1 将 ⑧内铜环从右端移动到屏蔽线下方，屏蔽线覆盖在铜环表面 3-1 Move the ⑧ inside copper ring from the right side to the side below the shield. The shield line is covered on the surface of the copper ring ⑧...
- Page 5 步骤4：取1pcs的 ③ R4 holder 自左端穿上线缆，并压接在其上(规格参照表4) Step 4: Take a ③ R4 holder, load it to the cable end on the left, then crimp(refer to table 4) Be sure the gap here is 2±0.5mm ③R4 holder 确保这里的间隙是1.5mm到2.5mm之间 Crimp cable here 此处压接线束 表4：端子与线缆压接压接规格&拉拔力要求...
- Page 6 G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual for G70 1POS PowerLok 10mm G2 180D Plug Connector 步骤7：取出②绝缘筒，按图示方向插入③ R4 holder中, 并使其触底 Step 7: Take a ② Insulation sleeve ,plug it to ③ R4 holder in direction as show in photo , and make it contact the bottom ②...
- Page 7 G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual for G70 1POS PowerLok 10mm G2 180D Plug Connector 步骤10： ②绝缘筒按图示方向插入到①屏蔽壳组件, 并使其触底，注意确认HVIL位置以及卡簧是否到位。 Step 10: Plug the ② Insulation sleeve into ①Shield shell assembly as shown in photo , and make it reach the bottom, take care to ensure HVIL in right place and pull back wire to ensure clamp spring in position . ②...
- Page 8 G70-单芯2代10mm直头组装式连接器安装说明 The Assembly manual for G70 1POS PowerLok 10mm G2 180D Plug Connector 12-3 测试说明: 警告:建议的电气测试及其参数应根据终端应用要求进行审查，以确保安全性并防止损坏其他部件。提供的参数 是基于PowerLok连接器和其峰值1000VDC额定。提供的测试参数可能超出电缆组件或设备上使用的其他部件/ 材料的限制。 12-3 Test note: caution: Recommended electrical tests and their parameters should be reviewed against end application requirements to ensure safety and to prevent damage to other components. Parameters provided are based on the PowerLok connectors and their peak 1000VDC rating.
- Page 9 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
