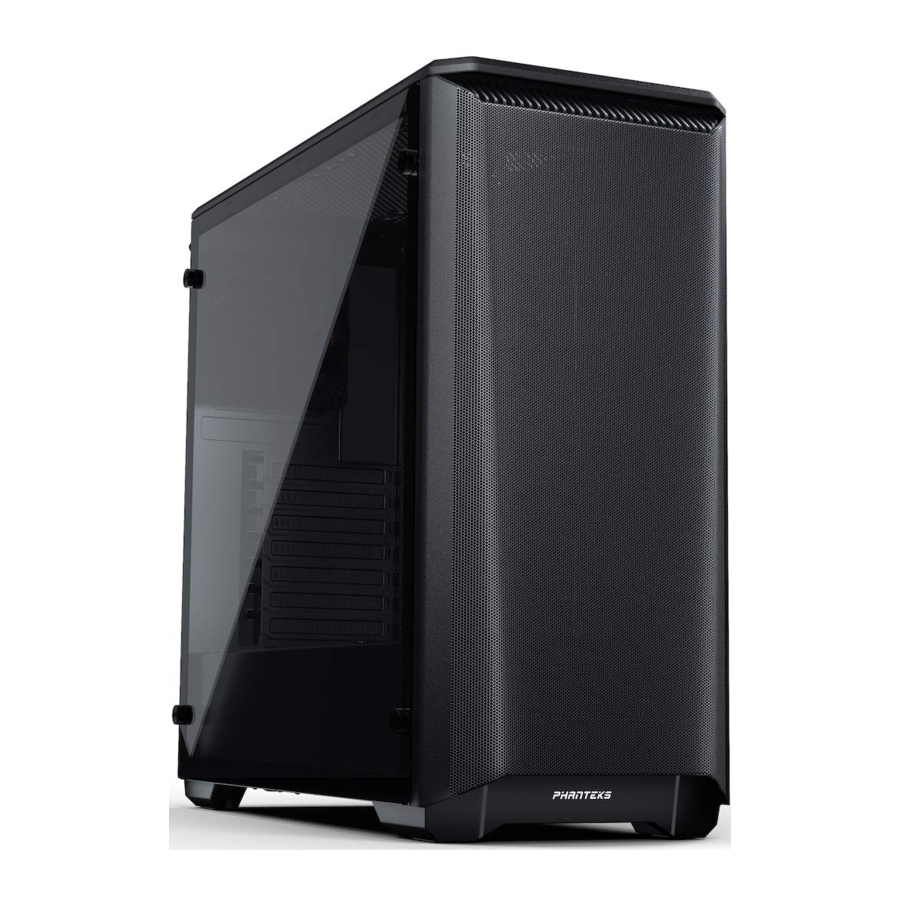

Phanteks Eclipse P400A / P400(S) Manual

CABLE CONNECTION

CONNECT TO D-RGB LIGHTING PRODUCTS (P400A _ D MODEL)

CONNECT TO RGB LIGHTING PRODUCTS (P400 (S) MODELS)

CONNECT TO THE MOTHERBOARD

CONNECT TO THE POWER SUPPLY

CONNECT TO THE 3 - PIN FANS

OPTIONAL UPGRADES

INTRODUCTION

Thank you for choosing Phanteks. Please take a moment to carefully go through the manual. Phanteks will not take responsibility for any damages incurred due to incorrect installation or usage of this product.

This manual is applicable for the following products:
PH-EC400ATG
PH-EC400ATG_D
PH-EC416PTG
PH-EC416PSTG

INCLUDED ACCESSORIES

PRODUCT OVERVIEW

1. Headphone
2. Microphone
3. USB 3.0
4. HDD LED
5. Power Button
6. Fan Control
7. Reset Button
8. RGB Control
9. D-RGB Mode
10. D-RGB Color

The 3-pin fan controller allows you to set any connected fans to low, medium or full speed.

There are three panels that can be removed from the P400 Chassis; the left side tempered glass panel, the right side panel and the front panel. Follow these steps below.

LIGHTING CONTROLS

Press and Hold to turn o the case controller to sync with the motherboard RGB or D-RGB software.

POWER SUPPLY

1. INSTALL THE POWER SUPPLY WITH 4 PSU SCREWS


2.5" SSD

1. INSTALL THE SSD DRIVE WITH 4 SSD SCREWS


3.5" HDD

1. INSTALL THE HDD DRIVE IN THE TOOLLES HDD TRAY AND SLIDE IT BACK INTO THE CHASSIS


The HDD Tray can also hold a 2.5" SSD
