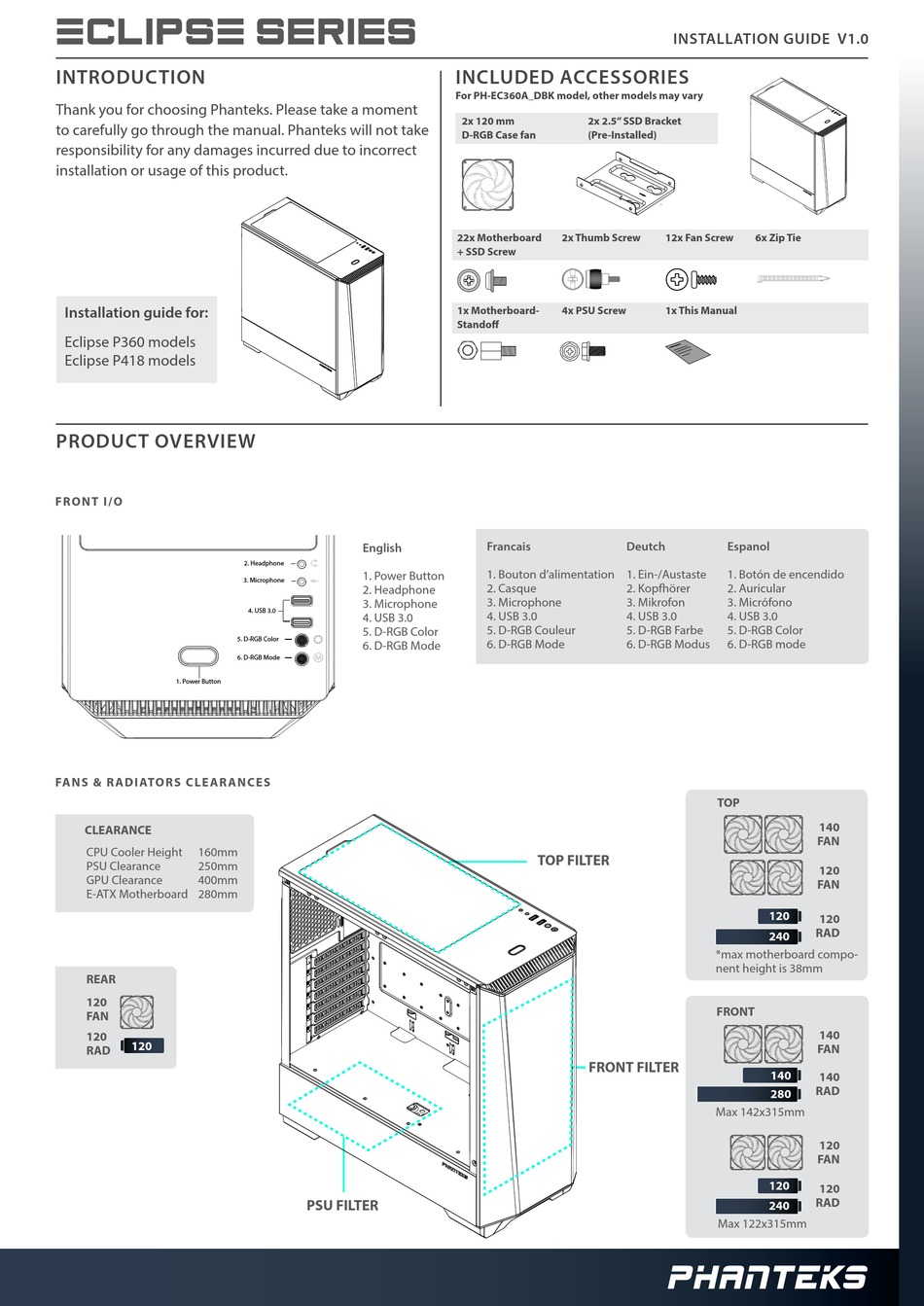

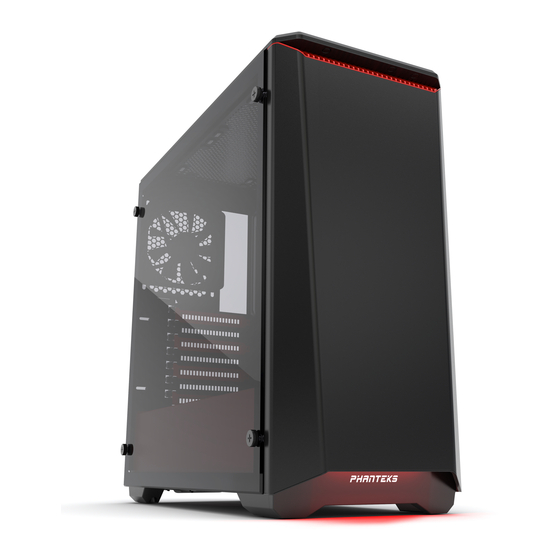

Phanteks Eclipse Series Installation Manual

ECLIPSE series
INTRODUCTION
Thank you for choosing Phanteks. Please take a moment
to carefully go through the manual. Phanteks will not take
responsibility for any damages incurred due to incorrect
installation or usage of this product.
Installation guide for:
Eclipse P360 models
Eclipse P418 models
PRODUCT OVERVIEW
FRO NT I / O
1. Power Button
FA N S & R A DI ATO R S C L E AR A NC E S
CLEARANCE
CPU Cooler Height 160mm
PSU Clearance 250mm
GPU Clearance 400mm
E-ATX Motherboard 280mm
REAR
120
FAN
120
120
RAD
English
2. Headphone
1. Power Button
3. Microphone
2. Headphone
3. Microphone
4. USB 3.0
4. USB 3.0
5. D-RGB Color
5. D-RGB Color
6. D-RGB Mode
6. D-RGB Mode
PSU FILTER
INCLUDED ACCESSORIES
For PH-EC360A_DBK model, other models may vary
2x 120 mm 2x 2.5" SSD Bracket
D-RGB Case fan (Pre-Installed)
22x Motherboard 2x Thumb Screw
+ SSD Screw
1x Motherboard- 4x PSU Screw
Standoff
Francais Deutch
1. Bouton d'alimentation 1. Ein-/Austaste
2. Casque 2. Kopfhörer
3. Microphone 3. Mikrofon
4. USB 3.0 4. USB 3.0
5. D-RGB Couleur 5. D-RGB Farbe
6. D-RGB Mode 6. D-RGB Modus
TOP FILTER
FRONT FILTER
INSTALLATION GUIDE V1.0
12x Fan Screw 6x Zip Tie
1x This Manual
Espanol
1. Botón de encendido
2. Auricular
3. Micrófono
4. USB 3.0
5. D-RGB Color
6. D-RGB mode
TOP
140
FAN
120
FAN
120
120
RAD
240
*max motherboard compo-
nent height is 38mm
FRONT
140
FAN
140
140
RAD
280
Max 142x315mm
120
FAN
120
120
RAD
240
Max 122x315mm
