  • Page 1 All manuals and user guides at all-guides.com U S E R M A N U A L V 1 . 0...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com Thank you f o r c h o o s i n g...

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS 1. WHAT ’S INSIDE? Introduction Optional Upgrades: Specifications Installing A Vertical GPU Exploded View Installing A Dual System Accessories 3. SUPPORT 2. CHOOSE YOUR SE TUP Contact Us Configure your P600S Warranty Get Started Installing the Motherboard...

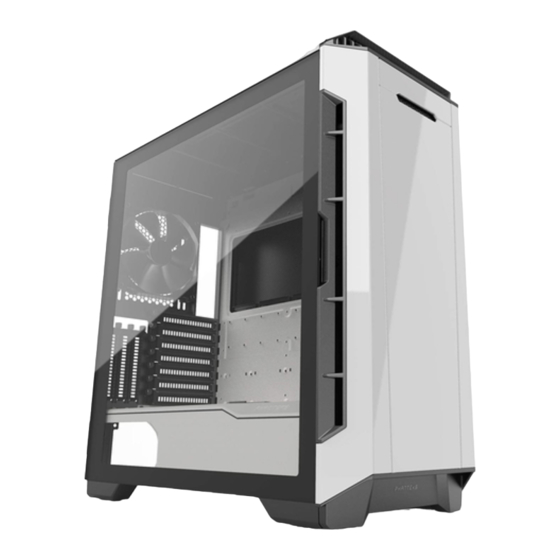

  • Page 5: Introduction

    Phanteks. Achieving both a quiet system and a high airflow configuration. The durable fabric, carefully selected by Phanteks, results in a much lower airflow resistance compared to standard mesh panels. Keeping air speed higher and noise levels lower.

  • Page 6: Specifications

    (3.74 in) Front Radiatior Clearance PCI slots Top Radiator Clearance 65 mm (2.56 in) Internal 3.5” (4 included) SUPPORT Internal 2.5” (3 included) support@phanteks.com Contact (International) 120 MM 140 MM support@phanteksusa.com Contact (America) 5 Years* Front Warranty 3x (2 installed) Rear...

  • Page 7: Exploded View

    All manuals and user guides at all-guides.com EXPLOADED VIEW 1. Chassis 2. Front Panel 3. Top Panel 4. Side Panels 5. Radiator Bracket 6. PSU Bracket 7. Front Silent Cover 8. Top Silent Cover 9. Airflow Cover 10. Front Dust Filter 11.

  • Page 8: Accessories

    Toolbox M3x5 mm Fan screw Motherboard Motherboard / Standoff + tool SSD screw GPU Anti-Sag Bracket 6x Zip Tie 150mm Phanteks Logo Badge 6-32x6 mm 6-32x6 mm 6-32x5 mm 6-32x9 mm Riser Cable Hex screw Thumb screw Case screw HDD screw...

  • Page 9: Configure Your P600S

    All manuals and user guides at all-guides.com CONFIGURE YOUR P600S The P600S has the most versatile chassis design, providing you with a myriad of options. With so many possibilities to pick from, you can use this overview to choose and plan the best configuration for your build. AIR COOLING- P13.
  • Page 10 By removing the Silent Covers the air intake and outtake surface area is increased dramatically, allowing a much higher cooling capacity. Heavy and sound dampening panels reduce noise levels and improve acoustics. High performance fabric from Phanteks enhances the cooling performance while lowering noise levels.

  • Page 11: Get Started

    All manuals and user guides at all-guides.com GET STARTED PREPARATIONS The P600S case is designed to support installation in a standing position. Don’t turn on the power to your system until installation is complete. Discharge your body’s static electric charge by touching a grounded surface before performing any hardware procedure.
  • Page 12 All manuals and user guides at all-guides.com GET STARTED R E M O V I N G S I D E PA N E L Open the side panel more than 90 degrees and lift it up near the hinges.

  • Page 13: Installing The Motherboard

    All manuals and user guides at all-guides.com INSTALLING MOTHERBOARD Use the motherboard screws from the toolbox to install your motherboard on the REQUIRES: pre-installed standoffs. STANDOFF POSITIONING AT X / E-AT X (Pre-installed) M icro AT X (install extra standoffs) Some motherboards require installation or repositioning of the standoffs.

  • Page 14: Installing The Power Supply

    All manuals and user guides at all-guides.com INSTALLING POWER SUPPLY The power supply can be installed by removing the PSU bracket on the rear of the REQUIRES: case chassis. LOOSEN: Connect all needed cables to the power supply before installing it in the case.

  • Page 15: Installing Fans

    All manuals and user guides at all-guides.com INSTALLING FANS Configure your airflow-path with this overview. All fan locations support both 120mm and REQUIRES: 140mm fans. Install the magnetic Airflow Cover to prevent air from re-circulating when you install 2x 120 mm or 2x 140 mm fans. FRONT 1 4 0 1 2 0...
  • Page 16 The Fan Hub will automatically translate the signal to all connected WHITE 3-/4-PIN 3- and 4-pin fans. Check UNIVERSAL WWW.PHANTEKS.COM/ for more technical details. Choosing a PWM output provides the most customization options in the motherboard settings. Expand the number of fans with splitter cables up to a maximum of 4A total power.

  • Page 17: Installing Drives

    All manuals and user guides at all-guides.com INSTALLING DRIVES 2.5” SSD INSTALL ATION REQUIRES: Install the SSD in to the SSD brackets before placing them in the chassis. Make sure to install the screws into the SSD once it rests in the SSD bracket to secure its position.
  • Page 18 All manuals and user guides at all-guides.com INSTALLING DRIVES 3.5” HDD INSTALL ATION REQUIRES: 4x Phanteks Stackable 3.5” HDD Brackets are included. Additional brackets are sold separately (PH-HDDKT_03). The HDD bracket can also house a 2.5” SSD instead of a 3.5” HDD.
  • Page 19 All manuals and user guides at all-guides.com MAIN COMPARTMENT REQUIRES: Up to 6 Stackable HDD Brackets can be installed in the main compartment. R E M O V E T H E C A B L E CO V E R ( S ) T O M O U N T T H E ( S I N G L E / S TAC K E D ) H D D R E V E A L T H E H D D M O U N T S B R AC K E T S I N P O S I T I O N...

  • Page 20: Installing Water Cooling

    All manuals and user guides at all-guides.com INSTALLING WATER COOLING REQUIRES: Use the Airflow Cover to prevent hot air from 1 2 0 FORM FACTOR 1 4 0 FORM FACTOR circulating. FRONT REAR 1 2 0 FORM FACTOR 1 2 0 FORM FACTOR 1 4 0 FORM FACTOR 1 4 0 FORM FACTOR...
  • Page 21 Radiator thickness. Installing a fill port in the top radiator bracket and/or a drain port in the front of the case makes water cooling maintenance much easier. The port diameters are 20.5mm. Phanteks Passthrough fitting: PH-PTF_BK/CR_G1/4 Phanteks Ball-Valve fitting: PH-BVA_BK/CR_G1/4...
  • Page 22 All manuals and user guides at all-guides.com INSTALLING WATER COOLING Reservoir mounting points are accessed by removing the Cable Covers. 2 6 m m REMOVE: OPTIONAL PUMP BR ACKE T The universal Pump Bracket can be installed in the bottom compartment using 4 case screws.

  • Page 23: Installing Gpu Anti-Sag Bracket

    All manuals and user guides at all-guides.com INSTALLING GPU ANTI-SAG BRACKET To prevent your GPU from tipping down you can install the GPU Anti-Sag Bracket. REQUIRES: INSTALLING GPU ANTI-SAG BR ACKE T INSTALL ALL GPU AND PCI C ARDS PL ACE THE GPU ANTI-SAG BR ACKET I N S E R T T H E T H U M B S C R E W S W I T H O U T T I G H T E N I N G T H E M P R E S S D O W N A N D LO C K T H E T H U M B S C R E W S...

  • Page 24: Connecting Front I/O

    All manuals and user guides at all-guides.com CONNECTING FRONT I/O Please consult the motherboard manual for additional instructions. Please make sure to consult your motherboard manual before connecting your front I/O. TO MOTHERBOARD POWER BUT TON Power SW POWER LED Power LED 2X USB 3.0 USB 3.0...

  • Page 25: Cable Management

    All manuals and user guides at all-guides.com CABLE MANAGEMENT Use the double-loop Velcro ties to route your cables. Zip ties are included in the accessory bag to manage any excess cables. Use the double-loop Velcro ties to split the cables into 2 channels.

  • Page 26: Matienance

    All manuals and user guides at all-guides.com MAINTENANCE The P600S is equipped with a front and bottom PSU filter. We recommend to clean these filters every month to keep your cooling performance optimized. PSU DUSTFILTER FRONT DUSTFILTER If cleaning the dust filters with water, make sure to properly dry them before placing them back.
  • Page 27 There is no need to remove the panels from the case. The high-performance fabric from Phanteks is made from durable nylon to resist wear- and-tear for a long period of time.

  • Page 28: Optional Upgrades

    All manuals and user guides at all-guides.com OPTIONAL UPGRADES 3.5” STACK ABLE HDD BR ACKE TS PH-HDDKT_03 For 3.5” or 2.5” Drive Upgrade up to 6x additional 3,5” HDDs with the optional HDD brackets. Contains 2x Stackable HDD Brackets. Page 15 HIGH STATIC PRESSURE MP FAN PH-F120MP / PH-F140MP More fans can be installed in the P600S and...
  • Page 29 All manuals and user guides at all-guides.com 220mm Slimline PCI- e x16 R iser Cable 90° PH-CBRS_SL22 220mm Premium Shielded H igh Sp eed PCI- e x16 R iser Cable 90° PH-CBRS_PR22 220mm Flatline PCI- e x16 R iser Cable 90° PH-CBRS_FL22 With the optional Riser Cable you can place any 2-slot or 3-slot GPU vertically.* Page 27...

  • Page 30: Installing A Vertical Gpu

    All manuals and user guides at all-guides.com INSTALLING A VERTICAL GPU I N S TA L L R I S E R C A B L E W I T H 2 X R I S E R C A B L E S C R E W S REQUIRES: Riser Cable sold separately (PH-CBRS_SL22)

  • Page 31: Installing A Dual System

    I N S TA L L YO U R I T X M OT H E R B O A R D O N T H E B R AC K E T The Revolt X power supply from Phanteks is U S I N G T H E I N C LU D E D M OT H E R B O A R D S C R E W S required for this configuration.
  • Page 32 All manuals and user guides at all-guides.com INSTALLING A DUAL SYSTEM To minimize cable-clutter we recommend the following cable routing for the System 2 cables. S YS T E M 2 C A B L E S R I S E R C A B L E C P U C A B L E M OT H E R B O A R D C A B L E The Revolt X includes 2 different 24-pin Motherboard...
  • Page 33 All manuals and user guides at all-guides.com I N S TA L L R I S E R C A B L E O N T H E V E R T I C A L G P U M O U N T REQUIRES: Depending on your needs, it’s not always necessary to install a GPU for your second...

  • Page 34: Contact Us

    All manuals and user guides at all-guides.com CONTACT US As a Phanteks customer, you are priority number one. We have a dedicated team of employees across the globe working hard every day to make sure we deliver the superior experience you deserve. We are here for you. If you have a question or a concern about our products, we have numerous ways you can reach us.

  • Page 35: Warranty

    All manuals and user guides at all-guides.com WARRANTY PHANTEKS warrants its products to be free from defects in material and workmanship during the warranty period; when given normal, proper and intended usage. If a product proves to be defective in material or workmanship during the warranty period, PHANTEKS will, at its sole option, repair or replace the product with same product or similar product.
  • Page 36 All manuals and user guides at all-guides.com...
  • Page 37 All manuals and user guides at all-guides.com...
