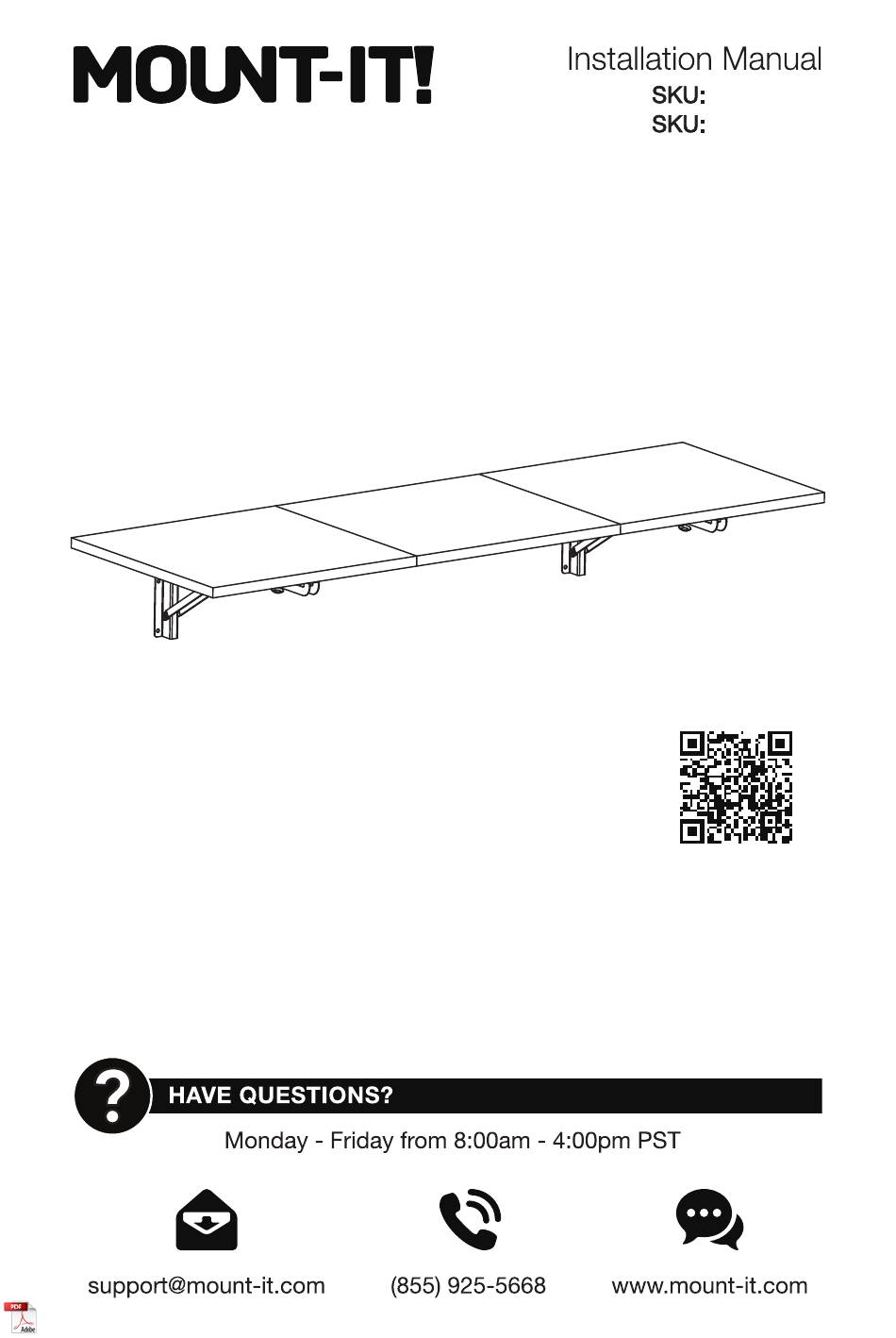

- Page 1 MI-7993 MI-7993W Please scan this QR code to visit the product page. FOLDING WALL-MOUNTED SHELF...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Left and Right Shelves Middle Shelf Folding Arm Mounts Shelf Connectors Bolts Lag Screws Concrete Anchors Screws Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 3 Unfold the Arms Step 3a Concrete/Brick Installation: Attach the Arms to the Shelf • Unfold the Folding Arm Mounts (#C) until the two ends are fully extended and latch into place at a 90 degree angle. Note: Follow this step for Concrete/Brick wall installation.
- Page 4 Step 4 Step 3b Concrete/Brick Installation Option Step 4a Wood Stud Installation: Attach the Arms to the Shelf • Hold the shelf to the wall in the desired mounting location and mark the center of the mounting holes with a pencil (6 per arm.) •...
- Page 5 Step 5 Step 4b Wood Stud Installation Option Folding the Shelf • Hold the shelf to the wall in the desired mounting location and mark the center of the mounting holes • To fold the shelf down against the wall, squeeze the handles on the underside of each arm up until the with a pencil (3 per arm, on one side of each arm only.) latches release, then press the shelf slowly down until it stops.
