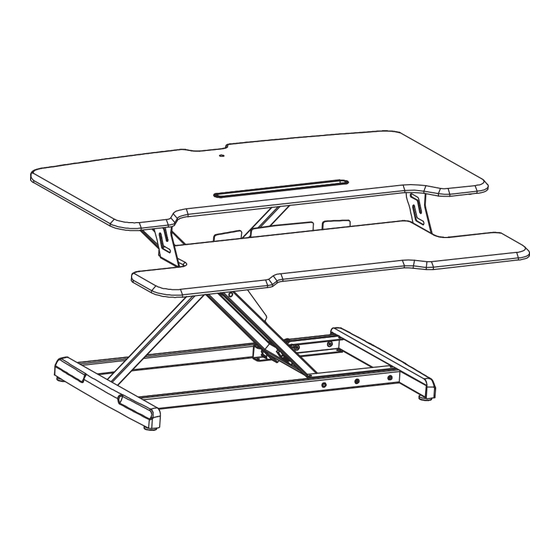

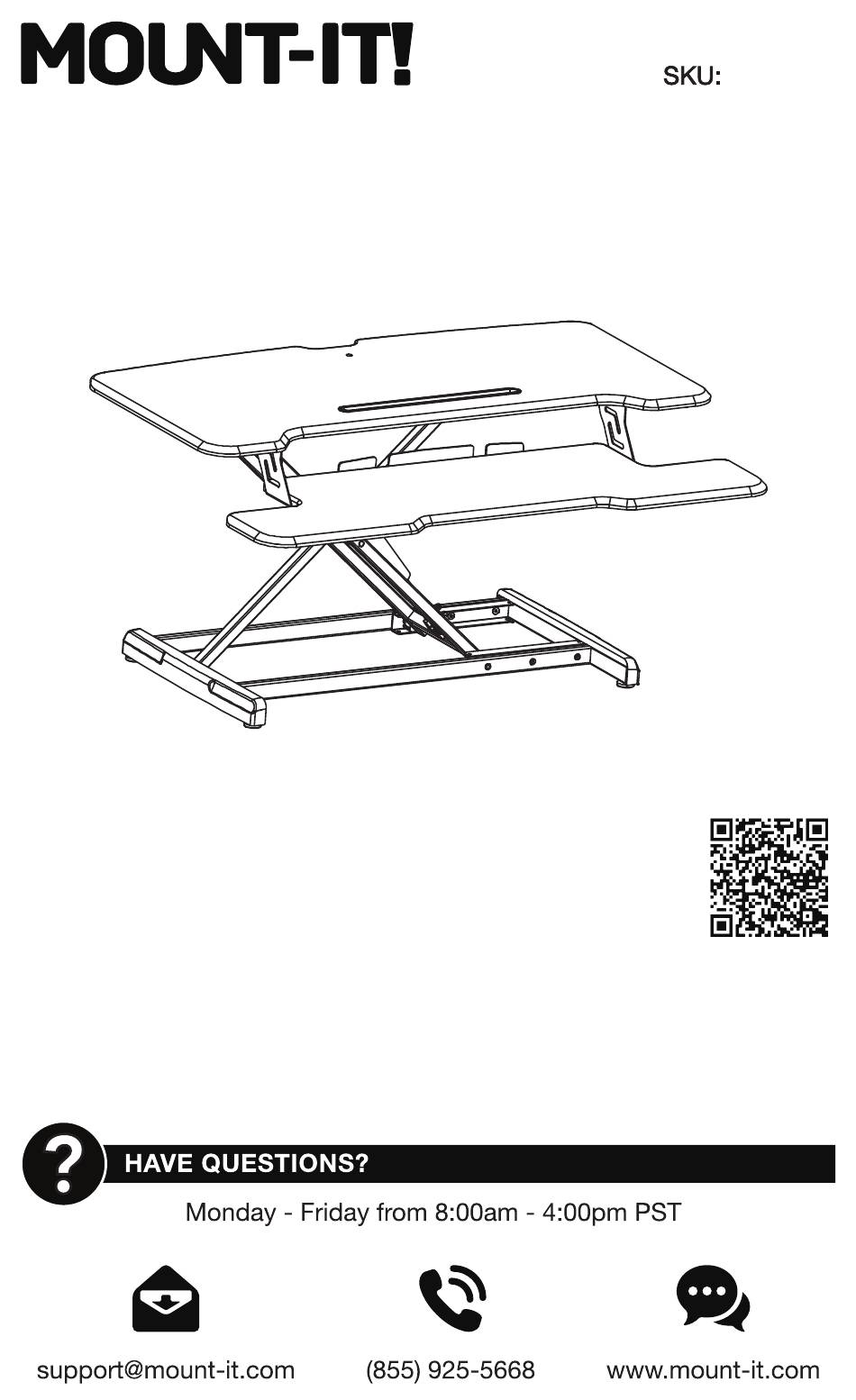

- Page 1 User Manual MI-15005 Please scan this QR code to visit the product page 38 INCH WIDE STANDING DESK CONVERTER...
- Page 2 Thank you for choosing Mount-It Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. •...
-
Page 3: Package Contents
PACKAGE CONTENTS DESK CONVERTER KEYBOARD TRAY KEYBOARD TRAY BRACKETS F (x2) G (x2) M5x12 BOLT M5x12 BOLT RUBBER PADS CABLE TIES DIMENSIONS & WEIGHT CAPACITY Total standing desk converter weight capacity is 33lbs* (desktop + keyboard tray.) Keyboard tray weight capacity 5lbs max. *Maximum weight capacity is 45lbs. - Page 4 Step 1 Remove the Desk Converter from the Box Remove the Desk Converter (#A) from the packaging. Note: Two person lift recommended. Step 2 Place the Desk Converter on a Level Surface Place the desk converter on a level surface (such as a desk, table, or the floor.) Then,cut the cable tie.
- Page 5 Step 3 Raise the Desk Converter Squeeze the lever on the side of the Desk Converter and raise it to its highest position. Step 4 Attach the Keyboard Brackets Attach the Keyboard Tray Brackets (#C) to the bolt holes on the underside of the Keyboard Tray (#B) as shown, using the Bolts (#D).
- Page 6 Step 5 Attach the Keyboard Tray Turn the desk converter upside down. Attach the keyboard tray bracket (#C) to the desk converter (#A) using the bolts (#E). Step 6 Place Items on the Desk Converter Place all monitors, laptops, or other equipment on the desk. Ensure none of the equipment is hanging off the edge or otherwise unstable/unbalanced.
- Page 7 Step 7 Worksurface Cable Management (Optional Step) Use the provided Cable Ties (#G) to collect cables for all peripheral devices on the worksurface. Ensure that enough slack is left in the cables so that they do not pull any devices when raising or lowering the desk.
- Page 8 Warnings Keep all monitors, laptops and other Raise the work surface slowly. Raising equipment fully on the work surface at all the work surface too quickly may cause times. Allowing any part of these to hang monitors, laptops and other equipment to off the edge may result in property fall resulting in property damage and/or damage and/or personal injury.
