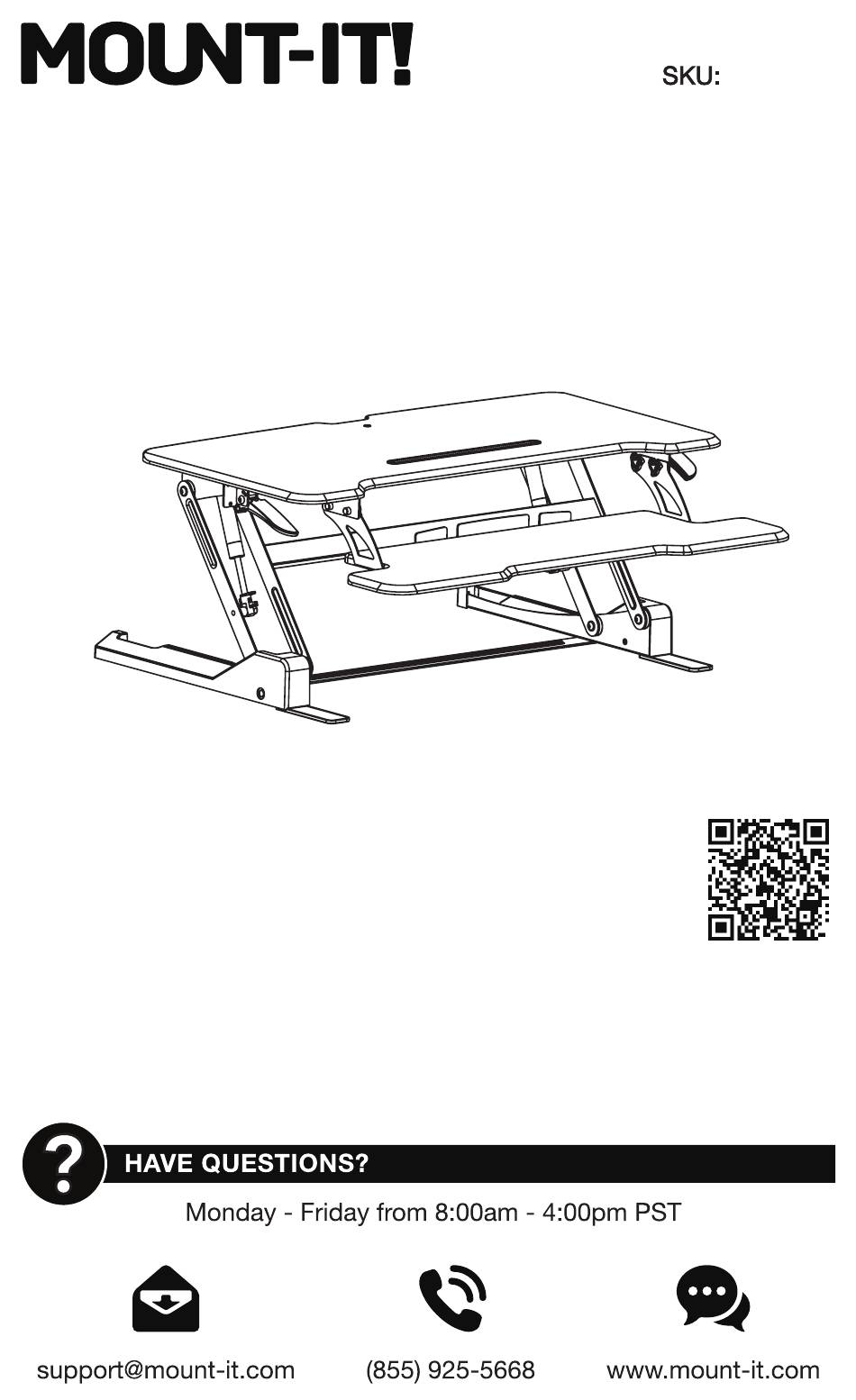

- Page 1 User Manual MI-15005 MI-15006 MI-15007 MI-15009 Please scan this QR code to visit the product page 38 INCH WIDE STANDING DESK CONVERTER...
- Page 2 Thank you for choosing Mount-It Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. •...
-
Page 3: Package Contents
PACKAGE CONTENTS DESK CONVERTER KEYBOARD TRAY KEYBOARD TRAY BRACKETS STABILIZER FEET M5x10 BOLT HEX WRENCH H (x2) CABLE TIES CABLE MANAGEMENT CLIP DIMENSIONS & WEIGHT CAPACITY Total standing desk converter weight capacity is 33lbs* (desktop + keyboard tray.) Keyboard tray weight capacity 5lbs max. *Maximum weight capacity is 45lbs. - Page 4 Step 1 Remove the Desk Converter from the Box Remove the Desk Converter (#A) from the packaging. Note: Two person lift recommended. Step 2 Place the Desk Converter on a Level Surface Place the desk converter on a level surface (such as a desk, table, or the floor.) Install the Extended Feet (#D) to the base of the desk converter using Hex Wrench (#F) and M5x10 Bolt (#E).
- Page 5 Step 3 Raise the Desk Converter Squeeze the lever on the side of the Desk Converter and raise it to its highest position. Step 4 Attach the Keyboard Brackets Attach the Keyboard Tray Brackets (#C) to the bolt holes on the underside of the Keyboard Tray (#B) as shown, using the Bolts (#E).
- Page 6 Step 5 Attach the Keyboard Tray 1.Attach the Keyboard Tray by sliding it beneath the bolts shown in magnification bubble 1. Ensure the bolts reach the end of the channels on the bracket, by lifting the tray up unto the bolts and pushing it forward.
- Page 7 Step 7 Keyboard Tray Cable Management (Optional Step) Route the cables according to your device placement to determine the best location for the Cable Management Clip. Remove the cover from the adhesive on the Cable Management Clip (#G) then attach it to the underside of the Desk Converter to manage the cables for the mouse, keyboard or other accessories.
- Page 8 Warnings Keep all monitors, laptops and other Raise the work surface slowly. Raising equipment fully on the work surface at all the work surface too quickly may cause times. Allowing any part of these to hang monitors, laptops and other equipment to off the edge may result in property fall resulting in property damage and/or damage and/or personal injury.
