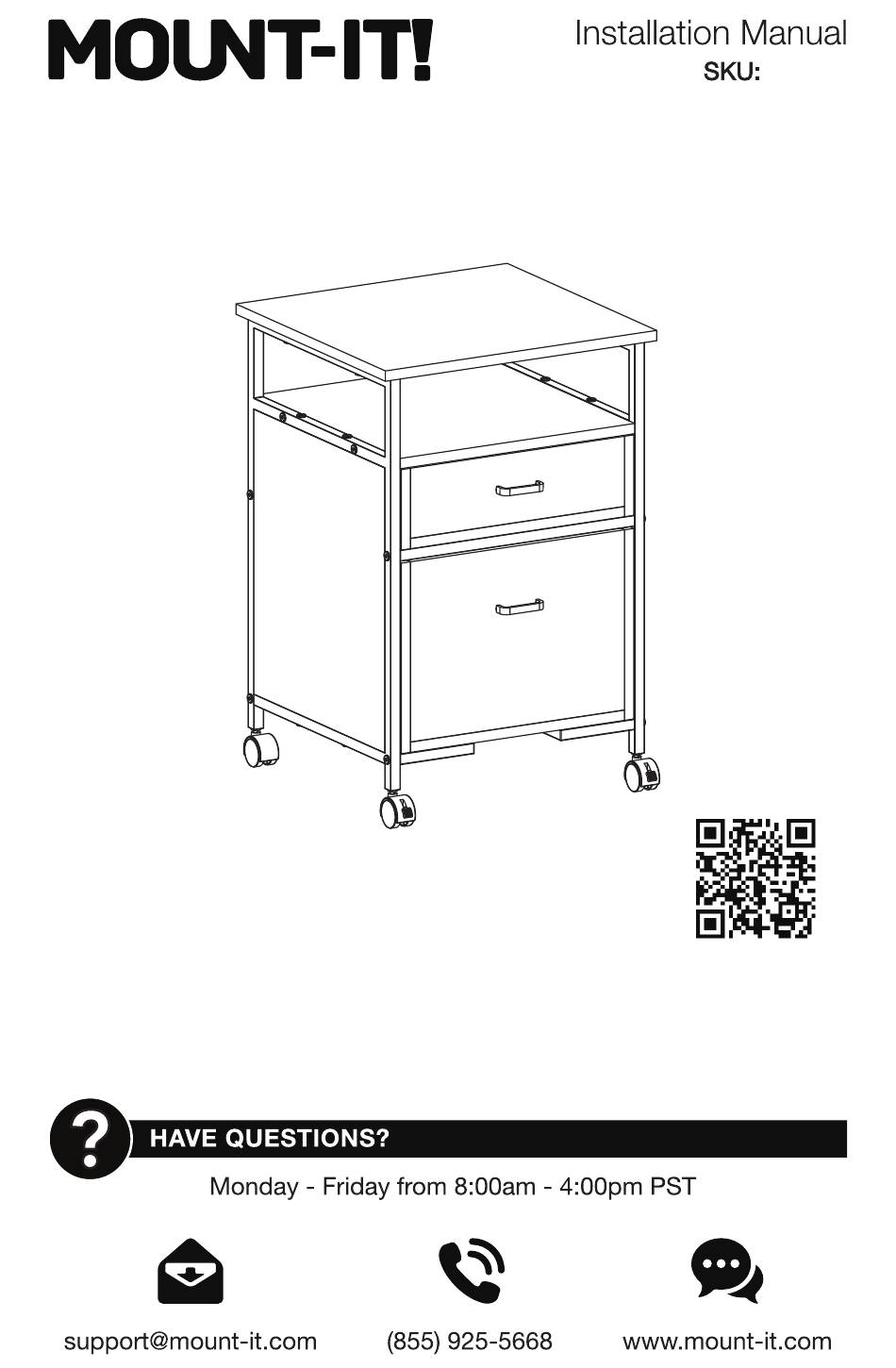

- Page 1 MI-943 Please scan this QR code to visit the product page. MOBILE CABINET...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Side Frame Upper DrawerShelf Lower Drawer Shelf Cabinet top Top Shelf Drawer Bottoms Mount-It! Large Drawer Sides Large Drawer Back Large Drawer Front Cabinet Sides Small Drawer Sides Small Drawer Front Small Drawer Back File Folder Rails Locking...
- Page 3 Step 1 Step 2 Assemble the Cabinet Sides Connect the Sides • Lay out the 2 Side Frames (#A) on a flat surface and insert Cabinet Sides (#J) into the middle of each • Connect the 2 sides together using Upper and Lower Drawer Shelves (#B, and #C) and Bolts (#T) in frame.
- Page 4 Step 3 Step 4 Install the Cabinet Top Install the Shelf • Install the Top Shelf (#E) in the location shown here and secure it in place using Bolts (#T). • Lay the Cabinet Top (#D) upside down on a flat and smooth surface. Carefully place the cabinet frame on the Cabinet Top so that the holes are aligned, then secure them together using Bolts (#T).
- Page 5 Step 6 Step 7 Assemble the Large Drawer Connect the Ends of the Drawer • Screw one end of the File Folder Rails (#N) into the two threaded holes on the large side of the Large • Install the Handle (#Q) to the outside of the Large Drawer Front (#I) using Bolts (#R). Drawer Back (#H).
- Page 6 Step 8 Step 9 Finish Assembling the Large Drawer Assemble the Small Drawer • Attach the Drawer Bottom (#F) to the bottom of the drawer using Bolts (#S). • Connect the Handle (#Q) to the Small Drawer Front (#L) using Bolts (#R). •...
