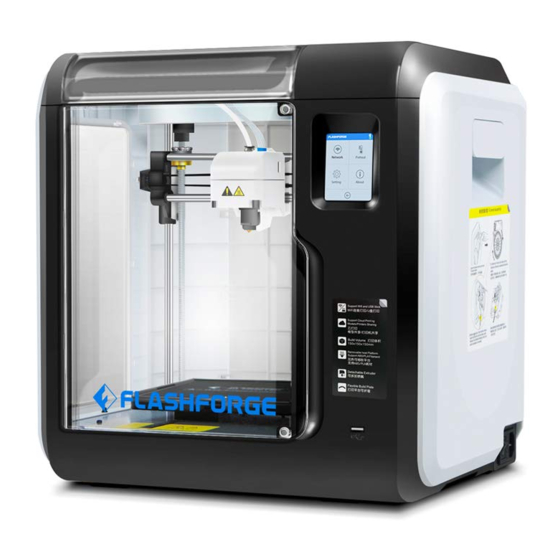

Flashforge Adventurer 3 User Manual

Flashforge Adventurer 3 User Manual

Hide thumbs Also See for Adventurer 3:

Advertisement

Quick Links

Download this manual
SZ16-ZN/EN-A05
Adventurer 3
Przewodnik
użytkownika
Instrukcja dotyczy tylko drukarki 3D FlashForge Adventurer 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the Adventurer 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Flashforge Adventurer 3

Summary of Contents for Flashforge Adventurer 3

  • Page 1 SZ16-ZN/EN-A05 Adventurer 3 Przewodnik użytkownika Instrukcja dotyczy tylko drukarki 3D FlashForge Adventurer 3...
  • Page 3 Spis treści Wstęp Informacje Warunki Rozdział 1: Adventurer 3 1.1 - Lista elementów 1.2 - Specyfikacja Rozdział 2: Użytkowanie 2.1 - Odpakowanie 2.2 - Akcesoria 2.3 - Interfejs 2.3.1 - Druk 2.3.2 - Narzędzia 2.3.2.1 - Sieć 2.3.2.2 - Grzanie wstępne 2.3.2.3 - Ustawienie...
  • Page 4 3D FlashForge za ich niestrudzone wysiłki i szczerą pomoc. Ta instrukcja obsługi jest przeznaczona dla użytkowników, którzy chcą rozpocząć swoją podróż z drukarką FlashForge Adventurer 3. Nawet jeśli jesteś zaznajomiony z wcześniejszymi maszynami FlashForge lub technologią druku 3D, nadal zalecamy, abyś przeczytał ten przewodnik, ponieważ...
  • Page 5 Adventurer 3 należy zawsze używać z prawidłowo uziemionym gniazdkiem. Nie należy przerabiać wtyczki. Nie używaj drukarki w wilgotnych lub mokrych miejscach. Nie wystawiaj Adventurer 3 na działanie palącego słońca. W przypadku uszkodzenia urządzenia należy skorzystać z zasilacza dostarczonego przez FlashForge.
  • Page 6 35cm. Device storage temperature: RT 0-40℃ Filament Requirements Do not abuse the filament. Please make sure you use the FlashForge filament or the filament from the brands accepted by FlashForge. Nozzle clogging and damage may be caused by non-FlashForge filament due to inappropriate material properties.
  • Page 7 Terms The surface on which the Adventurer 3 builds an object. Build Plate The black tape that covers Adventurer 3’s build plate so that Build Tape the object can stick to the build plate well. The three dimensional amount of space that an object will use once it is completed.
  • Page 8 Chapter 1: About Adventurer 3 1.1 Components Introduce 1. Filament guide tube 2. Filament guide tube joint 3. Extruder base 4.Cooling Fan 5. Removable nozzle 6. Extruder cables 7. Clip 8. Led light 9. Air guide 10. Front door 11.Y-Axis sliding slot 12.Platform base...
  • Page 9 1.2 Reference Name Adventurer 3 Number of Extruder 1, Removable Fused Filament Fabrication (FFF) Print Technology Screen Size 2.8" color IPS Touch Screen Build Volume 150×150×150mm Layer Resolution 0.1-0.4mm Build Accuracy ±0.2mm Positioning Accuracy Z axis 0.0025mm; XY axis 0.011mm 1.75mm (±0.07mm)
  • Page 10 Chapter 2: Operating 2.1 Unpacking The People's The People's Insuranc e Compan Insuranc e Compan y of China y of China KEEP DRY KEEP DRY HANDL E HAND LE WITH CARE FRAGI LE WITH CARE FRAGI LE FR AG HA ND CA RE WI TH DR Y...
  • Page 11 5. Plug the power cable into the input on the back and turn on the power switch, the touch screen is turned on. Power Switch X: 20.00 Y: 45.00 Z: 36.00 Language Move Camera Status Calibration Home FilamentCheck < < <...
  • Page 12 Please refer to FlashForge official website www.flashforge.com to download the newest User's Guide, Software and Instruction Videos. (Support-Support Center-Select a Product) 本手册仅适用于闪铸科技 Adventurer3 3D打印机 This guide is only applicable to FLASHFORGE Adventurer3 3D printer User Guide Screwdriver Unclogging Pin Tool...
  • Page 13 2.3 Interface Menus Intrduction 2.3.1 Build 6.62GB Read the print file from: Build The local memory card The USB stick Not Available Tools The Cloud No job Filament Back: Back to upper interface 1 . Tap [Print]. 2 . Choose the read path of the print file File list. Select all Ship-PLA.gx Ship-PLA.gx...
  • Page 14 20mm_Box-P... File details: Including file picture, time needed, 0 10 filament needed. Build: To begin printing the file. Copy: To copy the files to the local memory card from the USB stick. Delete: To delete the print file. Print interface Cancel: To cancel the print job.
  • Page 15 Network: To connect printer to your PC or internet. Preheat: To preheat the extruder and build plate. Setting: To implement relevant function setups. About: Information about the printer. 2.3.2.1 Network WiFi WiFi Flashforge WiFi Hotspot Choose a network ChinaNet-AnCr TP-LINK_EDC2 ，...
  • Page 16 Hotspot Setup WLan hotspot WLan hotspot SSID: WiFi Hotspot SSID: Password: Password: Setup hotspot Cloud Ethernet Save To set your printer as a WLAN hotspot. Turn on/off the WLAN hotspot. Hotspot setting: To set the hotspot name and password. Input hotspot name with numbers, characters and symbols.
  • Page 17 About Cloud Ethernet FlashCloud PolarCloud Account: Printer Name: Flashforge PIN： Registration Code: ABCDEF Save 1. Turn on the WiFi or Ethernet connection, connect the printer to internet successfully. 2. Tap[Tools]-Tap[Network]-Tap[Cloud] on the printer; 3. Turn on the Cloud Connection function;...
  • Page 18 2.3.2.2 Preheat setting Extruder ℃ Network Preheat Platform ℃ Setting About Start ON/OFF: Turn ON/OFF the extruder or platform preheat; symbol, you could set preheat temperature; Long press symbol, set preheat temperature rapidly; Extruder/Platform preheat interface Extruder Extruder /235℃ ℃ Platform /100℃...
  • Page 19 2.3.2.3 Setting Network Preheat Language Move Camera Status Setting About Calibration Home FilamentCheck < < < < 1/ 3 2 / 3 Setting interface Status Language Calibration Buzzer FactoryReset Home Move Camera FilamentCheck Buzzer Update FactoryReset Update < < 3/ 3 Status ℃...
  • Page 20 Language Language Status Calibration Home < < < < < < 1/ 3 Choose the target language. Calibration Click the arrow to adjust the To calibrate the initial distance nozzle so that it just touches between extruderand platform. the platform After homing completed，slide 0.00 Language...
  • Page 21 Manual: To manually adjust the X: 20.00 Y: 45.00 Z: 36.00 positions of extruder and build plate. Move Camera Extruder moves to the right; Extruder moves to the left; Build plate moves to the front; FilamentCheck Build plate moves to the back; <...
  • Page 22 Factory Setting: Delete all data in internal memory, return the printer to factory setting. Buzzer: To turn on/off the buzzer. Update: To upgrade the newest firmware. 2.3.2.4 About: Machine Type: Firmware Version: WiFi MAC: v1.03-1.1 Adventurer 3 02:00:00:00:11:66 Build Volume: Serial No: 150 x 150 x 150 123456 RegisterCode: Usage counter:...
  • Page 23 2.3.3 Filament /235℃ /235℃ /235℃ Load Heating extruder... Preheat completed. Press ok when new color appears Begin loading. Change Cancel Load • The extruder is heated up to 220℃. • After heat completed, insert the filament into the extruder at an upright angle until some resistance is sensed(as the filament is pushed through the feeding wheel).
  • Page 24 2.4 Print Plug the power cable into the input on the right side and turn on the power switch, the touch screen is turned on. Power Switch 2.4.1 Load Filament 1. Open the filament cover, insert the filament into the filament intake, push filament into the feeding wheel until some resistance is sensed.
  • Page 25 /235℃ Build Load Heating extruder... Tools Change Filament Cancel 2. Tap [Filament]--Tap [Load]--After Load completed--Tap [OK] /235℃ /235℃ Preheat completed, Press ok when new color appears Begin loading... 3. Load completed when you see filament come out of extruder, Tap [OK]. Put the spool of filament on the spool holder, close the filament cover.
  • Page 26 2.4.2 Model File Transfer After generating the Gcode file, you can transfer it to your Adventurer 3 with different network methods. If use USB stick to print, please insert your USB stick with target .g/.gx file to your Adventurer 3, there will be no need to set new network.
  • Page 27 4. In the pop up dialog box, the connection mode selects Wi-Fi, and fill in the IP port column with the IP address of the printer. Query IP address clicking [tools] - [about], turn to next page, you can see the IP address. Input completion and click connect. 5.
  • Page 28 5. After the software slicing is completed, click [Print]. Then the printer starts preparatory work such as preheating, and automatically starts printing after it is ready.
  • Page 29 Method 2: Cloud Connection FlashCloud Network Preheat WiFi Hotspot PolarCloud Setting About Cloud Ethernet FlashCloud PolarCloud Account: Printer Name: Flashforge PIN： Registration Code: ABCDEF Save Use the cloud connection to process printing operation. * The use of FlashForge cloud is in 2.4.3.1 section.
  • Page 30 2.4.3 Print 6.62GB Build Not Available Tools No job Filament 1 . Tap [Build], choose the file path: Printer internal memory, USB stick, Cloud. Ship-PLA.gx 20mm_Box- PLA.gx < < 2 . Choose the model file, tap on its right to start printing; or tap model picture or model name to enterdetail page, tap to start printing.
  • Page 31 2.4.3.1 FlashCloud Print Login E-mail Password FlashCloud：Cloud.sz3dp.com Remember Password 1. Register your account on Flashforge cloud: Login After activate your account through your email box, login in Flashforge cloud with your account. Forgot password Rigister FlashCloud Home My Printer Add printer The current printer is empty.
  • Page 32 FlashCloud Home My Printer The current printer is empty. Please add a printer Add printer Name Register Code Type State My Printer Flashforge ABCDEF Adventorer 3 Idle My Model My Job Model Library 4. Add printer completed. FlashCloud Home User...
  • Page 33 FlashCloud 首页 Flashforge 我的打印机 Time Remaining 我的模型 我的任务 模型库 21℃ / 0℃ 21℃ / 0℃ Closed Normal Start Cancel 2.4.3.2 Polar云打印 1. Register Polar cloud account. Log in https://polar3D.com to register the account. 2. Query Polar cloud PIN code. (1). After completing the Polar cloud registration and log in the Polar cloud website, click the icon on the top right...
  • Page 34 3. Connect the Adventurer 3 to the internet. Choose the appropriate network connection mode in the communication interface to connect the network (see the 2.3.2.1 section of the connection method). 4. Connect the Adventurer 3 to the Polar cloud. PolarCloud Polar cloud switch Account：...
  • Page 35 7. Click [MY OBJECTS], then click [UPLOAD] to upload the model. 8. Drag and drop the model files that need to be uploaded to the box area or click the box area to select the upload model, then click [UPLOAD] to upload.
  • Page 36 9. Click [PRINT]. 10. Click [START], the printer starts the cloud task downloading, and starts printing when the download is finished.
  • Page 37 2.4.4 Model Remove Take out the removable build plate. Notices When printing completed, extruder and build plate may still be hot, please start operating after cooling down! 2 . Bend the build plate, the plate will produce certain deformation, seperating the plate away from the bottom of model (Please use a scraper to assist removing when model is too small or big).
  • Page 38 2.4.5 Replace Filament /235℃ Load Heating extruder... Change Cancel 1 . Tap [Filament]--Tap [Change], extruder will start preheating. 2 . Pull out the filament as the picture 3 . Insert new filament into the filament intake showed above. and push the filament into the feeding wheel until resistance is sensed.
  • Page 39 Camera and USB Disk use the same interface, so the use of Adventurer 3's camera is different from that of other models. The use of Adventurer 3's camera and the use of Adventurer 3's USB Disk are incompatible (that is, only one (camera or USB Disk) can be used in the same time).
  • Page 40 3. Fill in the printer page with the printer name and registration number. This information is displayed on the FlashForge cloud’s interface of the printer. Please make sure that the printer has been properly connected to the network (see section 2.3.2.1), the FlashForge cloud...
  • Page 41 The current printer is empty. Please add a printer. State Register Code Type My Printer XXXXXX Adventorer 3 offline Flashforge My Model My Job Model Librar y 4. Add succeed. 5. Click the camera icon pointed by the arrow. 6. Camera begins to work.
  • Page 42 2.5.3. PolarCloud camera use 1. Register Polar cloud account Enter www.polar3D.com website to register account. 2. Find Polar cloud pin code (1). After registering polar cloud and log in polar cloud webiste, click the upper right arrow, click [Settings] Location Biography Website URL http://www.example.com/profile...
  • Page 43 3. Connect Adventurer 3 to the internet. Choose the proper connecting way in the Network interface (the connecting way consults pagexx ). 4. Connect Adventurer 3 to the Polar cloud. PolarCloud PolarCloud Switch Account： Enter the cloud connection interface (click Tools-Network- Cloud), turn on the Polar cloud switch (After the Polar cloud PIN：...
  • Page 44 2.5.4. The switching can be controlled through the Cloud 1. Connect to Polar Cloud The user can turn on or turn off the camera through Polar Cloud. Click Tools-> Communication -> Cloud Connect -> Polar Cloud, enter the settings page of Polar Cloud, click the input boxes of account number and PIN, enter the account number and PIN, click the “Start”...
  • Page 45 Location Biography Website URL http://www.example.com/profile Email +ADD Email PIN Code XXXX (2). Find PIN Code on the bottom of the page, the display numbers is PIN code. 2. Open or close the camera through the Cloud. (1). After switching on the camera funcition, click camera image on the front page to enter the interface like this, click the COMMANDS button pointed by the arrow.
  • Page 46 Notices a. If PolarCloud is in an intranet (that is, the printer and PC connect to the same router), the video is shown, and the state of printing can be displayed in real time. If PolarCloud is in an extranet, the pictures are shown (in case of printing, a picture is sent per 20s;...
  • Page 47 Chapter 3: Q&A Q1. How to solve if the nozzle is clogged？ Method 1: Tap [Preheat], heat up the extruder to 240℃, after heating completed, press the air tube joint and pull out the filament guide tube. Check to see whether the filament is bended or filament tip is not smooth, cut filament tip smooth and flat, install the guide tube and filament back, Tap [Load] .
  • Page 48 Q10. Is Adventurer 3 compatible with all kinds of AC power input ? Adventurer 3 is equipped with a built-in 24V/6.5A power supplier, suitable for 110V-240V input voltage. Q11. Is Adventurer 3 capable to be turned off automatically after printing job is finished ?
  • Page 49 Output: gx/g files. Q13. Does Adventurer 3 support other cloud platform besides the FlashCloud? Yes, Adventurer 3 interface is open up to all other cloud platforms. Q14. Is the ABS printing safe? ABS filament will give off certain poisonous gas when heated up, please put the printer in well ventilated condition when printing ABS.
  • Page 50 FlashForge team is on standby and ready to help you with any challenges you may have with your Adventurer 3. If the issues or questions are not covered in this User Guide, you can seek for solutions on our official website or contact us via telephone.
  • Page 51 FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,...
  • Page 52 Scan QR to Get More After-Sales Support Twitter Facebook Official Website...
