Parts supplied

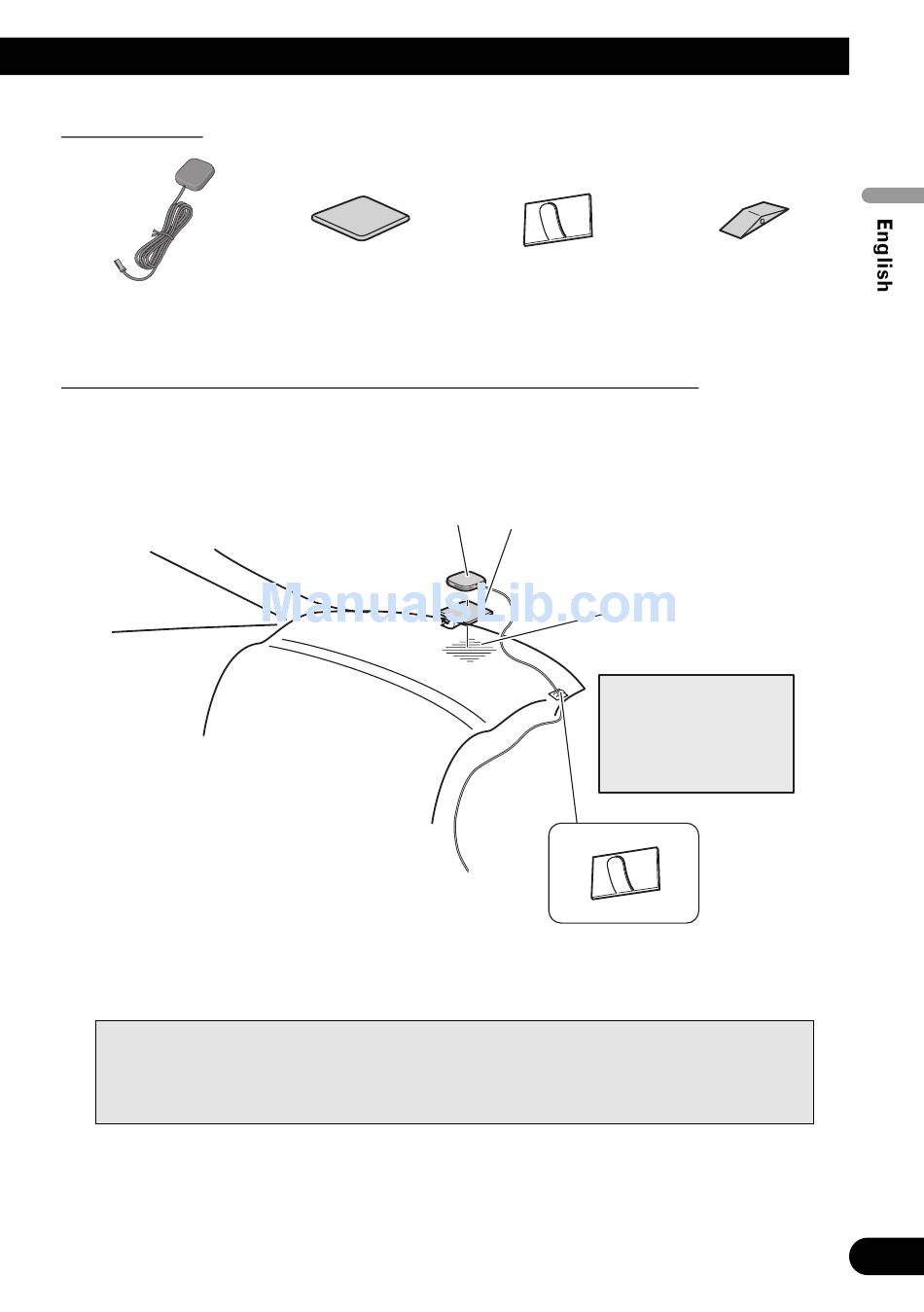

GPS antenna
When installing the antenna inside the vehicle (on the rear shelf)
Affix the metal sheet on as level a surface as possible where the GPS antenna faces the
window. Place the GPS antenna on the metal sheet. (The GPS antenna is fastened with its
magnet.)
Notes:
• When attaching the metal sheet, do not cut it into small pieces.
• Some models use window glass that does not allow signals from GPS satellites to pass
through. On such models, install the GPS antenna on the outside of the vehicle.
Metal sheet
GPS antenna
Clamp (5 pcs.)
Metal Sheet
Peel off the protective sheet
on the rear.
Make sure the surface is
free of moisture, dust,
grime, oil, etc., before
affixing the metal sheet.
Note:
The metal sheet contains
a strong adhesive which
may leave a mark on the
surface if it is removed.
Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.
Waterproof pad
