Pioneer AVIC-Z2 - Navigation System With DVD player Installation Manual page 13

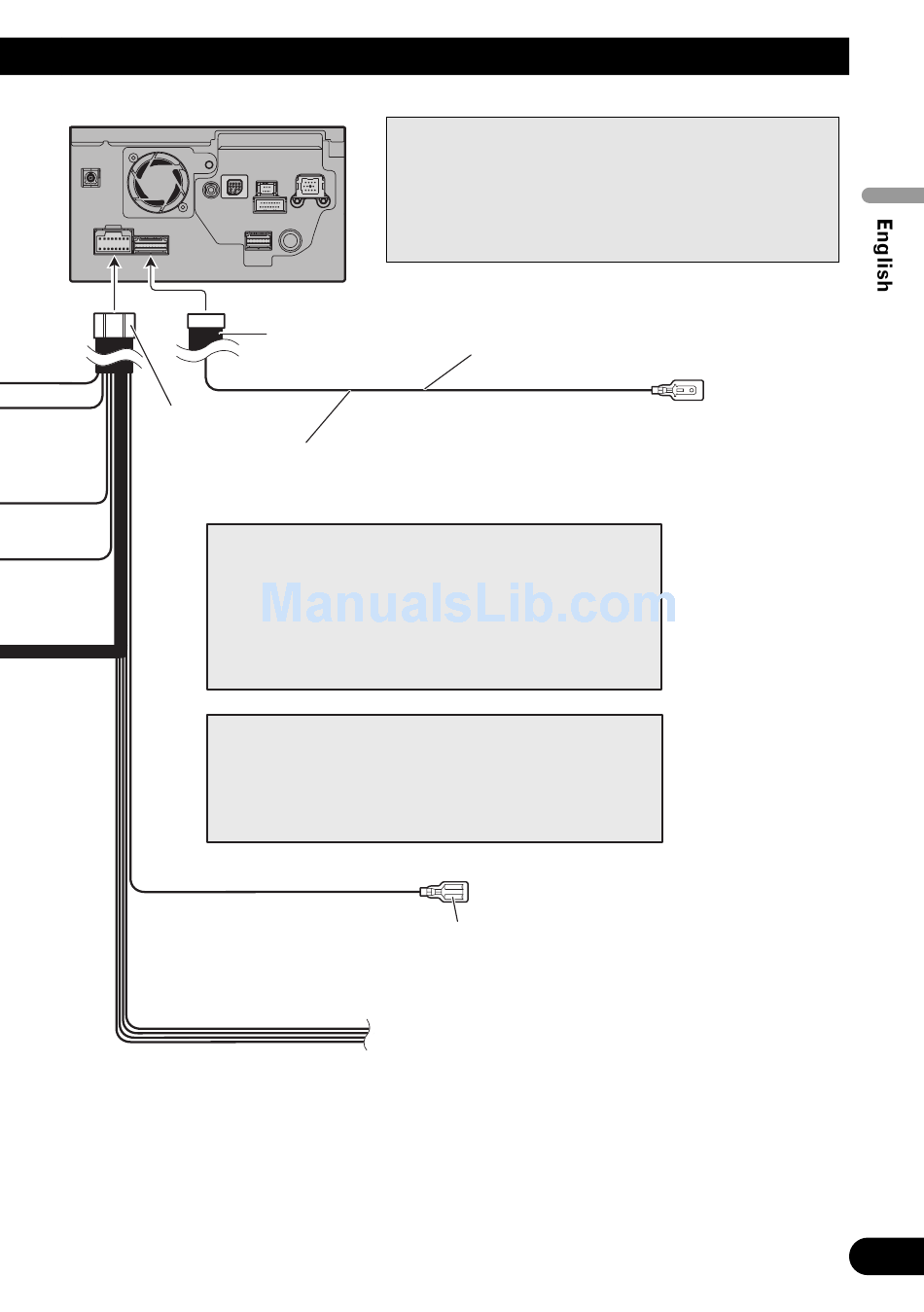

The navigation unit
RCA connector 1
Power cord
Yellow/black
If you use equipment with a mute function, connect that
equipment to the Audio Mute lead. If not, keep the Audio Mute
lead free of any connections.
Note:
Audio source will be set to mute or attenuate, while the
following sounds will not be muted or attenuated. For details,
see the Operation Manual.
- voice guidance of the navigation
- incoming Ringtone and incoming voice of the cellular
phone that is connected to this navigation system via
Bluetooth wireless technology
Note:
The antenna will automatically retract or turn off, yet the
timing varies depending on the setting. (Refer to page 5.)
For more detailed information on changing the "Auto ANT"
mode, refer to "Switching the auto antenna setting" in the
Operation Manual.
Note:
Cords for this navigation system and those for other prod-
ucts may be different colors even if they have the same
function. When connecting this navigation system to
another product, refer to the supplied manuals of both
products and connect cords that have the same function.
16 cm (6-1/4 in.)
Blue
To Auto-antenna relay control terminal.
If the vehicle has a glass antenna, connect to
the antenna booster power control terminal
(max. 300 mA 12 V DC).
12
