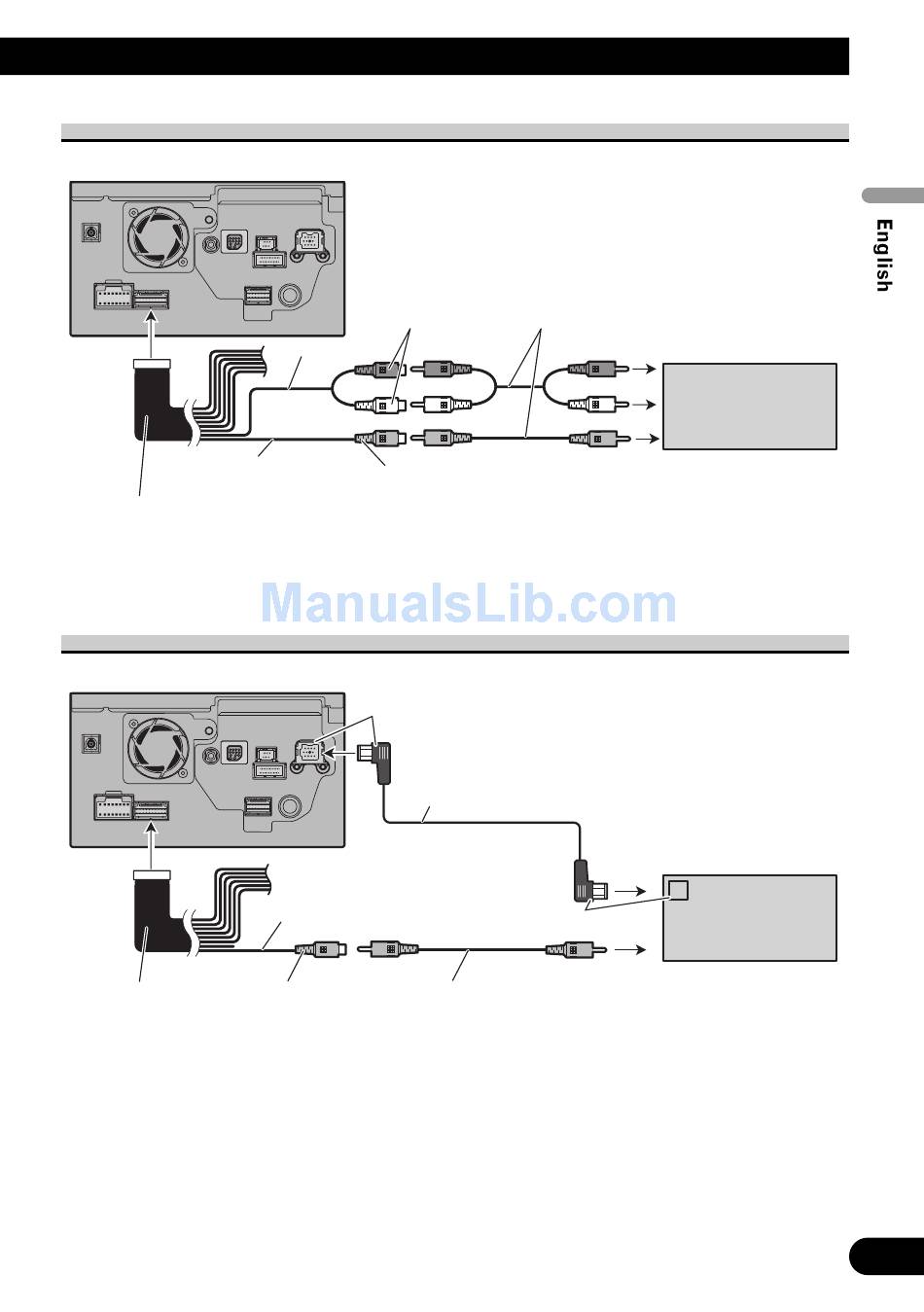

When connecting the external video component

The navigation unit
RCA connector 1
• It is necessary to set "AV Input" in "System Settings" to "Video" when connecting the
external video component. (For details, refer to the Operation Manual.)

When connecting the external unit featuring video source

The navigation unit
RCA connector 1
• It is necessary to set "AV Input" in "System Settings" to "EXT" when connecting the
external video component. (For details, refer to the Operation Manual.)
Red, white
(AUDIO INPUT)
20 cm (7-7/8 in.)
20 cm (7-7/8 in.) Yellow
(VIDEO INPUT)
Blue
20 cm (7-7/8 in.)
Yellow
(VIDEO INPUT)
RCA cables
(sold separately)
IP-BUS cable (sold separately)
To IP-BUS output
Black
To video output
RCA cable
(sold separately)
To audio outputs
External video
component
(sold separately)
To video output
Pioneer external unit
(sold separately)
18
