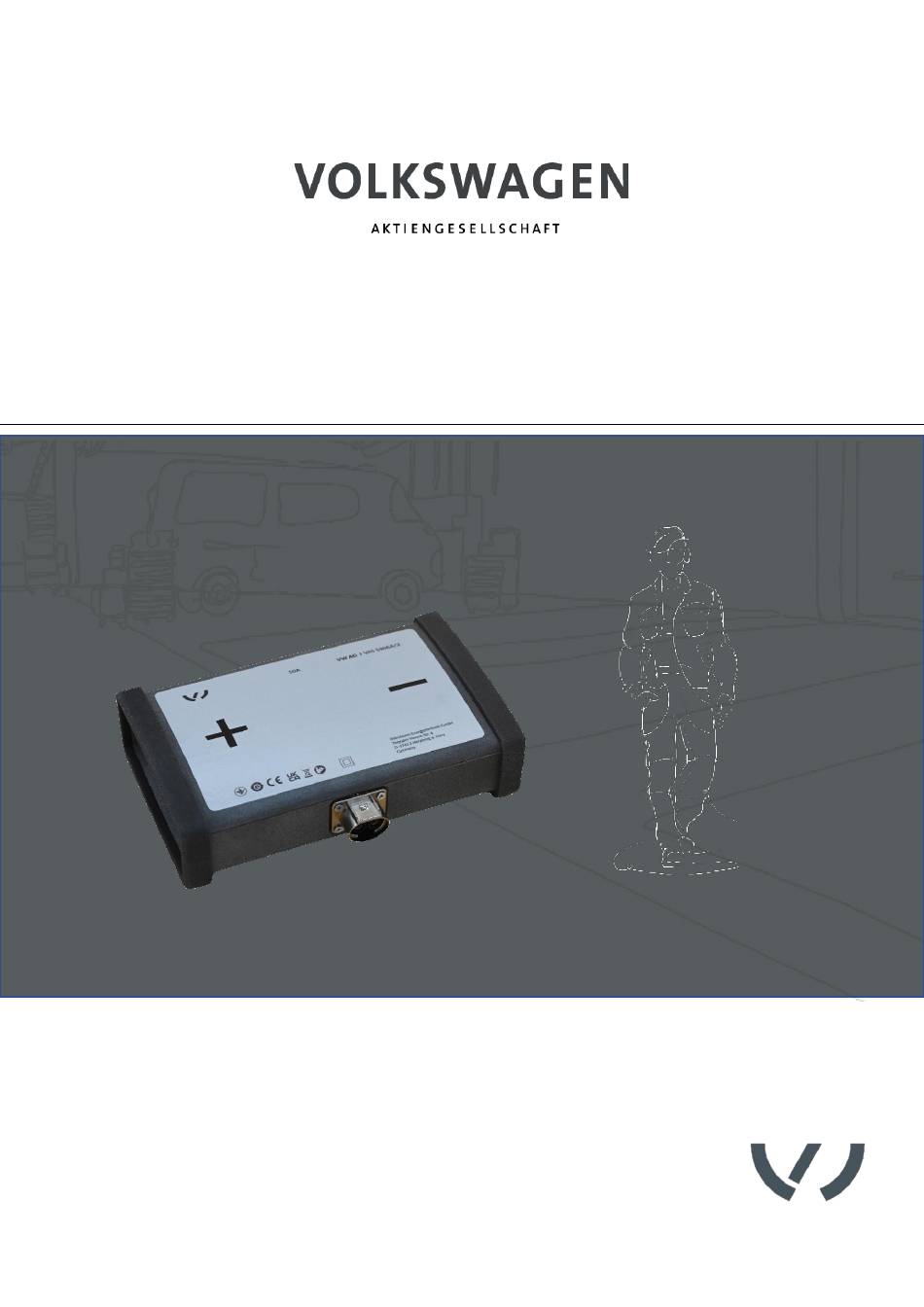

- Page 1 Operating Manual A d a p t e r p l a t e V A S 5 9 0 6 A / 2 A...
-
Page 2: Imprint
Revision Date Reason 03.06.2024 First edition 18.06.2024 Adjustment protective element imprint imprint Manufacturer Akkuteam Energietechnik GmbH Theodor-Heuss-Strasse 4 37412 Herzberg am Harz Phone: +49 (0) 5521 9981-0 Fax: +49 (0) 5521 9981-11 info@akkuteam.de www.akkuteam.de duplication Reproduction or reprint, even in part, always requires the written permission of the manufacturer. copyright ORIGINAL OPERATING INSTRUCTIONS All rights reserved. -
Page 3: Table Of Contents
Contents Contents IMPRINT CONTENTS INTRODUCTION Preliminary remarks Validity of the declaration of conformity Manufacturer information SECURITY Warning levels Important safety instructions Intended Use Requirements for the target group Obligations of the operator PRODUCT DESCRIPTION Scope of delivery Construction Symbols and connections Technical data SERVICE Installation... -
Page 4: Introduction
EN | Introduction Introduction Preliminary remarks Please read this manual carefully before using the product. The product comes with a USB stick on which the operating instructions are stored in various national languages. The currently valid version and other national languages can be found on our homepage. -
Page 5: Security
EN | Security Security This safety chapter informs you about the following: • Warning levels contained in this manual, • Important safety information about the product, • Intended use of the product, • Requirements of the target group. This manual is only valid for the following product: Item number: ASE 408 182 00 000 Designation:... -
Page 6: Important Safety Instructions
EN | Security Important safety instructions This chapter informs you about the safety instructions that must be observed when handling the product. WARNING Incorrect operation can cause serious personal injury and property damage. Do not use the functions described until the following documents have been completely read and understood: •... -
Page 7: Intended Use
VAS 5906A, with the adapter cable VAS 5906A/1 to the external starting points of the vehicle. Vehicle manufacturers within the meaning of this operating manual are exclusively vehicle manufacturers of the Volkswagen Group. Any other use is prohibited. Requirements for the target group... -
Page 8: Product Description
EN | Product description Product description Scope of delivery Please check the condition and completeness of the delivery immediately. If there are any defects, please contact the manufacturer immediately. (1) Adapterplatte VAS 5906A/2 (2) USB stick with operating instructions (3) Information sheet... -
Page 9: Construction
EN | Product description Construction Product structure: (1) Connector adapter cable for external starting point VAS 5906A/1 (2) Positive (+) terminal point for charging clamp (red) (3) Negative (-) terminal point for charging clamp (black) (4) Car flat fuse 29 mm 50 A (red) according to DIN ISO 8820-3... -
Page 10: Symbols And Connections
EN | Product description Symbols and connections The following symbols are shown on the product: Symbol Meaning The serial number, together with the manufacturer's part number, is used to identify the product. The manufacturer part number, together with the serial number, is used to identify the product. The disposal instructions prohibit disposal of the product via household waste. -
Page 11: Technical Data
EN | Product description Technical data Design data Values Manufacturer number A009233 Maximum rated voltage 17 V/DC Maximum rated current 50 A Weight ~ 470g Dimensions L/H/W ~ 210 mm/130 mm/55 mm Environmental conditions Operation storage Transport temperature 5 °C to 40 °C -20 °C to 60 °C -20 °C to 60 °C Altitude above sea level... -
Page 12: Service
EN | Service Service This chapter informs you about the following activities: • Installation, • Cleaning, • Storage and transport, • Disposal, • Maintenance. Installation Please note the safety instructions. Connect the adapter cable 5906A/1 to the adapter plate VAS 5906A/2. Now connect the red special clamp of the adapter cable to the positive jump start point (+) in the engine compartment of the vehicle. -
Page 13: Cleaning
EN | Service The adapter plate is equipped with a protective element in the form of a fuse. If the maximum rated current of 50 A is exceeded, the protective element is triggered and must be replaced. A 29 mm 50 A (red) automotive flat fuse according to DIN ISO 8820-3 must be used here. Cleaning Please note the safety instructions! The product may only be cleaned with a dry cloth. -
Page 14: Help
EN | Help Help Warranty The product comes with a warranty period of 24 months. The warranty applies to a manufacturing defect or a clearly demonstrable defect in the product that is not due to user error. All inquiries in this regard must be reported to the wholesaler with appropriate photo documentation and a detailed description of the fault. - Page 15 Volkswagen AG Akkuteam Energietechnik GmbH Group After Sales – Group Service. Theodor-Heuss-Strasse 4 Literature and systems 37412 Herzberg am Harz Workshop equipment Phone: +49 (0) 5521 9981-0 PO Box 011/4915 Fax: +49 (0) 5521 9981-11 38442 Wolfsburg vas-service@akkuteam.de For internal use only www.akkuteam.de...
