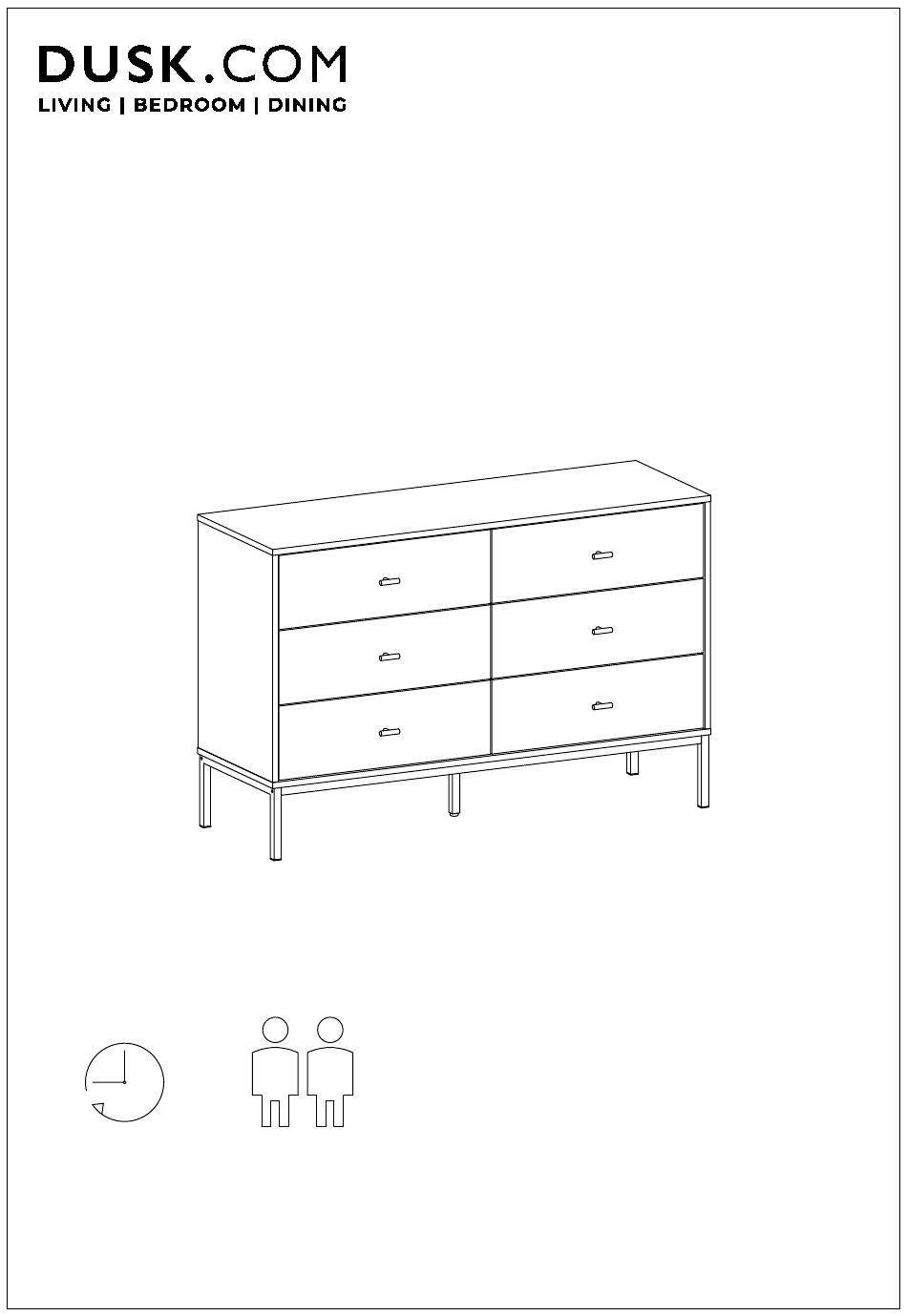

- Page 1 Range Name: Willow Box 1 dimensions: W135xD66.5xH15.5(cm) Product Dimension: W120xD40xH78(cm) Willow Chest Up to 45 minutes Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1/13 V-2.0...
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
- Page 3 Parts list P-3/13...
- Page 4 Parts list Before you begin building your Willow Chest, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Description Quantity...
- Page 5 1. Attach parts to Chest Top, Side Panels and Middle Panel. Ø8*30mm Dowel 6pcs M6*35mm Bolt M4*14mm Screw Wall Bracket 14pcs 2pcs 2pcs 2. Attach Centre Support to Side Panels and Middle Panel. Ø15mm Cam Lock Ø8*30mm Dowel Ø8*60mm Dowel P-5/13 8pcs 4pcs...
- Page 6 3. Attach Chest Top to Side Panels and Middle Panel. Ø15mm Cam Lock 6pcs 4. Slide Back Panels into the Frame. P-6/13...
- Page 7 5. Attach the Bottom Panel onto the frame. Allen Key M7*48mm Screw Ø8*30mm Dowel 6pcs 6pcs 6. Attach the Leg Side Support to the Leg Centre Support. Allen Key M6*12mm Bolt P-7/13 4pcs...
- Page 8 7. Attach the Legs and Centre Leg to the Leg Supports. Allen Key M6*12mm Bolt M6*40mm Bolt 2pcs 4pcs 8. Attach the Legs to the frame. Bx10 Adjustable Foot Allen Key M6*30mm Bolt P-8/13 10pcs...
- Page 9 9. Attach the Plastic Buckles. Plastic Buckle M3.5*14mm Screw 8pcs 8pcs 10. Fix the Wall Bracket to the wall. Ø6*30mm Wall Plug M4*35mm Screw P-9/13 2pcs 2pcs...
- Page 10 11. Attach Bolts to the Drawer Front. 8 x3 9 x3 M6*35mm Bolt 24pcs 12. Assemble the Drawers. M4*35mm Screw P-10/13 24pcs...
- Page 11 13. Slide the Drawer Bottom into the Drawer. 14. Attach the Drawer Front and tighten the CAM Locks. Ø15mm Cam Lock Ø20mm Sticker P-11/13 24pcs 24pcs...
- Page 12 15. Attach the Handle. Handle M4*20mm Bolt 6pcs 6pcs 16. Slide the Drawers into the Frame. P-12/13...
- Page 13 17. The Centre Leg is adjustable if necessary. P-13/13...
