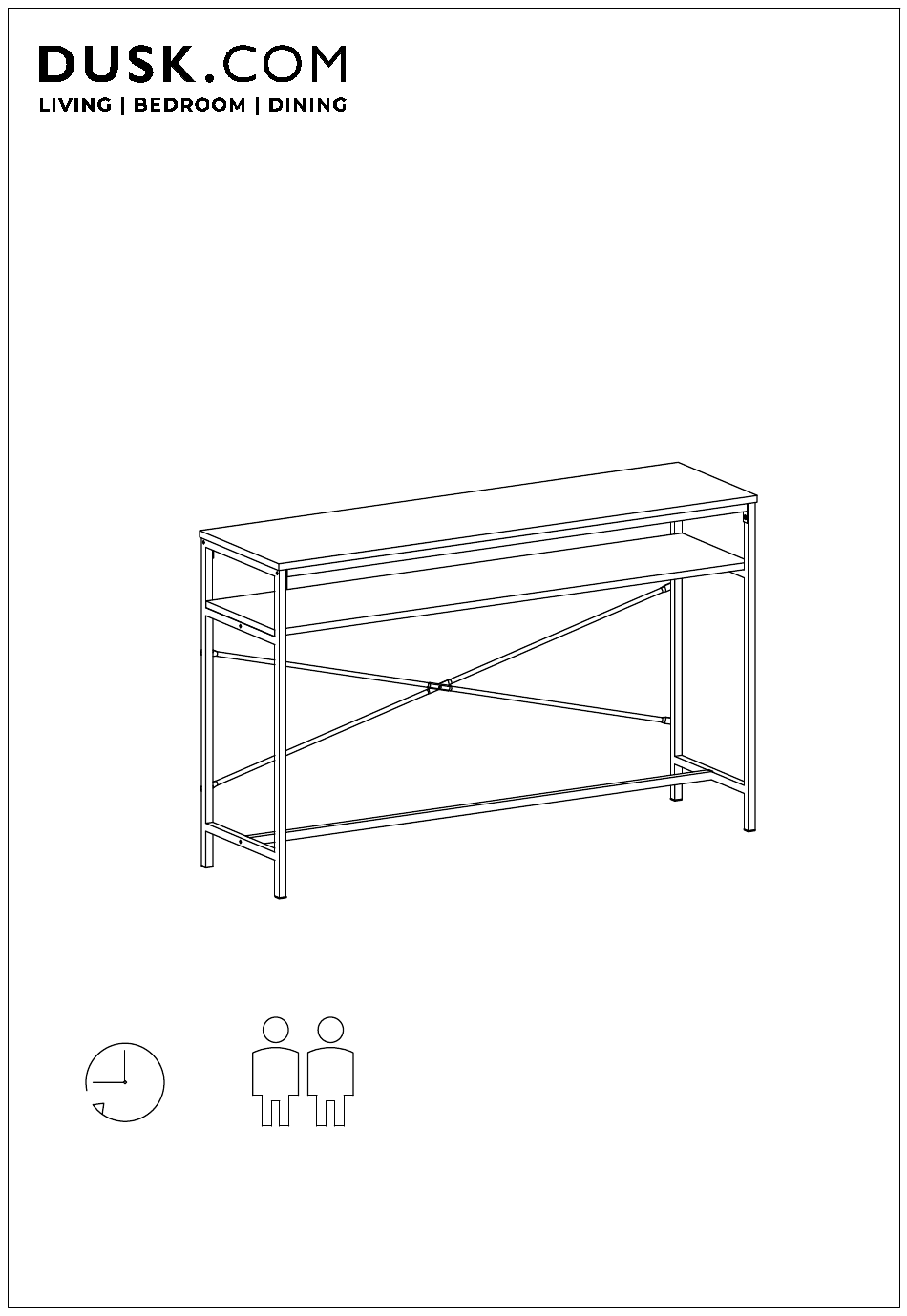

- Page 1 Range Name: Willow Box dimensions: L131.5xW44.5xH9.5(cm) Willow Console Table Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1/6...
-
Page 2: Assembly Tip
IMPORTANT ASSEMBLY TIP Before you begin, it's best t o identify all of th e parts and fittings to bu ild your console table frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. -
Page 3: Parts List
Parts list Before you begin building your Willow Console Table, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Number... -
Page 4: Assemble The Parts
1. Assemble the parts. Allen Key M6*12mm Bolt M6*28mm Bolt M6*35mm Bolt 4pcs 4pcs 4pcs 2. Attach parts to the frame. Allen Key M6*28mm Bolt P-4/6 6pcs... - Page 5 3. Attach parts to the frame. M4*14mm Screw Wall Bracket 2pcs 2pcs 4. Assemble the parts to the frame. Allen Key M5 Nut Wrench M6*12mm Bolt M5*20mm Bolt P-5/6 4pcs...
- Page 6 5. Attach the top to the frame. Allen Key M6*28mm Bolt 8pcs 6. Fix the L-shaped bracket to the wall. Ø6*30mm Wall Plug M4*35mm Screw P-6/6 2pcs 2pcs...
