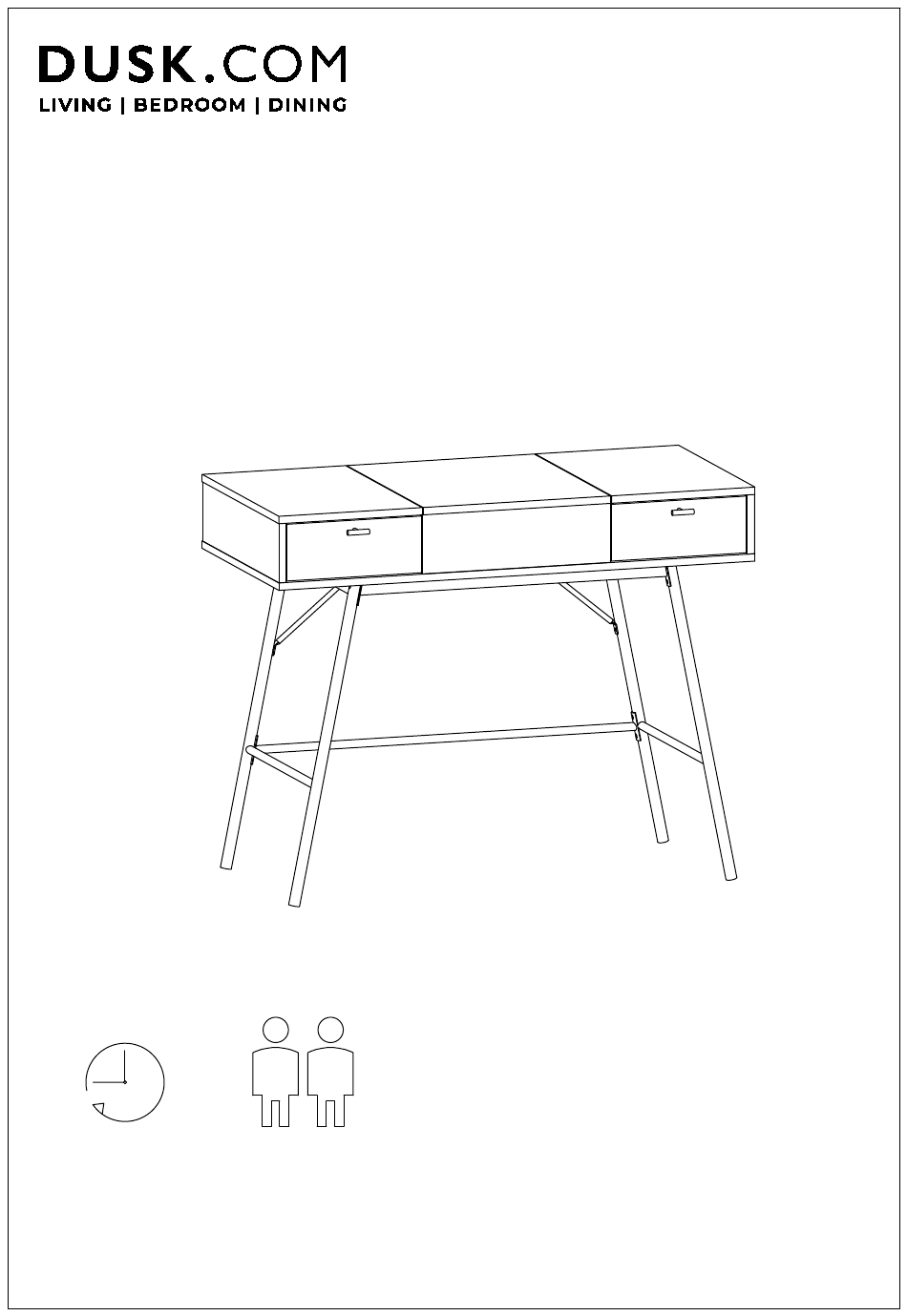

Willow Storage Dressing Table
Up to 45 minutes
assembly time
This product is intended for domestic use only, not for commercial purposes.
Two person
assembly
Range Name: Willow
Box 1 dimensions: L113xW55.5xH13(cm)
Product Dimension: W100xD48xH80(cm)
P-1/15
V-2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Willow Storage Dressing Table
Summary of Contents for DUSK Willow Storage Dressing Table
- Page 1 Range Name: Willow Box 1 dimensions: L113xW55.5xH13(cm) Product Dimension: W100xD48xH80(cm) Willow Storage Dressing Table Up to 45 minutes Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1/15 V-2.0...
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your storgae dressing table frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. TOP TIP We recommend that you assemble the storgae dressing table in the room you'd like it to be located.
- Page 3 Parts list P-3/15...
- Page 4 Parts list Before you begin building your Willow Storage Dressing Table, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Description...
- Page 5 1. Attach the Bolts to the Panels. M6*35mm Bolt 8pcs 2. Attach the Back Panel to the Side Panels. Ø15*12mm Cam Lock P-5/15 4pcs...
- Page 6 3. Attach the Front Panel to the Middle Panels. Ø15*12mm Cam Lock 4pcs 4. Attach the Bolts to the Middle Panels. Allen Key M6*20mm Bolt P-6/15 4pcs...
- Page 7 5. Tighten the Screws into the Frame. Allen Key M7*48mm Screw 4pcs 6. Attach the Bottom Panel onto the Frame. Gx14 Allen Key Hx12 Ø8*30mm Dowel 12pcs M7*48mm Screw P-7/15 14pcs...
- Page 8 7. Attach the Hinges to the Doors. Hinge M3.5*14mm Screw 8pcs 4pcs 8. Attach the Doors to the Bottom Panel and tighten the Screws fully. 100% Allen Key M3.5*14mm Screw P-8/15 16pcs...
- Page 9 9. Attach the Bolts to the Side Tops. M6*35mm Bolt 8pcs 10. Attach the Side Tops onto the Frame. Ø8*30mm Dowel 12pcs Ø15*12mm Cam Lock P-9/15 8pcs...
- Page 10 11. Attach the Stickers onto the Cam Locks and the Bolts. Sticker 6pcs 12. Assemble the Handles. Handle M4*20mm Bolt P-10/15 2pcs 2pcs...
- Page 11 13. Attach the Hinges to the Middle Top. Hinge M3.5*14mm Screw 4pcs 2pcs 14. Attach the Middle Top to the Back Panel. M3.5*14mm Screw P-11/15 8pcs...
- Page 12 15. Adjust the Doors. M / N M / N M / N 16. Attach the Lid Support Hinge to the Frame. Lid Support Hinge M3.5*14mm Screw P-12/15 4pcs...
- Page 13 17. Adjust tightness to adjust the support force. Allen Key 18. Assemble the Legs. Allen Key M6*35mm Bolt 4pcs M6*12mm Bolt P-13/15 8pcs...
- Page 14 19. Attach the Reinforced Tubes to the Leg Frame. Allen Key M6*12mm Bolt 4pcs 20. Attach the Legs onto the Frame. Allen Key M6*35mm Bolt P-14/15 4pcs...
- Page 15 21. Attach the Strips to the Bottom Panel. A&C 100% Strip 2pcs M4*14mm Screw 2pcs 22. Fix the Strips to the wall. Ø6*30mm Wall Plug 2pcs M4*35mm Screw P-15/15 2pcs...
