DUSK Willow Large Shelving Unit Manual

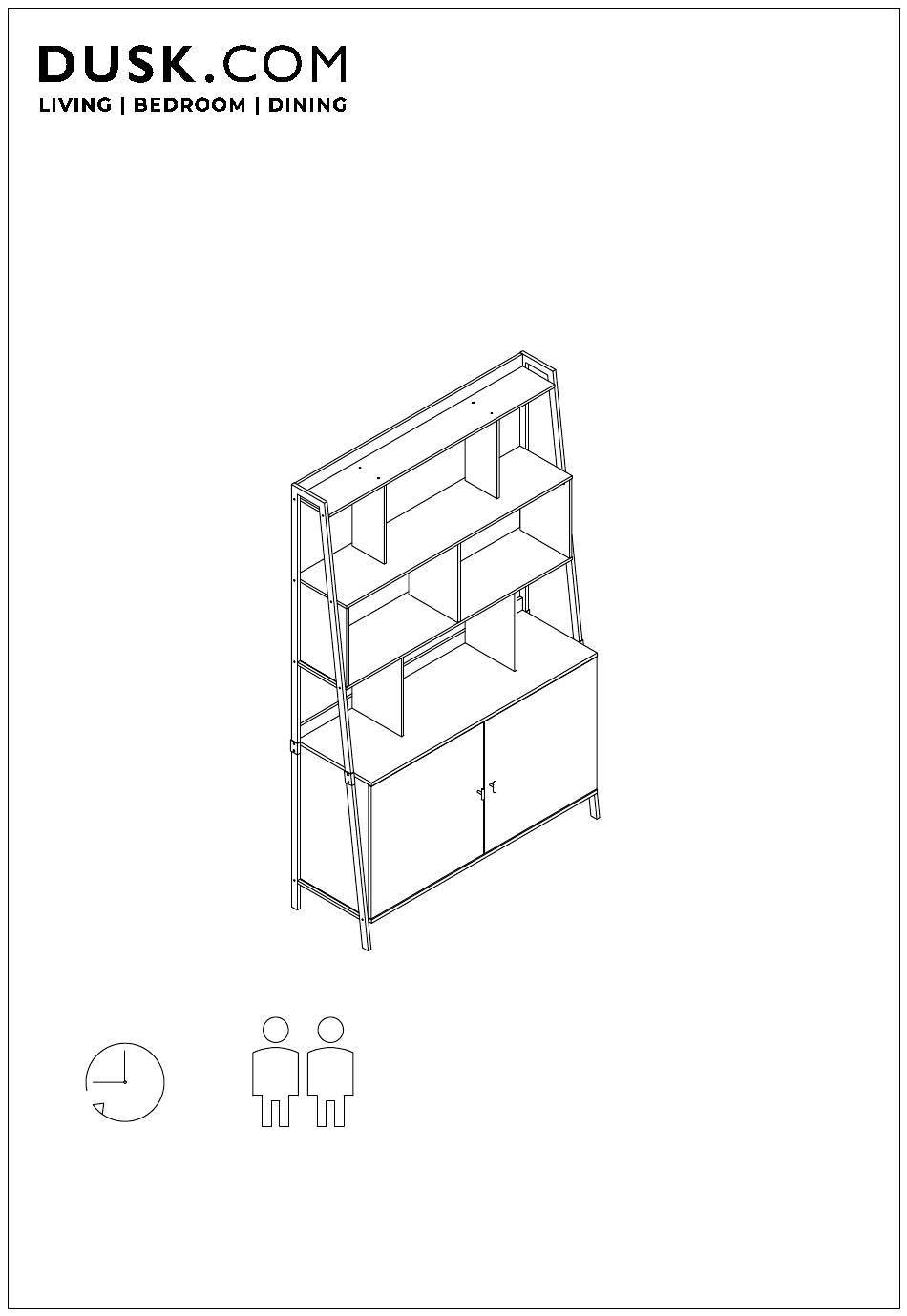

Product dimension: w120xd40xh190(cm)

Advertisement

Quick Links

Willow Large Shelving Unit
Up to 60 minutes
assembly time
This product is intended for domestic use only, not for commercial purposes.
Two person
assembly
Range Name: Willow
Box 1 dimensions: W132.5xD67xH18.5(cm)
Product Dimension: W120xD40xH190(cm)
P-1/16
V-2.0
