DUSK Nell Shoe Cabinet Manual

Product dimensions: w80 x d25.5 x h108 cm

Advertisement

Quick Links

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
50 minutes approx
assembly time
assembly required
This product is intended for domestic use only, not for commercial purposes.
Shoe Cabinet
Two adults
Range Name: Nell
Box 1 Dimensions : W117 x D54.5x H18.5 cm
Product Dimensions: W80 x D25.5 x H108 cm
P-1-15
V-2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nell Shoe Cabinet and is the answer not in the manual?

Questions and answers

Summary of Contents for DUSK Nell Shoe Cabinet

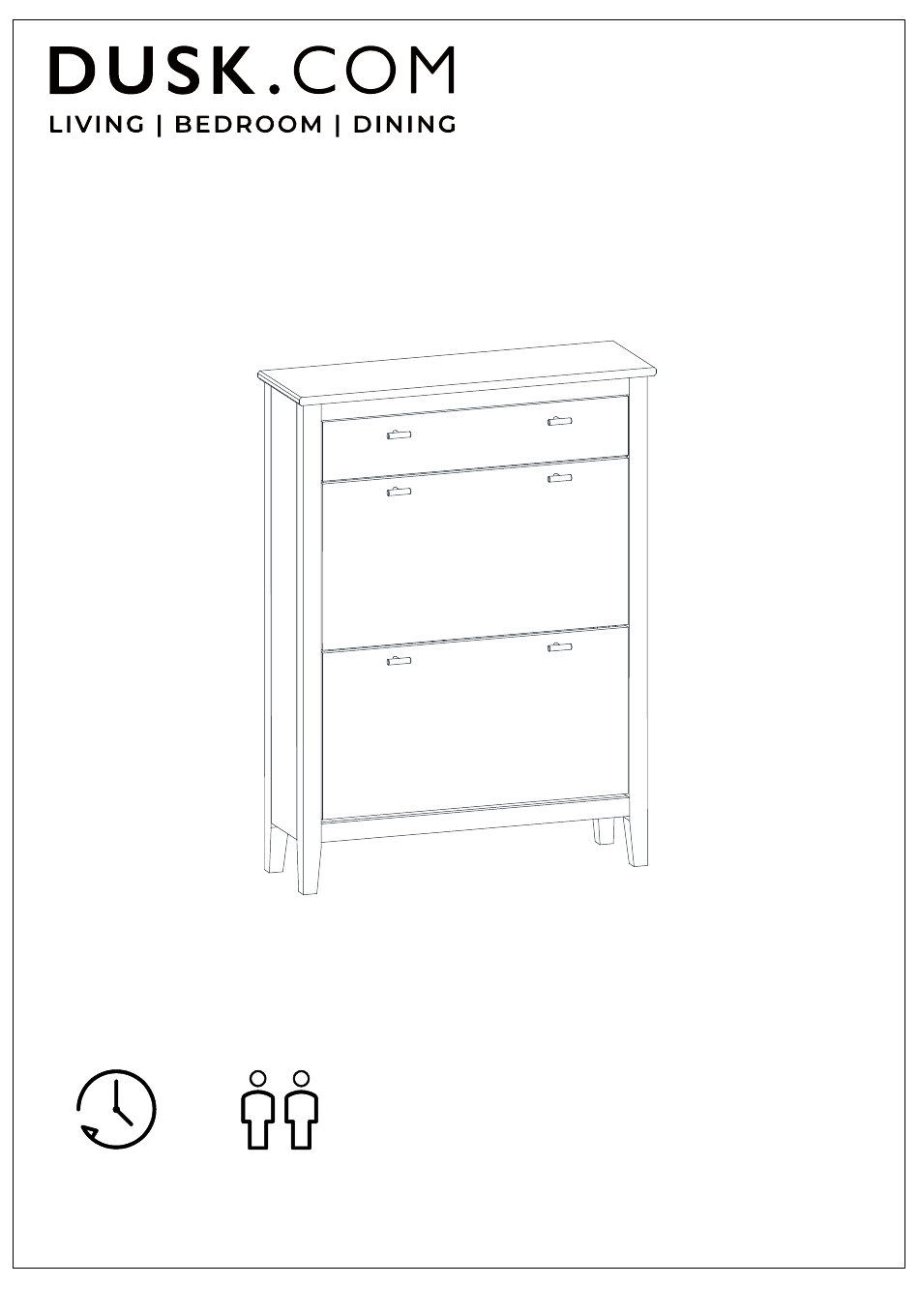

  • Page 1 Range Name: Nell Box 1 Dimensions : W117 x D54.5x H18.5 cm Product Dimensions: W80 x D25.5 x H108 cm Shoe Cabinet THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. 50 minutes approx Two adults assembly time assembly required P-1-15...
  • Page 2: Care And Maintenance

    Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor. It's best to identify all of the parts and fittings to build your shoe cabinet, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new shoe cabinet in the room you'd like it to be located.
  • Page 3: Parts List

    Parts list P-3-15...
  • Page 4: Fittings List

    Parts list shoe cabinet Before you begin building your ,please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Box No Part Number Part Description 1 pc Top Panel Box 1...
  • Page 5 M3.5X12mm Screw X8pcs(+1 extra) Slide Rail x2sets Separate Package Handlex6pcs Handlex6pcs Handlex6pcs Handlex6pcs Screw M4X20mm X6pcs Screw M4X20mm X6pcs Screw M4X20mm X6pcs Screw M4X16mm X6pcs Slides Must Be Separated Before Assembly. Pay attention when connecting ! After Separated, Set Aside Until Needed for Assembly. The sliding module must be at the front end.
  • Page 6 Attach cam bolts to Bottom Support Bar (4), and then attach Bottom Support Bar to Bottom Panel (5). Step 2: Attach slide rail, cam bolts, spacer pin and felt mat to Left Panel (2). 8pcs 2pcs 2pcs 2pcs P-6-15...
  • Page 7 Step 3: Attach slide rail, cam bolts, spacer pin and felt mat to Right Panel (3). 8pcs 2pcs 2pcs 2pcs Attach parts (5, 7, 9, 10) to Left Panel (2). P-7-15...
  • Page 8 Attach Bottom Back Panel (6) to the frame. Attach Right Panel (3) to the frame. P-8-15...
  • Page 9 Insert Upper Back Panel (8) to the frame. Attach cam bolts and wall bracket to Top Panel (1). P-9-15...
  • Page 10 Attach Top Panel (1) to the frame. Step 10: Attach slide rail to Top Drawer Side panels (16, 17), then attach the top drawer. 6pcs 4pcs 2pcs P-10-15...
  • Page 11 Insert Top Drawer Bottom (19) to the frame. Attach cam bolts and handles to Top Drawer Front (14). Attach Top Drawer Front (14) to the frame. P-11-15...
  • Page 12 Attach Flip Drawer Bottom (13), Flip Drawer Front (11), Flip Drawer Back Side (12) to the flip shelfs by following below steps. P-12-15...
  • Page 13 Attach two flip drawers to the frame. Attach the Flip Drawer Back Side panel (12) to the flip shelf middle, and attach the handles to Flip Drawer Front. P-13-15...
  • Page 14 Attach the plastic buckles . Before securing the plastic buckles, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. Fix the wall bracket to the wall by drilling holes, inserting wall anchors, and securing it with screws. P-14-15...
  • Page 15 Attach the top drawer to the frame. P-15-15...
