Console/Dressing
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
45 minutes approx
assembly time
assembly required
This product is intended for domestic use only, not for commercial purposes.
Two adults
Range Name: Poppy/Nell
Box 1 Dimensions (Body): W98.5xD53.5xH14.3cm
Poppy Top Box Dimensions: W101xD51.5xH5cm
Nell Top Box Dimensions: W103.5xD53xH5cm
Poppy Product Dimensions: W90xD45xH75cm
Nell Product Dimensions: W93xD46.5xH75cm
P-1-11
V-2.0
Advertisement
Related Manuals for DUSK Poppy Console/Dressing
Summary of Contents for DUSK Poppy Console/Dressing

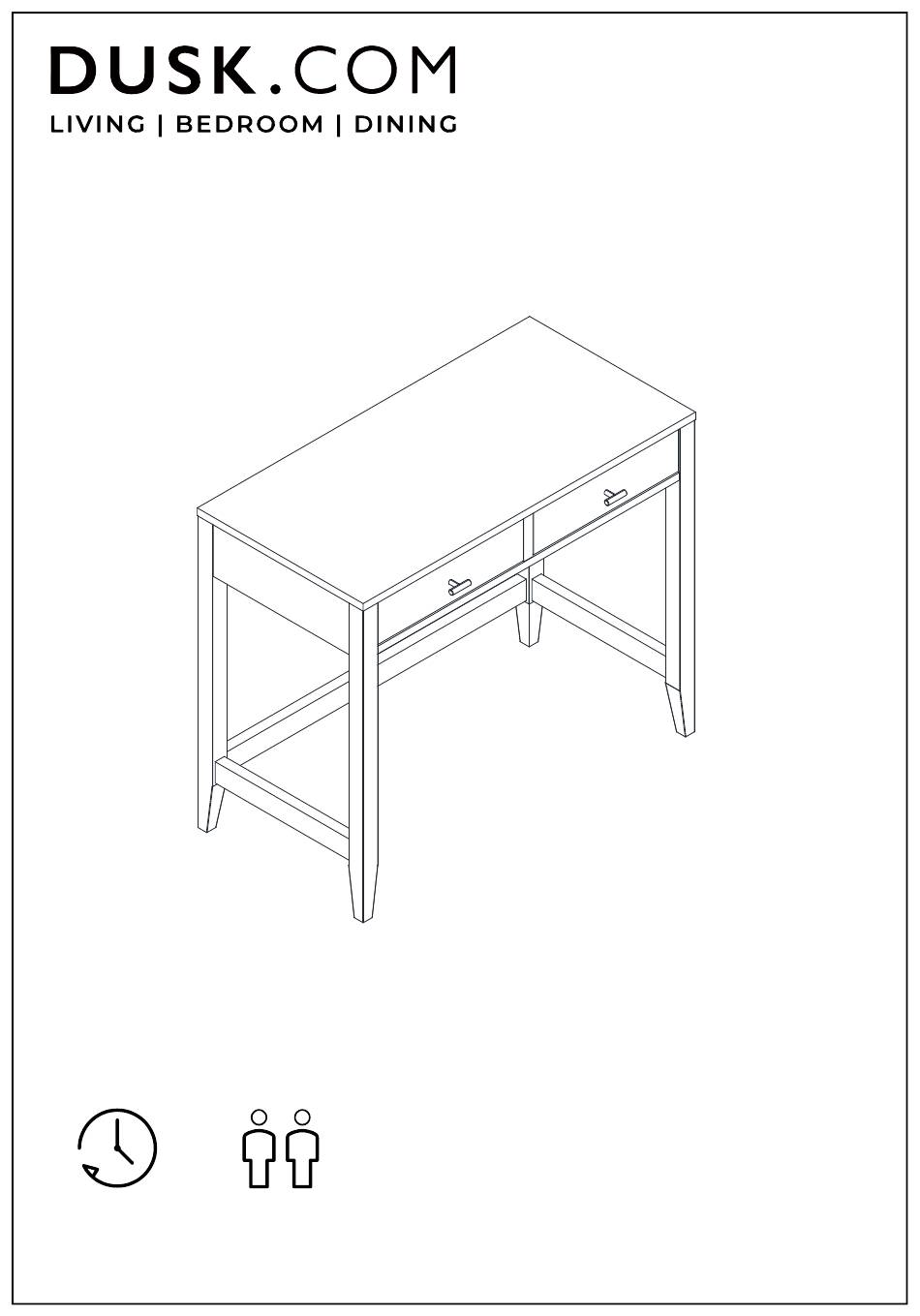

- Page 1 Range Name: Poppy/Nell Box 1 Dimensions (Body): W98.5xD53.5xH14.3cm Poppy Top Box Dimensions: W101xD51.5xH5cm Nell Top Box Dimensions: W103.5xD53xH5cm Poppy Product Dimensions: W90xD45xH75cm Nell Product Dimensions: W93xD46.5xH75cm Console/Dressing THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. 45 minutes approx Two adults assembly time...
-
Page 2: Care And Maintenance
Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor. It's best to identify all of the parts and fittings to build your console/dressing, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new console/dressing in the room you'd like it to be located. -
Page 3: Parts Checklist
Parts checklist Please check you have all the parts listed below with your product: Do not discard any of the packaging until you have checked that you have all the parts and the pack of fixings. Note: There are 2 styles of Part 1, both assemble identically so please follow the same instructions for whichever style you have chosen. -
Page 4: Tool Required
Fittings checklist Please check you have all the fittings listed below with your product (in box 1): M4x35mm Screw x12pcs 36mm Cam bolt x10pcs M7.8x30mm Wood dowel x12pcs(+1 extra) (+1 extra) M4x40mm Screw x4pcs M5x40mm Pin x2pcs M15x9.5mm Cam x10pcs Screw M4x20mm or M4x16mm M3x14mm Screw x10pcs(+1 extra) 20x20mm Felt pad x4pcs... - Page 5 Step 1: 4pcs Step 2: 2pcs 2pcs 160°~185° P-5-11 V-2.0...
- Page 6 Step 3: 2pcs 2pcs Step 4: 2pcs 2pcs P-6-11 V-2.0...
- Page 7 Step 5: 6pcs Step 6: 6pcs 6pcs P-7-11 V-2.0...
- Page 8 Step 7: 4pcs 10pcs Step 8: 8pcs 4pcs 8pcs P-8-11 V-2.0...
- Page 9 Step 9: 2pcs 4pcs 2pcs Adjust drawer sides' position by turning Screw (Q) clockwise or counterclockwise as necessary. Step 10: 8pcs 8pcs ° P-9-11 V-2.0...
- Page 10 Step 11: Step 12: 4pcs 2pcs P-10-11 V-2.0...
- Page 11 Step 13: 4pcs 4pcs 2pcs 2pcs WALL Before applying the bracket to the wall, check pipes and cables that may be hidden behind. WARNING: Manufacturer assumes no liability for improper installation or excessive loads placed on screws or bracket. This wall anchor is not a substitute for proper adult supervision.
