THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
30 minutes approx
assembly time
assembly required
This product is intended for domestic use only, not for commercial purposes.

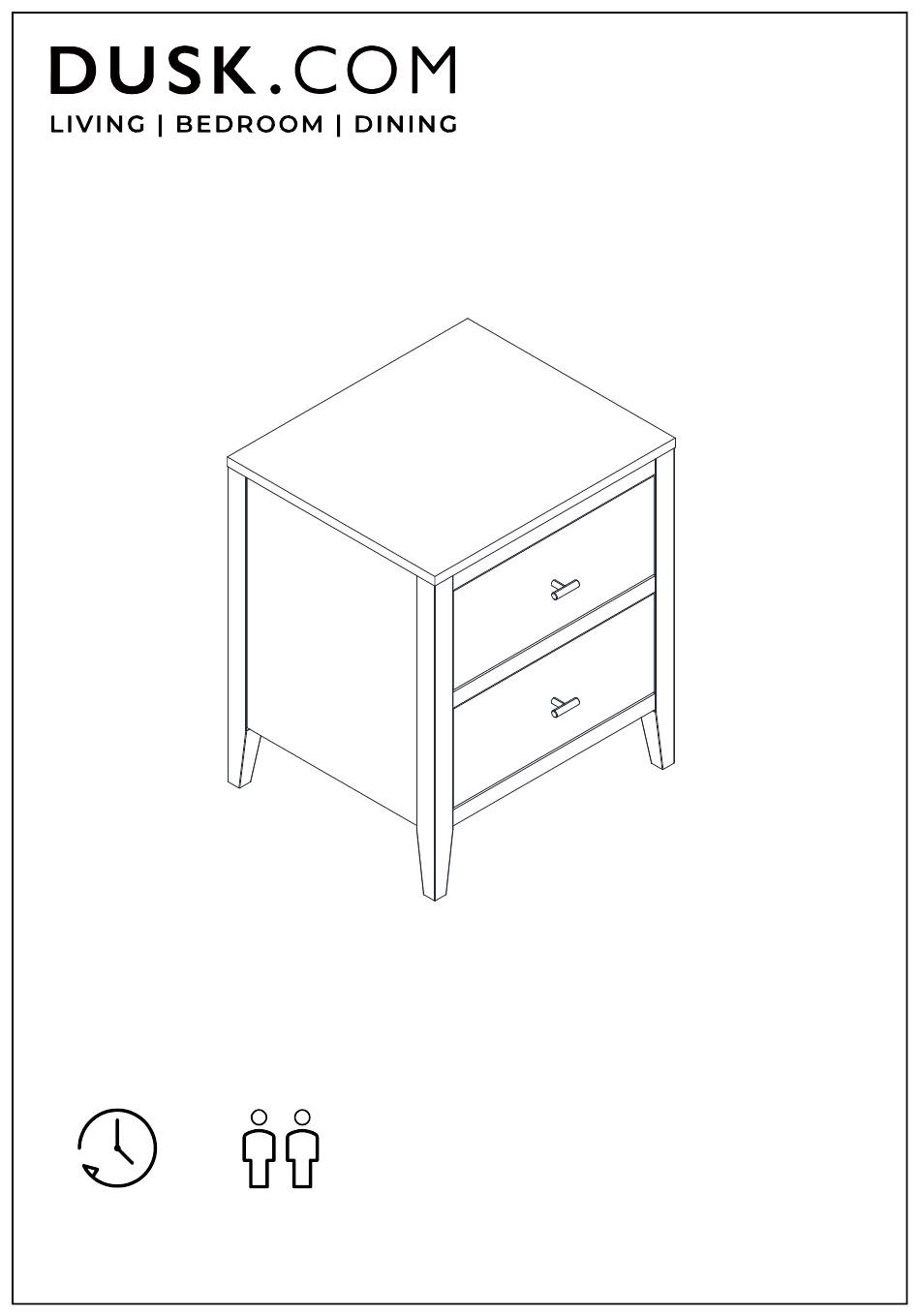

Bedside
Two adults
Range Name: Poppy/Nell
Box 1 Dimensions (Body): W71.7xD54.5xH17cm
Poppy Top Box Dimensions: W62.5xD51.3xH5cm
Nell Top Box Dimensions: W65xD52.8xH5cm
Poppy Product Dimensions: W52xD45xH61cm
Nell Product Dimensions: W55xD46.5xH61cm
P-1-11
V-2.0
Advertisement
Related Manuals for DUSK Poppy Bedside
Summary of Contents for DUSK Poppy Bedside
- Page 1 Range Name: Poppy/Nell Box 1 Dimensions (Body): W71.7xD54.5xH17cm Poppy Top Box Dimensions: W62.5xD51.3xH5cm Nell Top Box Dimensions: W65xD52.8xH5cm Poppy Product Dimensions: W52xD45xH61cm Nell Product Dimensions: W55xD46.5xH61cm Bedside THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. 30 minutes approx Two adults assembly time...
-
Page 2: Care And Maintenance
Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor. It's best to identify all of the parts and fittings to build your bedside, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new bedside in the room you'd like it to be located. -
Page 3: Parts Checklist
Parts checklist Please check you have all the parts listed below with your product: Do not discard any of the packaging until you have checked that you have all the parts and the pack of fixings. Note: There are 2 styles of Part 1, both assemble identically so please follow the same instructions for whichever style you have chosen. -
Page 4: Tool Required
Fittings checklist Please check you have all the fittings listed below with your product (in box 1): M5.8x30mm Wood dowel x8pcs(+1 extra) 36mm Cam bolt x10pcs M7.8x30mm Wood dowel x10pcs(+1 extra) M4x35mm Screw x1pc M15x9.5mm Cam x10pcs M4x14mm Screw x8pcs(+1 extra) M3x14mm Screw x14pcs(+1 extra) 20x20mm Felt pad x4pcs M3.8x35mm Screw x12pcs(+1 extra) - Page 5 Step 1: 6pcs Step 2: 4pcs 4pcs P-5-11 V-2.0...
- Page 6 Step 3: 8pcs 4pcs 6pcs 4pcs Step 4: 4pcs P-6-11 V-2.0...
- Page 7 Step 5: 6pcs 4pcs Step 6: 4pcs 14pcs P-7-11 V-2.0...
- Page 8 Step 7: 8pcs Step 8: 4pcs 8pcs P-8-11 V-2.0...
- Page 9 Step 9: 8pcs 2pcs 2pcs Adjust drawer sides' position by turning Screw (R) clockwise or counterclockwise as necessary. Step 10: 8pcs 8pcs ° P-9-11 V-2.0...
- Page 10 Step 11: Step 12: 4pcs 2pcs P-10-11 V-2.0...
- Page 11 Step 13: 4pcs 4pcs 2pcs 2pcs WALL Before applying the bracket to the wall, check pipes and cables that may be hidden behind. WARNING: Manufacturer assumes no liability for improper installation or excessive loads placed on screws or bracket. This wall anchor is not a substitute for proper adult supervision.
