Range Name : NELL
Box1 dimensions : W188xD43xH19cm
DUSK.COM
Product dimensions : W110xD36.5xH173cm
LIVING I BEDROOM I DINING

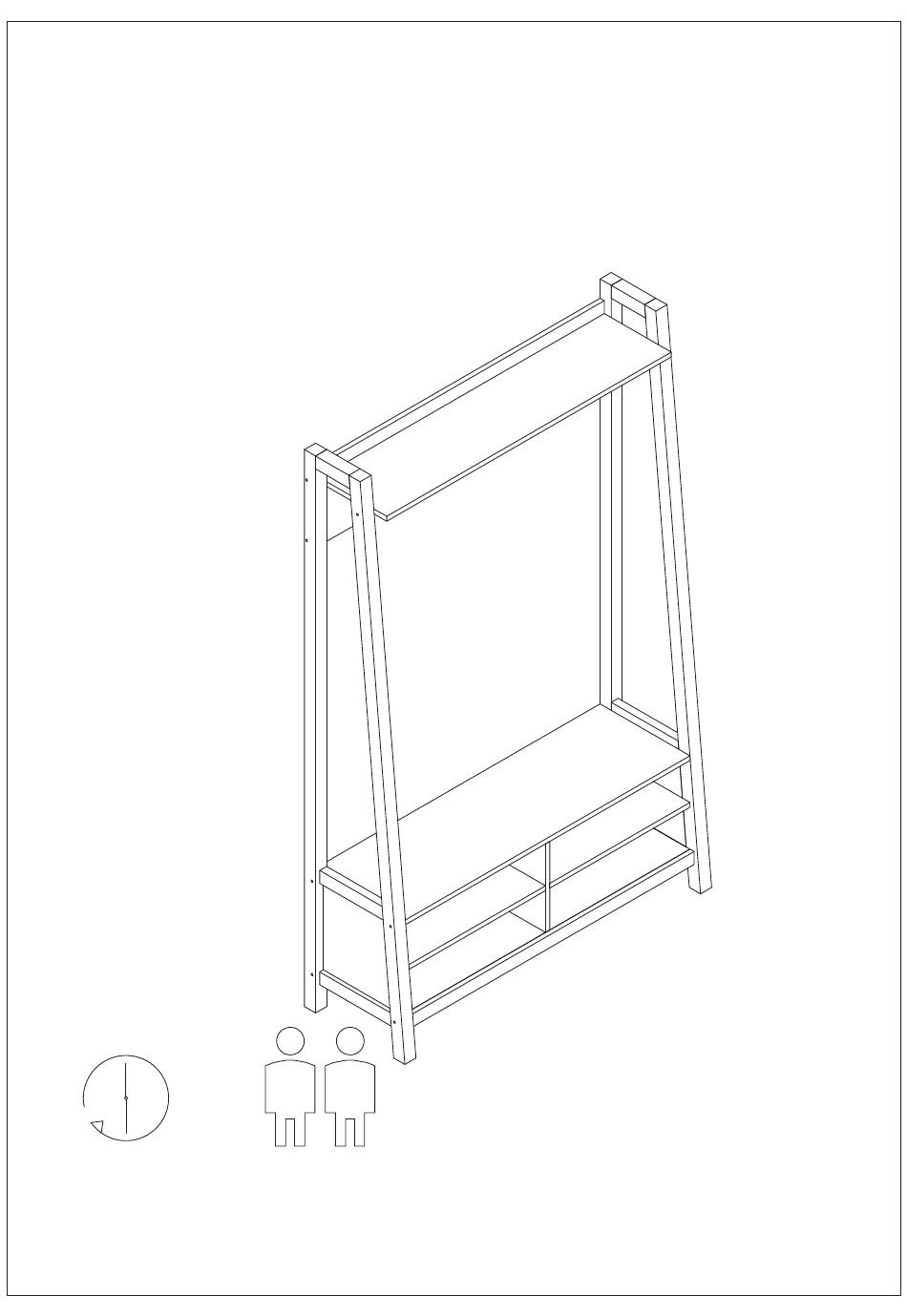

Nell Hallway Shelf with Hooks
Up to 30 minutes
Two person
assembly time
assembly
This product is intended for domestic use only,not for commercial purposes.
P-1-13
V-2.0
Advertisement
Related Manuals for DUSK Nell Hallway Shelf with Hooks
Summary of Contents for DUSK Nell Hallway Shelf with Hooks
- Page 1 Range Name : NELL Box1 dimensions : W188xD43xH19cm DUSK.COM Product dimensions : W110xD36.5xH173cm LIVING I BEDROOM I DINING Nell Hallway Shelf with Hooks Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Hallway Shelf with Hooks frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
- Page 3 Parts list P-3-13...
- Page 4 Parts list Before you begin building your Nell Shelf with Hooks,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No Part Number Part Description Quantity...
- Page 5 1.Attach parts to the panels. M6*35mm Bolt 10pcs 2.Attach strips to the panels. Ø6x30mm Dowel 5pcs Ø15x9.5mm Cam Lock 6pcs P-5-13...
- Page 6 3.Attach top to the back panel. Ø6x30mm Dowel 2pcs M4*35mm Screw 3pcs Vertical nut 6pcs 4.Attach panels to the frame. Ø6x30mm Dowel Ø15x9.5mm Cam Lock P-6-13 4pcs 4pcs...
- Page 7 5.Attach bottom panel and mid leg to the frame. Ø6x30mm Dowel 2pcs M4*35mm Screw 2pcs 6.Attach parts to the to frame. Vertical nut 8pcs P-7-13...
- Page 8 7.Attach parts to the panels. M6*35mm Bolt P-8-13 4pcs...
- Page 9 8.Attach right side frame to the frame Ø4mm Allen key M6*70mm Screw Ø6x30mm Dowel 5pcs 11pcs P-9-13...
- Page 10 9.Attach life side frame to the frame M6*70mm Screw Ø4mm Allen key Ø6x30mm Dowel P-10-13 7pcs 11pcs...
- Page 11 10.Attach parts to the to frame. Pothook Foot Gasket M3*14mm Screw Ø15x9.5mm Cam Lock 4pcs 8pcs 4pcs 4pcs P-11-13...
- Page 12 11.Assemble the plastic buckles,hole gasket and anti-fall rope. 4x14mm Anti-fall rope Gasket Plastic buckle Hole Gasket M6*70mm Screw Ø4mm Allen key M4*14mm Screw M3*16mm Screw 2pcs 4sets 45pcs 2sets P-12-13...
- Page 13 WARNING: Please make the choice of screws according to your own wall for wall locking.In order to prevent overturning this product must be used with the wall attachment device provided. SCIANA P-13-13...
