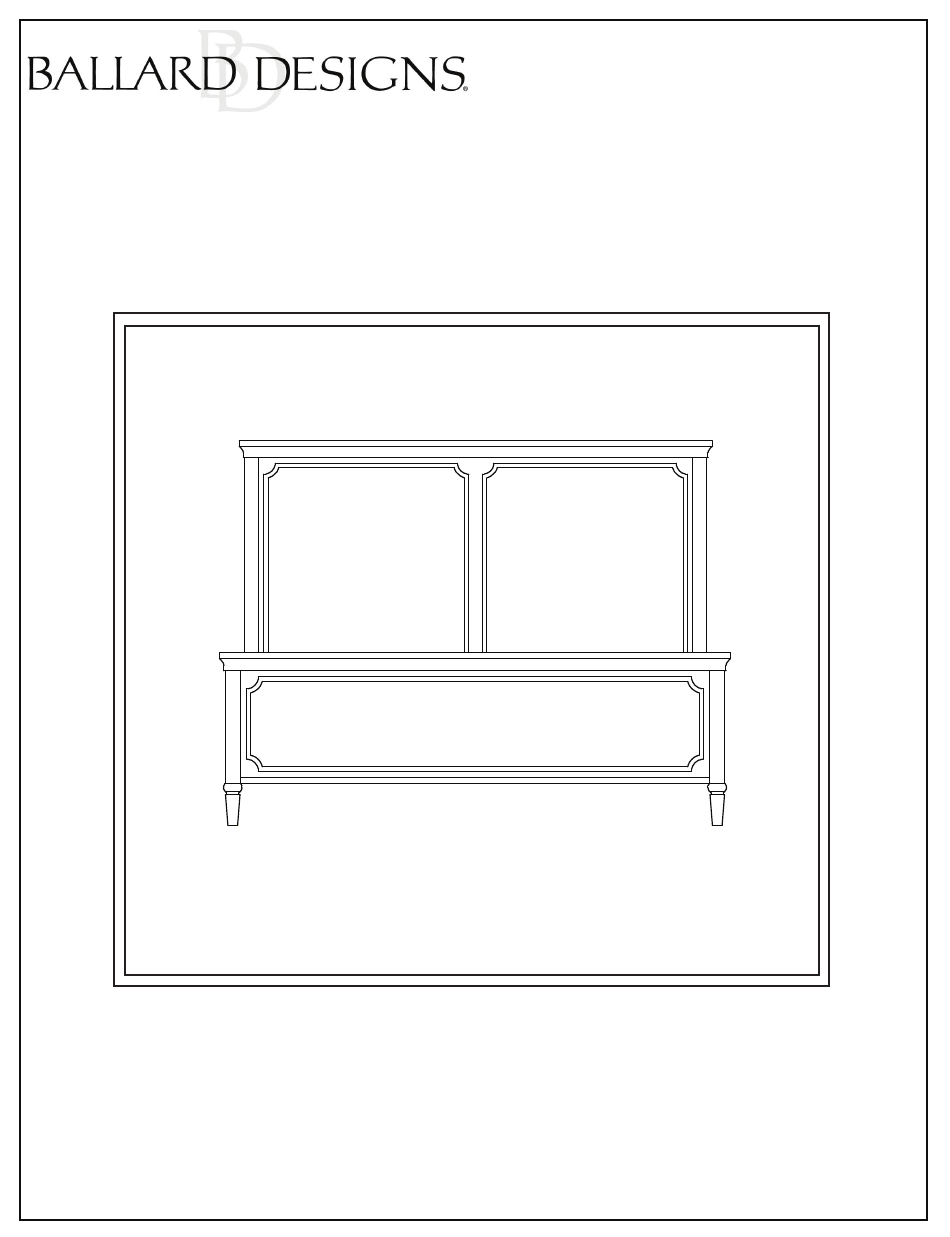

PRODUCT NAME: Isabella Bed
ITEM NUMBER: MB405
DIMENSIONS OF ITEM ASSEMBLED: King: 57"H x 84 1/2"W x 86"D
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
UPDATED: 4/12/2016
Queen: 57"H x 68 3/4"W x 86"D
Full: 57"H x 62 1/2"W x 82"D
Customer Service: 800-367-2810
Online: www.ballarddesigns.com
MADE IN INDONESIA
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs Isabella Bed
Summary of Contents for Ballard Designs Isabella Bed
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Isabella Bed ITEM NUMBER: MB405 DIMENSIONS OF ITEM ASSEMBLED: King: 57”H x 84 1/2”W x 86”D Queen: 57”H x 68 3/4”W x 86”D Full: 57”H x 62 1/2”W x 82”D PRODUCTS ARE NOT INTENDED FOR COMMERCIAL USE.
- Page 2 NOTE: We recommend setting this Bed up in it’s final destination. Ltr. Qty. Hardware Included Bolts TOOLS NEEDED: -Assembly requires 2 or Nuts more people. -Requires a screwdriver. Washers Screws Wrench Ltr. Qty. Components Headboard (G) Footboard (F) Side Rails (H) Support Slats (I) Support Feet (J) Customer Service: 800-367-2810...
- Page 3 STEP 1: Screw the Bolts (A) into the Headboard (G). Align and insert the Side Rails (H) into the Headboard. Tighten a Washer (C) and a Nut (B) onto each Bolt (A) using the Wrench (E). Repeat this for both corners of the Headboard (G) and the Footboard (F). STEP 2: Remove the plastic tube from the bolt on the end of each Support Foot (J) and screw them into the pre-drilled hole in every Support Slat (I).
- Page 4 STEP 3: Align the holes at the ends of the Support Slats (I) with the pre drilled holes in the lips of the Side Rails (H). Attach the Slats to the Side Rails using the Screws (D). Tighten all Screws (D) completely. STEP 4: If the assembled Bed is uneven, adjust the levelers on the bottom of each Support Foot (J) by twisting them clockwise or counterclockwise until the assembly is even.
