Summary of Contents for Ballard Designs Giselle Bed UM146

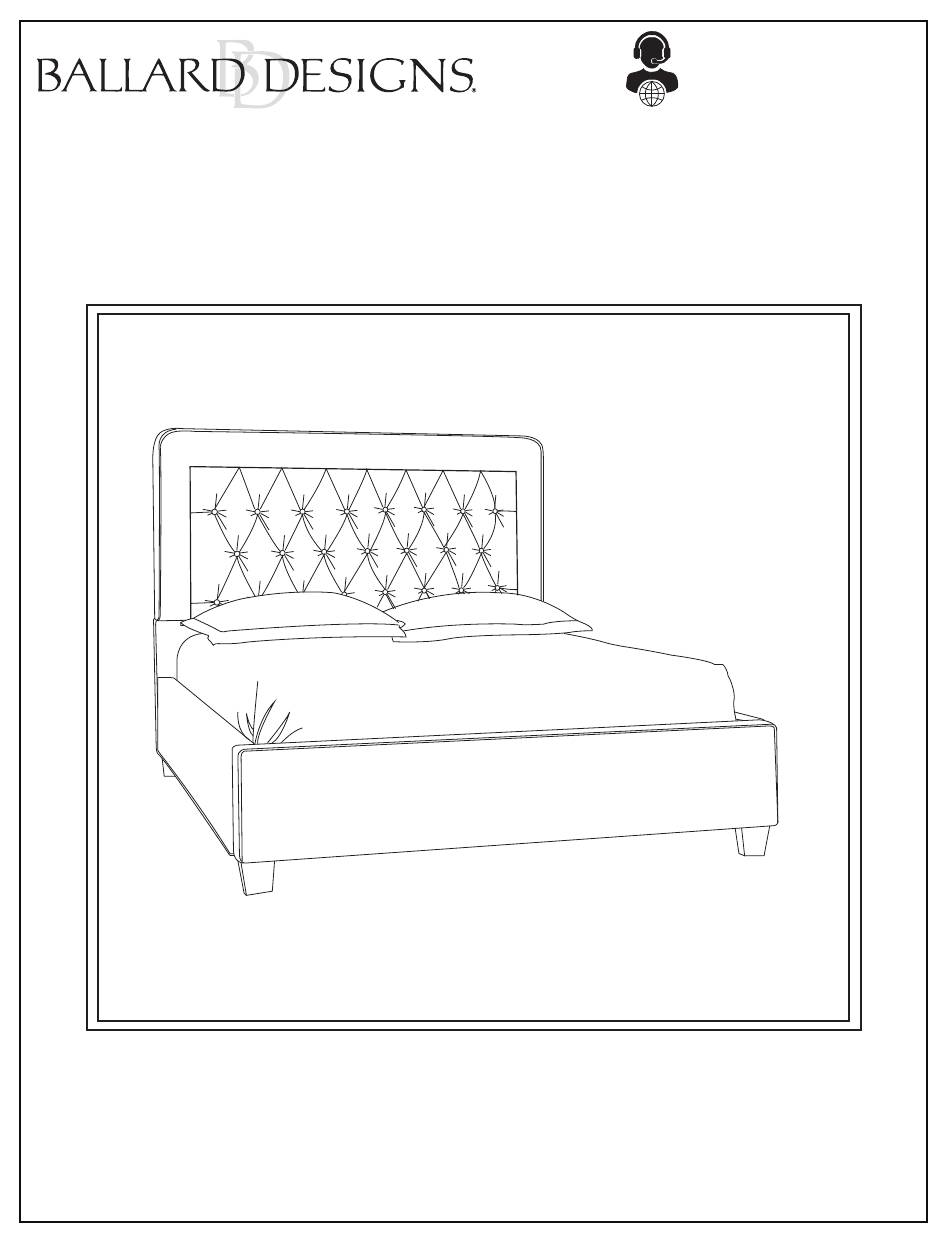

Page 1
Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Giselle Bed* King-Queen-Full ITEM NUMBER: UM146/UM147/UM148 UM177/UM176/UM175 ASSEMBLED DIMENSIONS: King- 56 1/2”H x 83”W x 90”D Queen- 56 1/2”H x 63 3/4”W x 90”D Full- 56 1/2”H x 59”W x 85”D *Tufted (illustrated) and Untufted Beds feature identical assembly process. NOTE: Mattress, Bedding and Pillows not included.
Page 2
Assemble in location for intended use. NO TOOLS REQUIRED -Two person assembly suggested Ltr. Qty. Components Legs (A) PROTECT YOUR FLOORS Lift Bed when moving. Do not slide over floor surface. Slats (B) Headboard (C)* Side Rails (D) Footboard (E) *Tufted (illustrated) and Untufted Beds feature identical assembly process.
Page 3
Assemble in location for intended use. STEP 1: Attach Side Rails (D) to Headboard (C) and Footboard (E). Engage hooks and push down to secure. NOTE: If necessary, gently tap down with a Rubber Mallet. PROTECT FABRIC from mallet! STEP 2: Insert, turn and tighten Leg (A) into center for each Slat (B). PROTECT YOUR FLOORS Lift Bed when moving.
Page 4
Assemble in location for intended use. STEP 3: Set each Slat (B) into place between Side Rails (D). Fit notch around each metal peg. NOTE: If necessary, adjust Levelers on bottom of each Leg (A) to ensure contact with floor. LEVELERS: Legs are equipped with Rotary Levelers installed under each.
This manual is also suitable for:
Giselle bed um147Giselle bed um148Giselle bed um177Giselle bed um176Giselle bed um175
