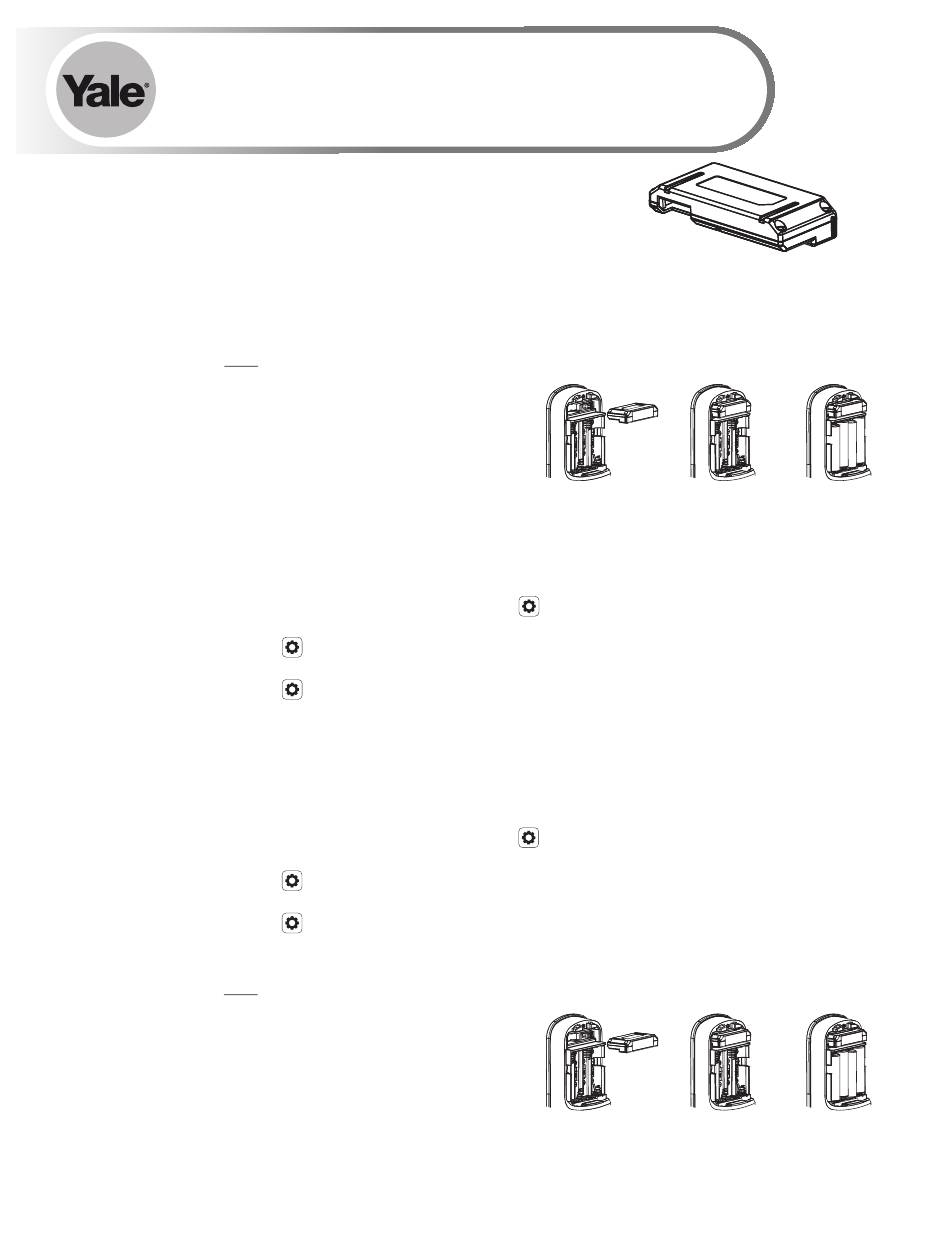

Yale Z-Wave Plus 800 Series Installation Manual

Please use this procedure only when network primary controller is missing
or otherwise inoperable.
Adding a Yale Z-Wave
1. Install Yale Smart Module into slot above battery compartment
Batteries
IMPORTANT:
• Remove battery cover
• Remove batteries
• Insert Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
2. Open Z-Wave system's smart home or alarm app on your smartphone or tablet
3. If you have Smart Start* enabled with your Z-Wave System follow in-app prompts to add a new device
If you don't have smart start or are not sure, follow steps 4 - 6
4. On your lock keypad, enter your master entry code followed by the
5. Press the 7 key followed by the
6. Press the 1 key followed by the
Removing a Yale Z-Wave® Smart Module from your Assure Lock & Z-Wave System
1. Open Z-Wave system's smart home or alarm app and follow instructions for removing a device
2. On your lock keypad, enter your master entry code followed by the
3. Press the 7 key followed by the
4. Press the 3 key followed by the
5. Remove Yale Smart Module from slot above battery compartment
IMPORTANT: Batteries must be removed before removing Yale Smart Module:
• Remove battery cover
• Remove batteries
• Remove Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
6. If you're adding a new Yale Smart Module, follow instructions included with it
*SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart
inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in network vicinity.
Yale Z-Wave Plus 800 Series Smart
® ®
Module Installation Guide
Smart Module to your Assure Lock & Z-Wave System
®
must be removed before inserting Yale Smart Module:
icon
icon
icon
icon
icon
icon
P/N AYR-MOD-ZW3-MNL-0015 Rev A
