Yale Z-Wave Plus YRMZW2-US Installation Manual

Please use this procedure only when network primary controller is missing
or otherwise inoperable.
Adding a Yale Z-Wave Plus Smart Module to your Assure Lock & Z-Wave System
1. Install the Yale Smart Module into the slot above the battery compartment
IMPORTANT: The batteries must be removed before removing the Yale Smart Module:
• Remove battery cover
• Remove batteries
• Insert or remove Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
2. Open the Z-Wave system's smart home or alarm app on your smartphone or tablet
3. Follow the in-app instructions for adding a new device
4. On your lock keypad, enter your master entry code followed by the
5. Press the 7 key followed by the
6. Press the 1 key followed by the
Removing a Yale Z-Wave Plus Smart Module from your Assure Lock & Z-Wave System
1. On your lock keypad, enter your master entry code followed by the
2. Press the 7 key followed by the
3. Press the 3 key followed by the
4. Open the Z-Wave system's smart home or alarm app and follow the instructions for
removing a device
5. Remove the Yale Smart Module from the slot above the battery compartment
IMPORTANT: The batteries must be removed before removing the Yale Smart Module:
• Remove battery cover
• Remove batteries
• Insert or remove Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
6. If you're adding a new Yale Smart Module, follow the instructions included with it

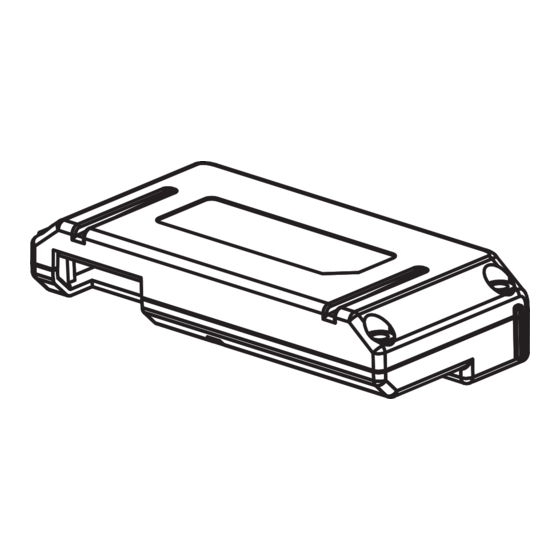

Yale Z-Wave Plus Smart Module
®
®
icon
icon
®
icon
icon
® ®
Installation Guide
icon
icon
P/N AYR202-ZW-INSTAL-FUL Rev E
