Yale MD-05 Installation Manual

Adding a Yale Access Smart Module to the Assure Lock

1. Install Yale Smart Module into slot above battery

compartment.

IMPORTANT: Batteries must be removed before inserting Yale Smart

Module:

• Remove battery cover

• Remove batteries

• Insert Yale Smart Module

• Reinstall batteries

• Reinstall battery cover

1. Open the Yale Access app and follow instructions to remove

device (if it is enrolled in a network).

2. Remove Yale Smart Module from slot above battery

compartment.

IMPORTANT: Batteries must be removed before removing

Yale Smart Module:

• Remove battery cover

• Remove batteries

• Remove Yale Smart Module

• Reinstall batteries

• Reinstall battery cover

• FOR OEM INSTALLATION ONLY

•

FOR USE ONLY IN A YALE/ASSA ABLOY FIXED LOCATION LOCK

•

ANY OTHER USE REQUIRES SEPARATE APPROVAL

Yale

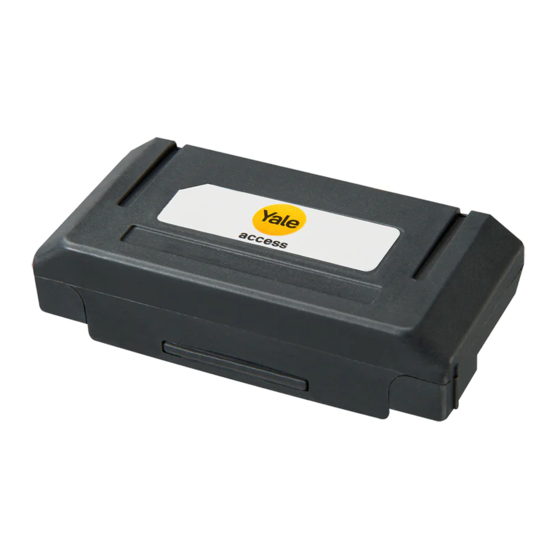

Access Smart Module MD-05

OEM Installation Guide
