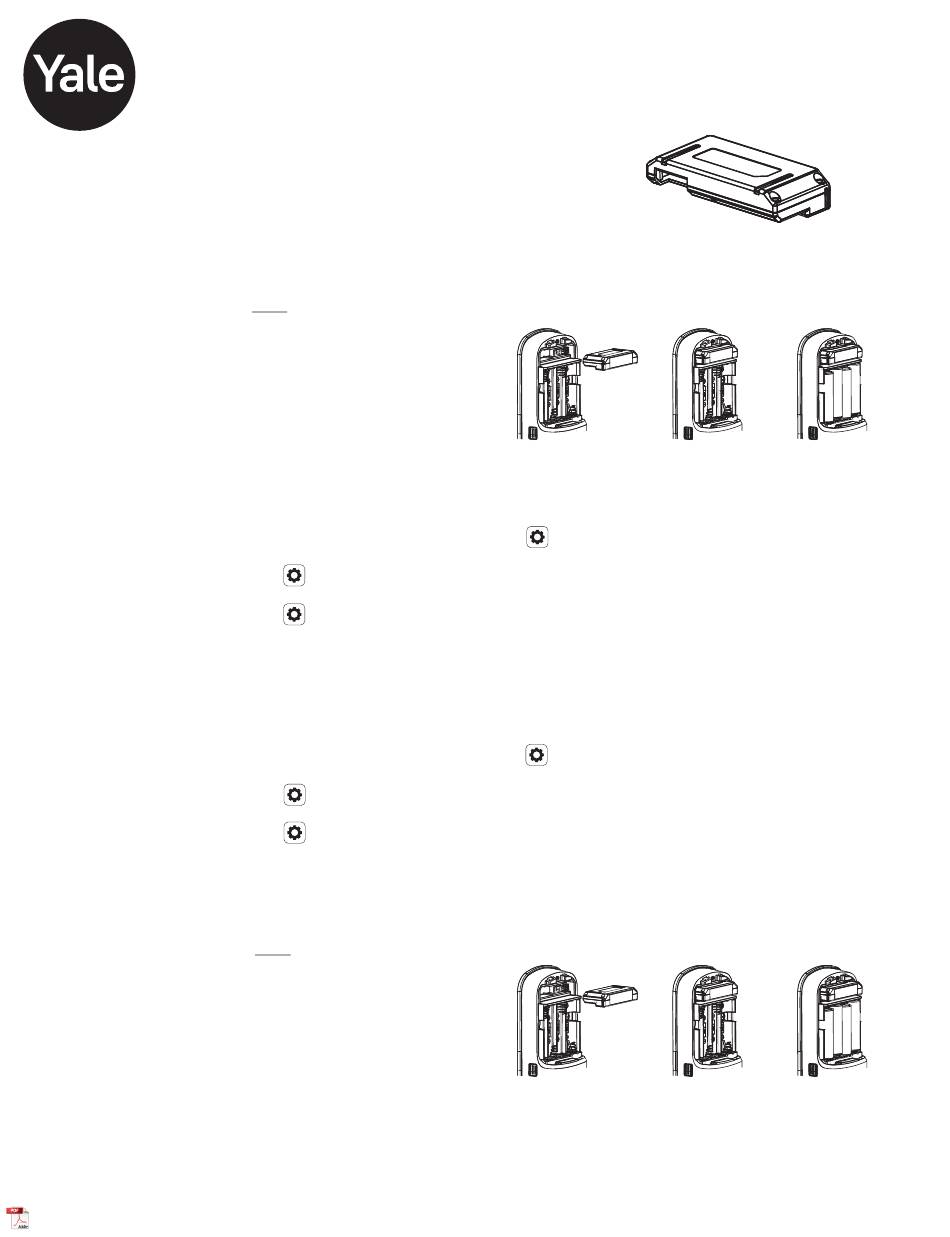

Adding a Yale Z-Wave Plus™ Smart Module to your Assure Lock & Z-
Wave™ System
Please use this procedure only when the network primary controller is
missing or otherwise inoperable
1. Install the Yale Smart Module into the slot above the battery compartment
IMPORTANT: The batteries must be removed before removing the Yale Smart Module:
• Remove battery cover
• Remove batteries
• Insert or remove Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
2. Open the Z-Wave system's smart home or alarm app on your smartphone or tablet
3. Follow the in-app instructions for adding a new device
4. On your lock keypad, enter your master entry code followed by the
5. Press the 7 key followed by the
6. Press the 1 key followed by the
Removing a Yale Z-Wave Plus Smart Module from your Assure Lock & Z-Wave System
1. On your lock keypad, enter your master entry code followed by the
2. Press the 7 key followed by the
3. Press the 3 key followed by the
4. Open the Z-Wave system's smart home or alarm app and follow the instructions for
removing a device
5. Remove the Yale Smart Module from the slot above the battery compartment
IMPORTANT: The batteries must be removed before removing the Yale Smart Module:
• Remove battery cover
• Remove batteries
• Insert or remove Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
6. If you're adding a new Yale Smart Module, follow the instructions included with it
Trusted every day
Yale
Z-Wave Plus™ Smart
®
Module Installation Guide
icon
icon
icon
icon
P/N AYR202-ZW-INSTAL-FUL Rev F
icon
icon
Part of ASSA ABLOY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yale Z-Wave Plus
Summary of Contents for Yale Z-Wave Plus
- Page 1 6. Press the 1 key followed by the icon Removing a Yale Z-Wave Plus Smart Module from your Assure Lock & Z-Wave System 1. On your lock keypad, enter your master entry code followed by the icon 2. Press the 7 key followed by the icon 3.
- Page 2 Yale Home could void the user's authority to operate the equipment. This device is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. This device must be used in conjunction with a Security Enabled Z-Wave Controller in order to fully utilize all implemented functions.
- Page 3 Copyright © 2015, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. An ASSA ABLOY Group brand Reproduction in whole or in part without the express written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited. 3/4" Dia. Thru to 1"...
- Page 4 Default settings and pressing the key, • Only the Master can enable/disable Lockout Mode. Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Language Setting English in bold. the red padlock icon appears Tamper Alert: Audible alarm sounds if attempting to forcibly remove outside lock from door.
- Page 5 Yale Locks Z-Wave Plus™ System Integrators Guide Yale NexTouch Exit Trim Commercial Grade Lock Document Revision: 2...
-
Page 6: Table Of Contents
Contents Yale Z-Wave Plus Product Info ........................... 3 Supported Command Classes ........................3 Association Table ............................4 Notifications Table ............................4 Configurable Parameters ..........................6 * Command Class Requires Security... -
Page 7: Yale Z-Wave Plus Product Info
Yale Z-Wave Plus Product Info Manufacturer ID: Assa Abloy (0x0129) Z-Wave Device Type: Door Lock Keypad Z-Wave Role Type: Listening Sleeping Slave (LSS) Product ID: 0x1200 for NTT610/620/630/640-ZW2 (Exit Device) 0x0C0C for NTT612-ZW2 (2nd Generation Touch Screen Exit Device) ... -
Page 8: Association Table
Association Table Group ID Maximum Nodes Description Commands Command_Class_Battery, Battery_Report ; Command_Class_Notification, Notification_Report; Lifeline Command_Class_Configuration, Configuration_Report; Command_Class_Device_reset_locally, Device_Reset_locally_notification Notifications Table Alarm Alarm Reports Alarm Level Description type 0x00 Master code was changed at keypad Master Code changed. 0xFB Master code was changed over RF 0x70 0x(01-max User added... - Page 9 Enabled/Disabled users) ** - The Yale NexTouch Exit Rim Trim locks also supports a 3 low battery alarm, too low to operate. This alarm is sent out as a Battery Report (with value = 0xFF) through the Battery Command Class. This...
-
Page 10: Configurable Parameters
Configurable Parameters Parameter Configuration Parameters Size Description Number Level control, 1 = High Volume, 2 = Low Volume, 3 = Silent. Silent mode on/off 1 byte Default is 2 or Low Volume Auto Relock on/off 1 byte 0x00 = OFF, 0xFF = ON default is 0x00 or OFF Auto Relock time 1 byte 10 to 180 seconds default is 30 seconds...
