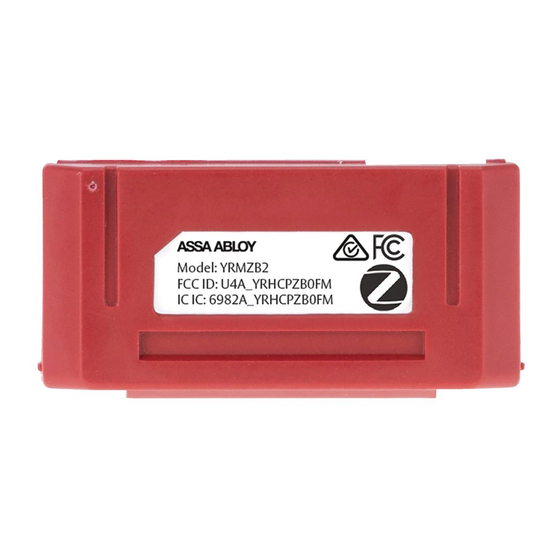

Yale Real Living YRMZB2 Installation And Programming Instructions

Installing the ZigBee Module

IMPORTANT: the batteries must be removed prior
to removing and/or inserting the network module:
• Remove battery cover.
• Remove batteries.
• Remove and/or insert network module.
• Reinstall batteries.
• Replace cover.

Enrolling/Unenrolling the Network Module:

It is recommended that lock is programmed through the centralized user interface (PC or
hand-held device) to ensure communication between the lock and the controller unit. The
network controller first needs to be in enrollment or exclusion mode for the lock to be
enrolled or unenrolled from network.

To Enroll the Module:

• Enter the 4-8 digit Master PIN code followed by the
• Press the
• Press the

To Unenroll the Module:

• Enter the 4-8 digit Master PIN code followed by the
• Press the
• Press the
Installation and Programming Instructions
®
key followed by the
key followed by the
key followed by the
key followed by the
Yale Real Living™ ZigBee Module
key.
key.
key.
key.
®
key.
key.
P/N AYR200-ZB-INSTAL-FUL Rev E
