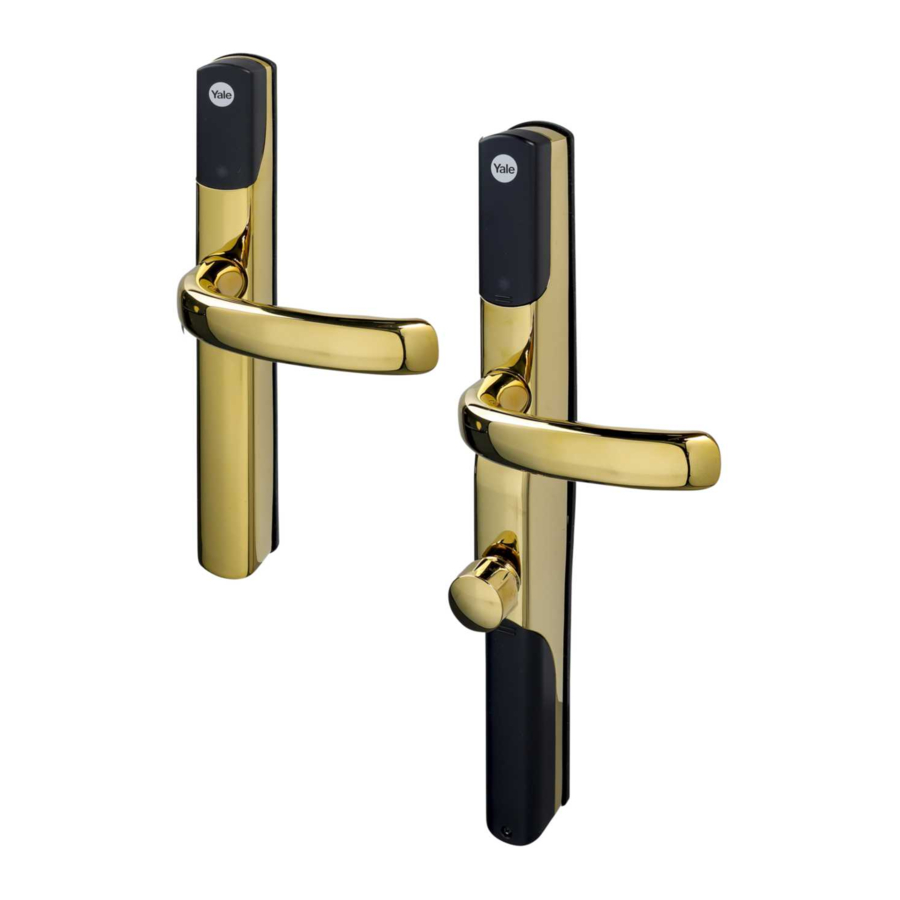

Yale Conexis Manual

Installing the Device

Installing the Module

  1. Remove battery cover
    Using a Phillips-head screwdriver, loosen the battery cover screw. Slide the cover away from the lock.
  2. Remove a battery
    Remove the batteries from your lock to power it off. Wait approximately 10 seconds for the lock to fully power down.
  3. Remove the Module Cover
    Slide the module cover up to remove this and access the slot
  4. Install the Module
    Insert the Yale Access module into the slot in the module compartment. Make sure it is properly seated in the lock.
  5. Replacing the battery cover
    Restore power to the lock by reinserting the batteries. The light on the front of the lock will flash blue and play a fanfare noise, once this has happened please proceed.
  6. Registering the Module & replacing the cover
    Follow the below steps to register the Yale Access module with your lock.


    Installing Yale Access Application
    Before you get started, download the Yale Access App from either the Apple Store or Google Play depending on whether you use an iOS or Android phone:

www.apple.com

play.google.com

Yale Access devices come with a QR code that can be used to set up the device in the Yale Access App. This code is included on the Yale Access Module and is helpful during setup. If you no longer have a QR code associated with the device, the serial number can be used during setup.

  1. Open the Yale Access App
  2. Select the menu in the top-left corner
  3. Select Set up a Device to access the QR code scanner
  4. Scan the code. If you are unable to scan it, select Can't Scan the Code to set up with the Serial Number, which is the 10-digit number located on the sticker inside the battery cover.
  5. Follow in-app instructions to complete setup steps
  1. Set up the Yale Connect Wi-Fi Bridge
    See below article for step-by-step instructions to set up the Yale Connect Wi-Fi bridge with your lock.

Setting Up Yale Connect Wi-Fi Bridge

Yale Connect Wi-Fi Bridge serves as a Wi-Fi bridge between our Servers and your Smart Lock so you can lock and unlock your Smart Lock remotely, right from your phone. With Yale Connect Wi-Fi Bridge, you can instantly let visitors into your home when you're not there.

Requirements

  • Make sure your device has Wi-Fi turned on (Settings > Wi-Fi)
  • Make sure your phone is connected to your home Wi-Fi network (Yale Connect Wi-Fi Bridge is compatible with 2.4 gHZ Wi-Fi)
  • The Yale Connect Wi-Fi Bridge requires an active Yale Smart Lock and needs to be installed using a compatible phone. Please visit our phone compatibility page to ensure that your phone is compatible.


To install your Yale Connect Wi-Fi Bridge:
For optimal performance and reliability, plug Yale Connect Wi-Fi Bridge into a power socket that is within 15 feet on an opposite or adjacent wall from your Yale Smart Lock.

  1. Wait for the flashing green light on your Yale Connect Wi-Fi Bridge. If you don't see the flashing green light press and hold the button on your Yale Connect Wi-Fi Bridge for 5 seconds.
  2. In the Yale Access App, go to the side menu (upper left), tap Set Up New Device.
  3. Choose Set Up a Connect Bridge.
  4. Choose a lock with which to associate your Yale Connect Wi-Fi Bridge.
  5. When prompted, plug connect Bridge into a socket near your door and then follow the in-app instructions.

The accessory setup interface will ask you to choose your home Wi-Fi network. Once your Yale Connect Wi-Fi Bridge has successfully joined your home Wi-Fi network, the Yale Access App will check the signal levels of your Wi-Fi and bluetooth connections. If your signal levels are good, you're almost finished. If your signal levels are low, you will be guided through adjusting the location of your Yale Connect Wi-Fi Bridget to improve its connection.
If you experience issues joining your Yale Connect Wi-Fi Bridge with your Wi-Fi network, see troubleshooting steps.
Yale Connect Wi-Fi Bridge displays its current status through different LED indicator lights on the front of the device. See and determine what the LED indicators on Yale Connect Wi-Fi Bridge mean as well as any troubleshooting steps you can take to improve functionality.
