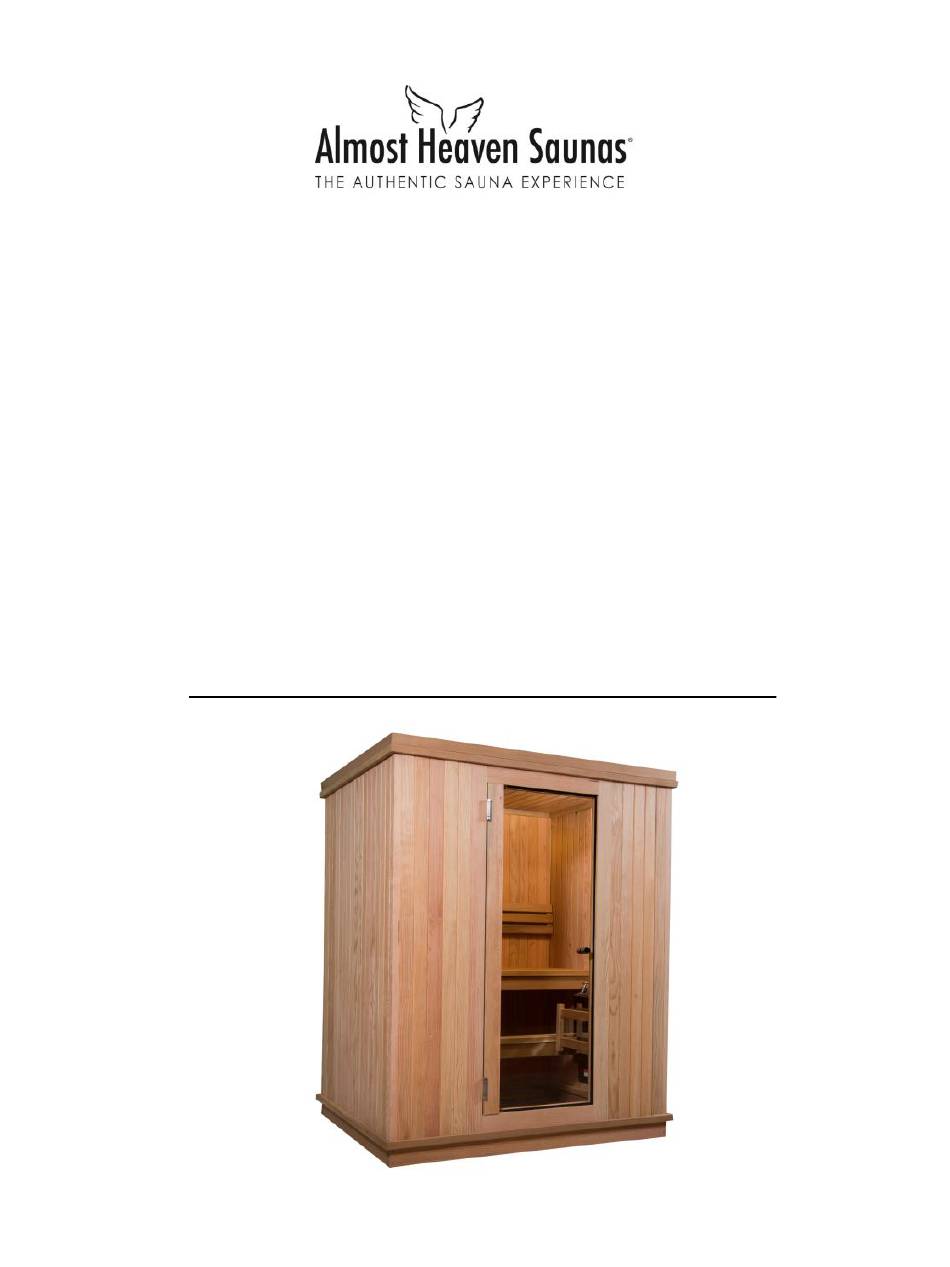

- Page 1 Madison Sauna Installation & Owner’s Manual Revised February 2017...
- Page 2 (Installation on car- peted surface is not recommended.) ASSEMBLY You should use two people for the assembly of the Madison Sauna. The wall and roof sections are large and need two people to lift and hold in place during assembly. BASIC TOOLS...
- Page 3 1. Connect the 4 FLOOR RISERS Your existing floor will serve as the floor for your sauna. The pre-fabricated rails and risers will be placed on your existing floor and provide the structural support for the sauna room. The 4 floor risers are pre-drilled and are assembled with 2”...
- Page 4 ILLUSTRATION 1 The 9 wall sections, A– I, will be positioned in the grooves of the Completed completed wall support section as Wall shown. Support 4. Position WALL SECTION A & B Position Wall Sections A & B in the groove of the rail on the left rear corner of the sauna according to the guide on ILLUSTRATION 1.
- Page 5 7. Position WALL SECTION C Position Wall Section C on the right rear side of the sauna according to the guide on ILLUSTRA- TION 1. NOTE: Wall Section C will attach to Wall Sec- tion B by way of the tongue and groove profile but will not be fastened with screws.
- Page 6 8. Position WALL SEC- 9. Position DOOR SECTION TION H Position Wall Section H on Position Door Section G be- the left front side of the sauna tween sections F & H. according to the guide on IL- LUSTRATION 1. Using 2” screws and pre-drilled holes, fasten Wall Section I to Wall Section H.
- Page 7 12. Attach ROOF SUPPORT over walls Position the completed Roof Support over the wall sections. Once in place on all 4 sides, use 2” screws to attach Roof Support to wall sections. Use 4 evenly spaced screws per rail. NOTE: Tap the Roof Support firmly in place with a rubber mallet so wall sections are fully in- serted into the groove before screwing into place.
- Page 8 16. Attach UPPER BENCH Using 2” screws, attach the Upper Bench to the Bench Supports using the pre-drilled holes in the Upper Bench. NOTE: After attaching the bench to the two bench supports, look under the bench and also screw the bench to the back wall through the pre- drilled holes and with 2”...
- Page 9 20. Attach LONG BACK 18. Measure Height for 19. Drill Hole for LIGHT REST LONG BACK REST CORD Use 2” screws and pre- The LED lighting comes in- Measure the desired posi- drilled holes to attach the tion at which you will lat- stalled on the back of the Back Long Back Rest to Wall er install the Long Back...
-
Page 10: Heater Installation
24. HEATER INSTALLATION Mount the heater as shown in the manufacturer's instructions. The heater should be mounted on Wall Section E, over the vents and 7” from the floor of the sauna. All the necessary hardware is supplied with the heater. Drill a hole below and behind the heater to run the wire and/or conduit according to local elec- trical codes. - Page 11 26. DOOR HINGE ADJUSTMENT The tension on the sauna door hinges needs to be set in order for the door to close on its own. Look for the small hinge box that is included with your sauna kit. The hinges have been installed on the sauna, but the box contains both the hex wrench and set pins needed to adjust your door tension.
-
Page 12: Operation
OPERATION After the sauna has been installed, sweep down the inside to remove any sawdust and wood shavings, and then vacuum completely. Using a damp cloth and warm water, wipe down the entire sauna including the benches to remove any remaining dirt, dust and debris. Rinse off the sauna stones and install them in or on the heater in accordance with the heater manufacturer’s instructions.
