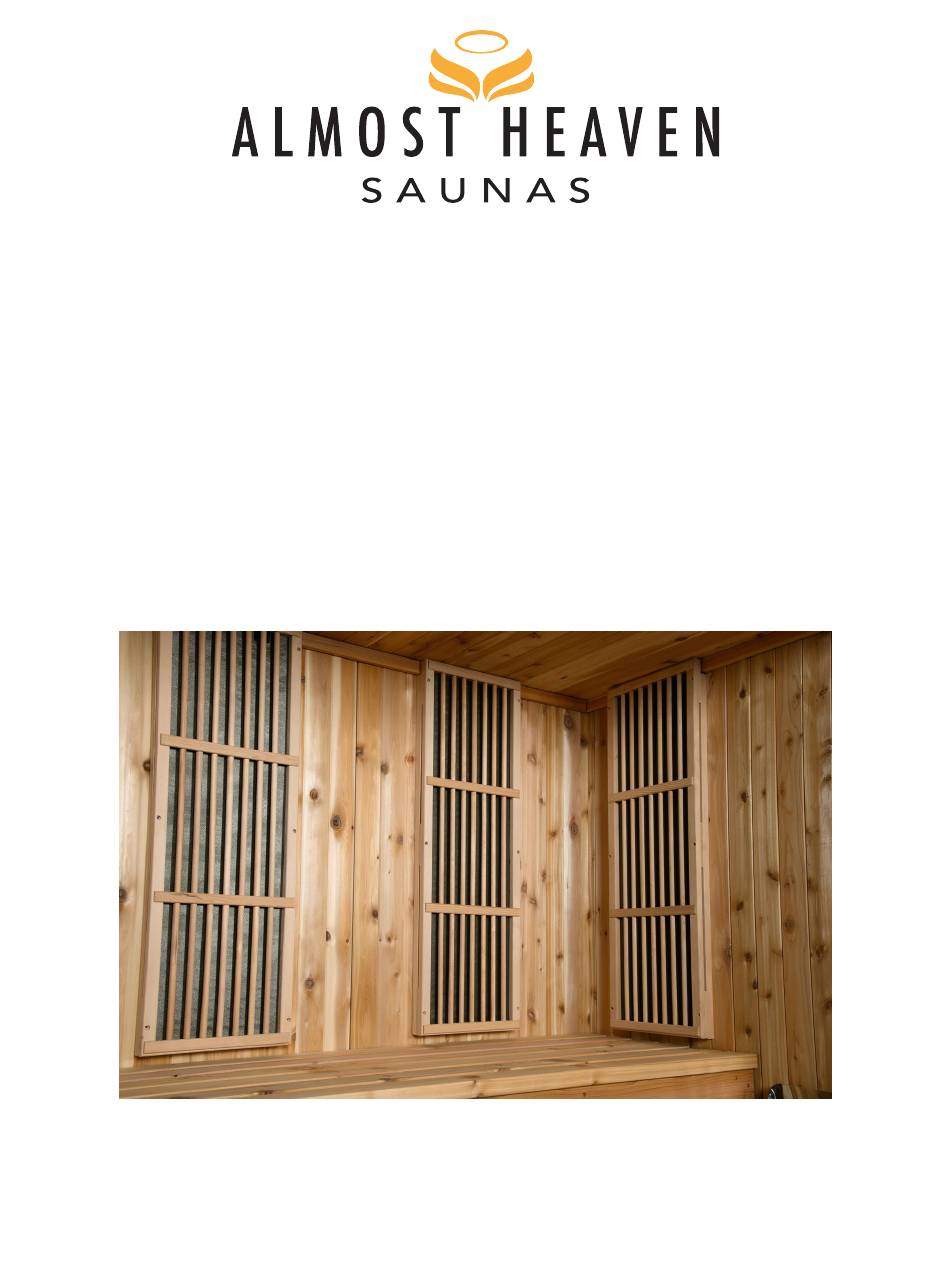

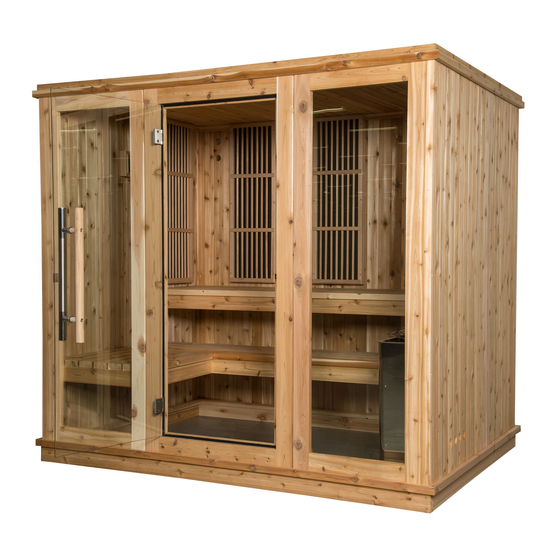

- Page 1 ® IR Panel Retrofit Installation & Owner’s Manual...
-
Page 2: Important Safety Instructions
IR Panels (4 for Auburn, Grayson, Madison, Rainelle, Serena, Spectacle & 5 for Bridgeport, Oasis) IR Panel Power Cords (3 for Auburn, Grayson, Madison, Rainelle, Serena, Spectacle & 4 for Bridgeport, Oasis) IR Panel Power Cord Covers (4 for Spectacle only) Control Panel Control Panel Housing &... - Page 3 10 1 2 " 17 3 4 " 2 1 4 " 2 1 4 " 18" Front of Unit 2" Auburn/Bluestone Ceiling 2" 2" 8 3 4 " Front of Unit Madison Ceiling page 3 IR PANEL RETROFIT INSTALLATION MANUAL...
- Page 4 16" 3 1 2 " 10 3 4 " 10 3 4 " 10 1 2 " 2 1 4 " 2 1 4 " 2 1 4 " 17 3 4 " 18" 2" 2" 2" 18 3 4 " 1 1 2 "...
- Page 5 13" 6 3 4 " 13 1 4 " 9" 10 1 2 " 1 3 4 " 1 3 4 " 1 3 4 " 17 3 4 " 18" 1 3 4 " 1 3 4 " 1 3 4 " 12 1 4 "...
-
Page 6: Installation
(1). Set the IR panels in the approximate location on the top benches with the cord pointing upwards (2). All units will have an IR panel at each end of the top bench. Auburn, Grayson, Madison and Rainelle have two on the back wall;... - Page 7 Locate the control panel and the control panel housing. Feed the cord from the control panel through the hole in the top of the box (4). In the remaining hole on the left hand side of the ceiling, feed through the control panel cord (5). Once all of these cords are through, you can fasten the ceiling per the traditional sauna manual.
- Page 8 For the Spectacle, the process to install the panels is similar, but the top of the panel is 8” down from the ceiling. Spectacle comes with wire covers to conceal the wires between the panel and the ceiling. Measure down 8” and make a mark to note where the top of the panel goes.
-
Page 9: Light Bar
Model Left Panel Right Panel Back Left Panel Back Right Panel Back Middle Extension Extension Extension Extension Panel Extension Auburn 3 Foot 3 Foot None 3 Foot Bridgeport 6 Foot 6 Foot 3 Foot 3 Foot None Grayson 3 Foot... -
Page 10: Operation
If you have a Bridgeport, Grayson, Oasis, Rainelle, or Serena, you can locate it based on the heater manual. If you have an Auburn, Madison or Spectacle, we recommend you place the sensor on the back wall between the corner and the back right side IR panel. - Page 11 • Do not throw water directly onto the IR panels. This could cause electrocution and damage to the panels. • If any of the power cords become damaged, they must be replaced immediately. Failure to do so could lead to electrocution.
