The TMP6EVM is a prototype evaluation module (EVM) designed to evaluate the silicon-based TMP6131
thermistor. The TMP6xxx is a family of positive temperature coefficient (PTC) thermistors, which the
resistance increases with temperature. This user's guide describes the characteristics, operation, and use
of the TMP6EVM evaluation board. Throughout this document, the terms evaluation board, evaluation
module, and EVM are synonymous with the TMP6EVM.
NOTE: The EVM's SPDT power switch (component S1) is located next to the
LED. Use the S1 switch to change between the USB and battery power modes. The switch
position closest to the micro USB receptacle is the USB power mode and the switch position
closest to the corner is the battery power mode. Refer to
NOTE: Important disclaimer: In the standalone demo mode (without GUI), the system is calibrated to
TMP116 on power reset to remove any initial temperature offset between the TMP6 and
TMP116. In the data logging mode with the GUI, no calibration is applied.
SBOU202 – October 2018
Submit Documentation Feedback

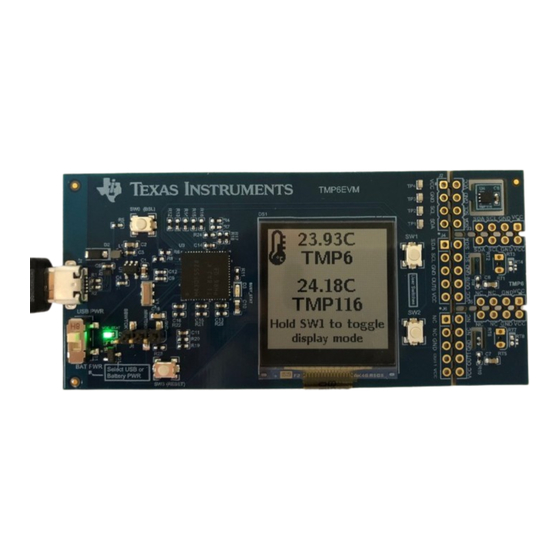

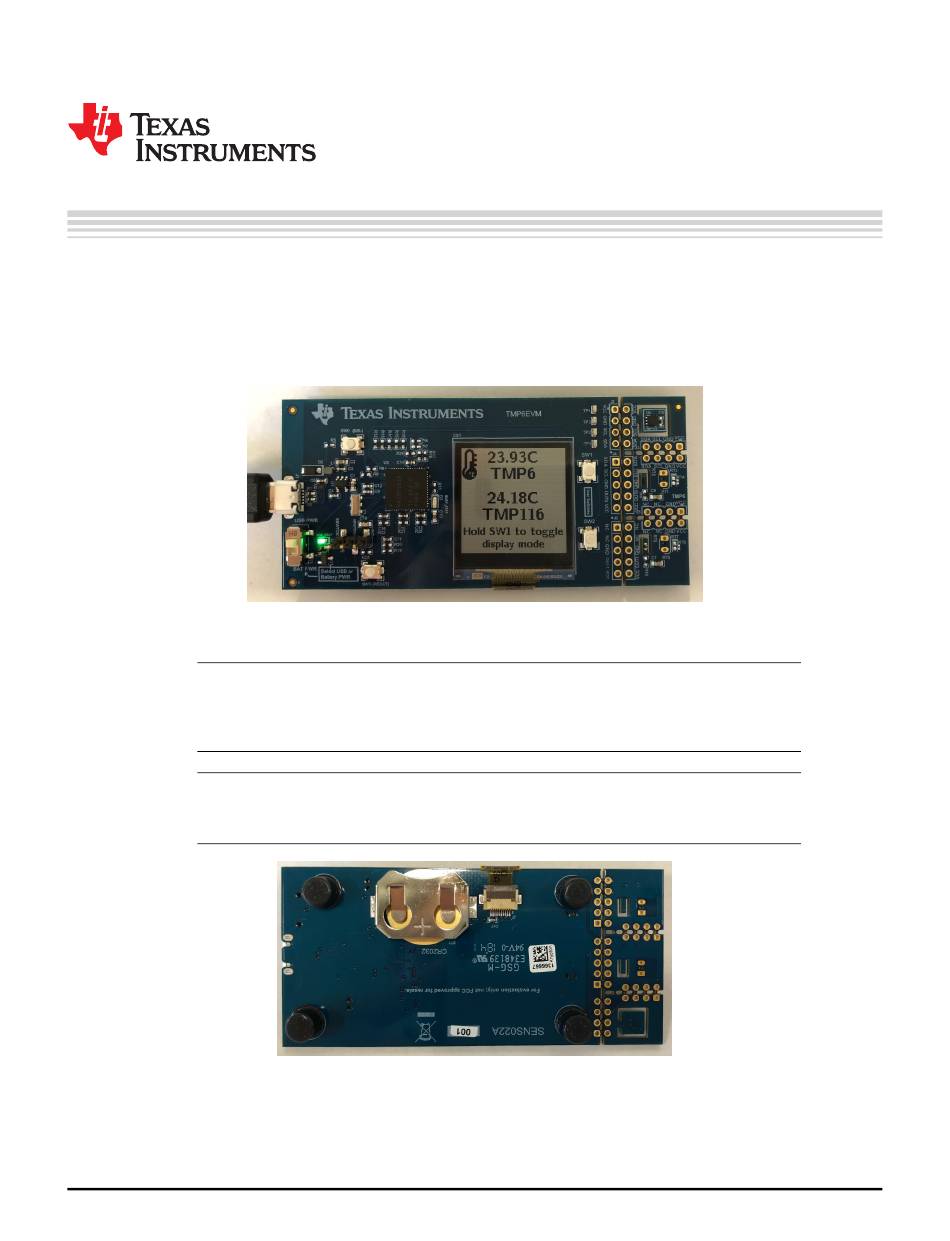

Figure 1. TMP6EVM Top View
Figure 2. TMP6EVM Bottom View
Copyright © 2018, Texas Instruments Incorporated
SBOU202 – October 2018
TMP6EVM User's Guide
green
VCC_STAT
Figure
1.
TMP6EVM User's Guide
User's Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMP6EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TMP6EVM

  • Page 1 SBOU202 – October 2018 TMP6EVM User's Guide The TMP6EVM is a prototype evaluation module (EVM) designed to evaluate the silicon-based TMP6131 thermistor. The TMP6xxx is a family of positive temperature coefficient (PTC) thermistors, which the resistance increases with temperature. This user's guide describes the characteristics, operation, and use of the TMP6EVM evaluation board.
  • Page 2 ......................EVM Bill of Material Trademarks Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 3 Overview The TMP6EVM is an evaluation module designed to evaluate the TMP6131 thermistor. The EVM features the TMP116 high-accuracy local digital temperature sensor (Channel 0), TMP6131 PTC thermistor (Ch1), and an optional analog channel (Ch2). The EVM can be powered either through a micro USB cable or with a CR2032 3-V coin cell battery.
  • Page 4 Overview www.ti.com Figure 4. Quick User's Guide Page Figure 5. EVM LCD Display Indicating Data Logging Mode TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 5 EVM kit, and Figure 6 shows all of the included hardware. Refer to Section 2.3 for the recommended operation conditions. Contact the nearest Texas Instruments Product Information Center if any component is missing. Table 1. EVM Kit Contents ITEM...
  • Page 6 Yes when requested to install drivers. Windows confirms installation of the drivers with the message shown in Figure TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 7 In contrast, the J3 pins are normally open, which is why J3 requires the user to manually short the pins during breakout mode. Figure 9. Daughtercard Required Connections for Using All Three Channels SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 8 (ESD). Customers are advised to observe proper ESD handling precautions when unpacking and handling the EVM, including the use of a grounded wrist strap at an approved ESD workstation. TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 9 The EVM features one digital temperature sensor channel. The TMP116 digital local temperature sensor (U4) has an accuracy of ±0.3°C (maximum) from –40°C to 125°C. This high accuracy sensor is used as a local temperature reference. SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 10 2.4.7 RC Filter The TMP6EVM is designed to support a simple RC low-pass filter (R21 and C15 for Ch1; R22 and C16 for Ch2). The RC filter can be used to suppress electrical interference and to optimize ADC performance. In most analog designs, a filter capacitor is recommended.
  • Page 11 TMP116 used on power reset. In Figure 14, the TMP6 readout corresponds to Ch1 and the NTC readout corresponds to Ch2. Figure 14. Secondary EVM Display Mode SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 12 2. Unzip the downloaded file into a known directory and run the TMP6_EVM_GUI-1.0.0.setup- win_6.1.1.exe file. The EVM software installer then begins the installation process, as shown in Figure Figure 15. TMP6 EVM GUI Installation Wizard TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 13 Figure 16. TMP6 EVM GUI License Agreement 4. Click on the Next button to accept the default installation directory. Figure 17. TMP6 EVM GUI Installation Folder Selection SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 14 Figure 18. TMP6 EVM GUI Installation 6. When the installation is finished, click the Finish button. This will launch the GUI application. Figure 19. TMP6 EVM Installation Finish TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 15 Figure 20. Launching the EVM GUI 8. If the EVM hardware is not plugged in, the status bar will indicate the hardware not connected. SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 16 The home page is shown in Figure 21. The home page includes the EVM 3D model, features, and the EVM block diagram. Figure 21. Home Page TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 17 The collateral page is shown in Figure 22. The page includes links to the device data sheet, EVM user's guide, and other relevant technical documents. Figure 22. Collateral Page SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 18 The chart can be cleared by clicking on the Clear Chart button. 4.4.3 Save Data Data acquired can be exported to a CSV file. TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 19 EVM Documentation This section contains the schematic diagram, layout, and complete bill of materials (BOM) for the EVM. EVM Schematic Figure 24 shows the schematic for the TMP6EVM board. Figure 24. EVM Schematic SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright ©...
  • Page 20 EVM Documentation www.ti.com EVM PCB Layout Figure 25 through Figure 30 show the layout for the TMP6EVM board. Figure 25. Top Layers TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 21 EVM Documentation www.ti.com Figure 26. Top Signal Layer SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 22 EVM Documentation www.ti.com Figure 27. Ground Layer TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 23 EVM Documentation www.ti.com Figure 28. Power Layer SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 24 EVM Documentation www.ti.com Figure 29. Bottom Signal Layer TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 25 EVM Documentation www.ti.com Figure 30. Bottom Layers space space space space space space space SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 26 Connector, FPC 10 Pos. Connector PFC, FH12-10S-0.5SH(55) Hirose Electric Co. Ltd. 9.1x2.0x5.6 mm 9.1x2.0x5.6mm Header, 2.54mm, 3x1, Header, 2.54mm, 3x1, M20-8770342 Harwin Gold, SMT TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 27 Natural PC Test Point S2761-46R Harwin Brass, SMT Brass, SMT Micropower 150-mA Low- DBV0005A LP2985AIM5X-3.0/NOPB Texas Instruments Noise Ultra-Low-Dropout Regulator in SOT-23 and DSBGA Packages, DBV0005A (SOT-23-5) SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 28 0402 GRM155R71C104JA88D MuRata C15, C16 V, +/- 5%, X7R, 0402 0.01uF CAP, CERM, 0.01 uF, 16 0402 GRM155R71C103KA01D MuRata V, +/- 10%, X7R, 0402 TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 29 R4, R12, R13, R14, R15, RES, 0, 5%, 0.063 W, 0402 CRCW04020000Z0ED Vishay-Dale R16, R21, R22, R24, 0402 RES, 110, 5%, 0.063 W, 0402 CRCW0402110RJNED Vishay-Dale 0402 SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 30 Texas Instruments Microcontroller with 128 KB Flash, 8192 B SRAM and 47 GPIOs, -40 to 85 degC, 64-pin QFN (RGC), Green (RoHS & no Sb/Br) TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 31 RES, 0, 5%, 0.063 W, 0402 CRCW04020000Z0ED Vishay-Dale 0402 RT1, RT5 Thermistor, LPG0002A LPG0002A PTC1131LPG Texas Instruments (TO-92-2) RT4, RT8 Thermistor, 0201 0201 PTC11310201 Texas Instruments SBOU202 – October 2018 TMP6EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 32 TMP6EVM User's Guide SBOU202 – October 2018 Submit Documentation Feedback...
  • Page 33 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated SBOU202 –...
  • Page 34 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 35 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 36 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿6丁目24番1号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
  • Page 37 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
  • Page 38 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
  • Page 39 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TMP6EVM...
