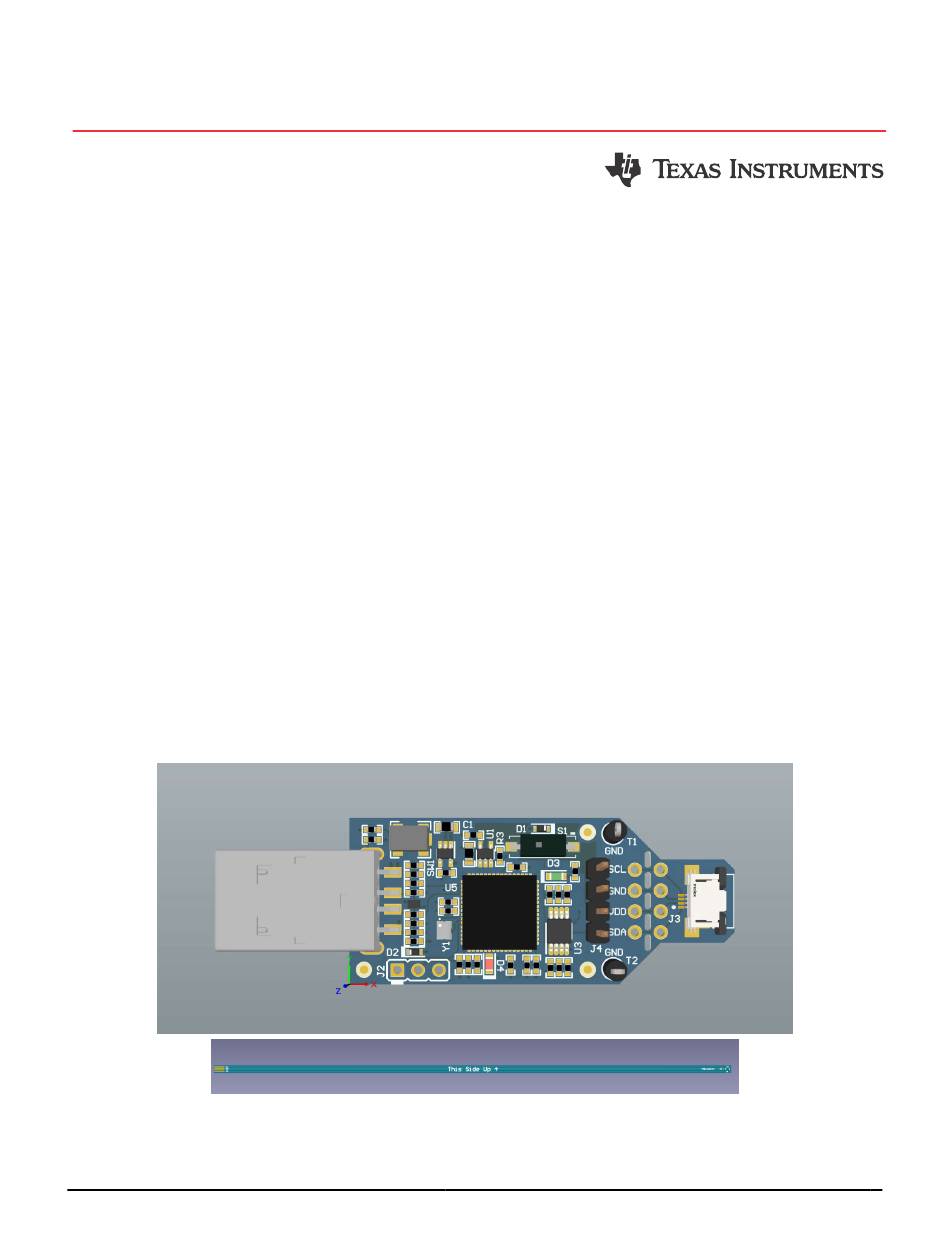

www.ti.com
EVM User's Guide: TMP118EVM
TMP118 Evaluation Module
Description
The TMP118EVM is designed to provide a quick
setup to evaluate the TMP118 device and gain
familiarity with the device down to the bit-by-
bit register level. The EVM allows users to
evaluate the performance of the TMP118 digital

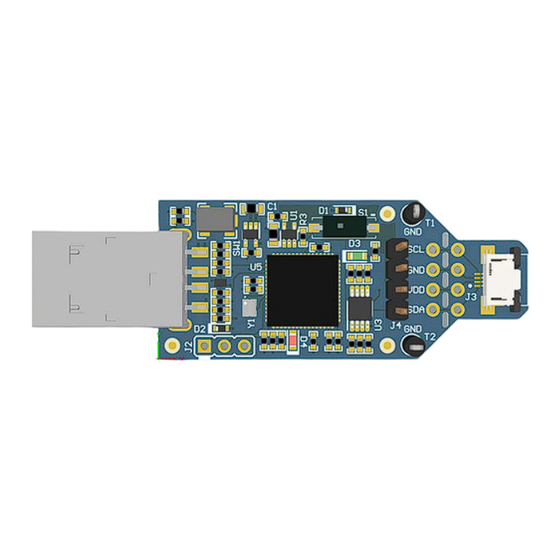

temperature sensor. The TMP118EVM is split into
two parts, an FR4-based motherboard containing
the Microcontroller, USB and breakable section with
Flexible Printed Circuit (FPC) connector for the sensor
board. The second portion features an FPC board
containing the TMP118 sensor to showcase the
sensor's competitive thermal response time.
Get Started
1. Order the TMP118EVM on
2. Attach TMP118 Sensor Board to MCU Board via
FPC Connector
3. Detach breakable FPC connector section and
solder connections (optional)
4. Connect the EVM to computer or user system
5. Go to the TMP118EVM gallery page on dev.ti.com
to either download the GUI or run online
6. Refer to the TMP118 data sheet for IC details
7. Visit our
E2E forums
SNOU203 – MAY 2024
Submit Document Feedback
ti.com
for support or questions
TMP118EVM
Copyright © 2024 Texas Instruments Incorporated
Features
Straightforward application to check temperature
functionality of TMP118
Easy to use cloud-based
web or can downloaded for offline use
FPC Based Design with breakable section for FPC
connector and TMP118 sensor board.
Access to data logging, adjusting the I2C
frequency, and modifying data in registers
Software powered by GUI Composer runs in
a browser on Windows
operating systems
Applications
Wearable fitness and activity monitors
Watches
– Sport bands
TWS ear buds
Smart glasses
Medical equipment
Gas meters and heat meters
Probe assemblies
Temperature transmitters
Description
GUI
is available on the
®
, Mac
®
, and Linux
®
TMP118 Evaluation Module
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMP118 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TMP118

  • Page 1 5. Go to the TMP118EVM gallery page on dev.ti.com • Temperature transmitters to either download the GUI or run online 6. Refer to the TMP118 data sheet for IC details 7. Visit our E2E forums for support or questions TMP118EVM SNOU203 –...
  • Page 2: Kit Contents

    The EVM comes in a USB stick form factor, with an onboard MSP430F5528 microcontroller that interfaces with both the host computer and the TMP118 device. The TMP118 device is attached to a FPC board, which connects to the host board via FPC Connector. The perforations between the FPC Connector and host controller allows the user flexibility during evaluation: •...
  • Page 3 2.1 Overview The EVM is divided into three sections: the controller section, the breakable FPC Connector section and the FPC Board containing the TMP118 sensor. The breakable sensor portion can be detached to use the sensor in the following scenarios: •...
  • Page 4 Figure 2-3. Inserting FPC Board and Locking Connector 2.2 Perforations and Connectivity The perforation between the USB controller and TMP118 FPC connector section is labeled on both sides for pin connections. Once the sensor section is detached from the controller section, the user can interface with the sensor section in two different ways: •...
  • Page 5: Bsl Button

    The TMP118EVM features push-button SW1 for entering USB BSL mode. This can be used for firmware updates. To enter USB BSL mode, connect the EVM to a PC USB port while holding down SW1. SNOU203 – MAY 2024 TMP118 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 Click the application icon within the gallery to launch the software. Agree to the prompts to install or update the TI Cloud Agent browser plug-in. The plug-in is necessary for connection to the USB hardware. Figure 3-1. Plug-in Setup TMP118 Evaluation Module SNOU203 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 The Home tab is shown at software launch. The icons on the bottom of this tab are shortcuts to the other functional tabs of the GUI, and correspond to the icons on the left side of the GUI. Figure 3-4. Home SNOU203 – MAY 2024 TMP118 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 3.3 Data Capture Tab The Data Capture tab reports the temperature from the TMP118 device included on the TMP118EVM. Temperature data is polled and displayed by default. By default, the MCU polls the registers with a 100ms delay. The CONVERT TEMP command (0x44) is sent automatically while polling. The polling rate setting on the Data Capture tab is synchronized with the polling rate setting on the Registers tab.
  • Page 9: Registers Tab

    3.4 Registers Tab The Registers tab interacts with the registers and the bits within the TMP118 device. For more information on each register/bit, hover over the register name and click on the question mark to see what each bit defines.
  • Page 10 VBUS = 5V INPUT VUSB = 3.3V OUT VUSB 12mA Max VCORE VUSB SBWTCK SBWTDIO 0.47uF 0.47uF 0.47uF Header_3x1 6.3V 6.3V 6.3V TMP118AIYMSR Figure 4-1. Schematic TMP118 Evaluation Module SNOU203 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11: Pcb Layout

    Hardware Design Files 4.2 PCB Layout Figure 4-2. PCB Top Figure 4-3. PCB Bottom SNOU203 – MAY 2024 TMP118 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 RES, 10 k, 5%, 0.1 W, AEC-Q200 Grade 0, 0402 ERJ-2GEJ103X Panasonic 0402 RES, 33 k, 5%, 0.063 W, AEC-Q200 Grade 0, 0402 CRCW040233K0JNED Vishay-Dale 0402 TMP118 Evaluation Module SNOU203 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Murata Electronics North 0201 85C T/R America Ultra-small, high-accuracy, low-power, digital PicoStar4 TMP118AIYMSR Texas Instruments temperature sensor with SMBus - and I2C- compatible interface SNOU203 – MAY 2024 TMP118 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14: Additional Information

    Mozilla Foundation. Safari ® is a registered trademark of Apple Inc. All trademarks are the property of their respective owners. TMP118 Evaluation Module SNOU203 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 16 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 17 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 18 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 20 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
