Break Away Fitting for Submersible Pumps
IMPORTANT!
Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notifi cation.
A Crane Co. Company
420 Third Street
Piqua, Ohio 45356
Phone: (937) 778-8947
Fax: (937) 773-7157
www.cranepumps.com
Manual Index
BARNES
BARNES

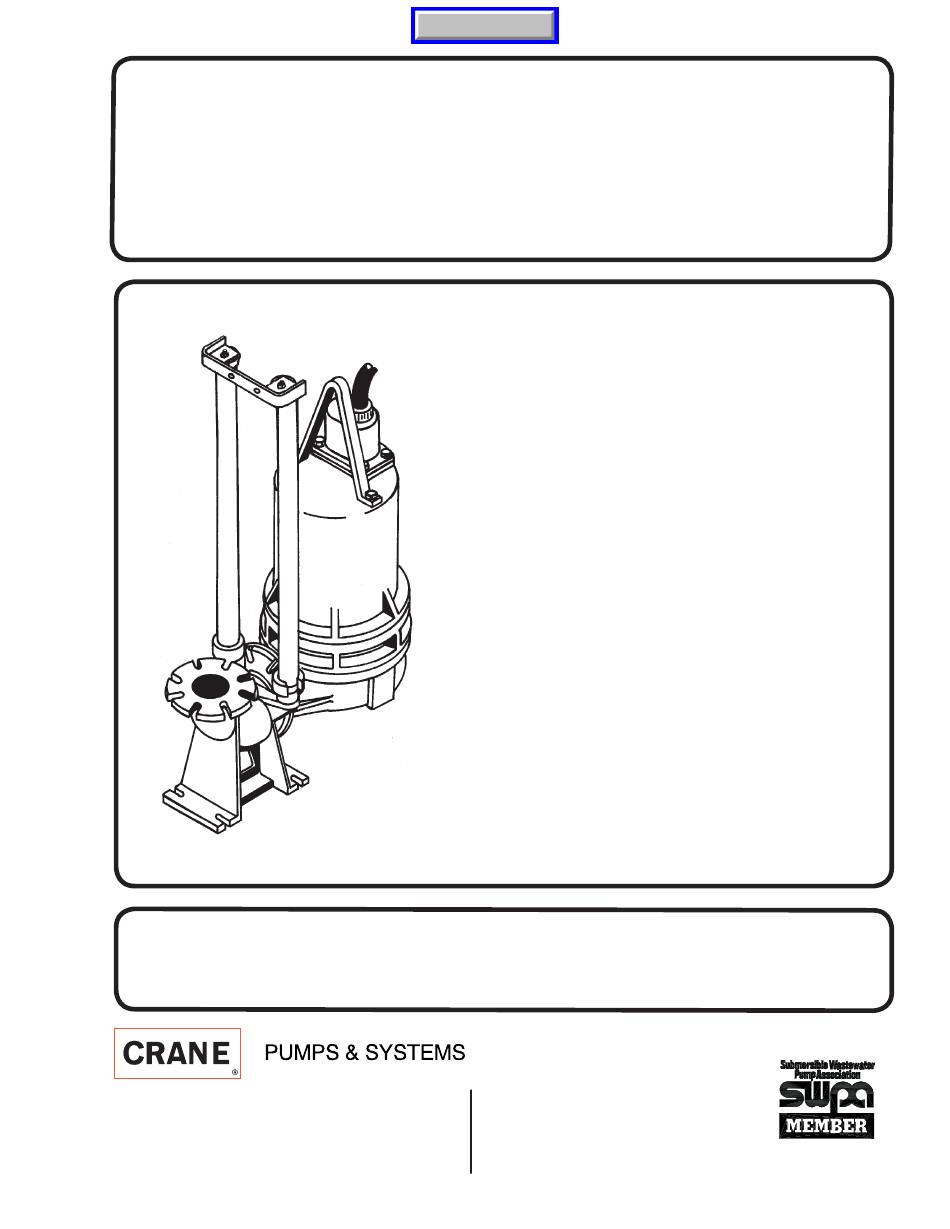

INSTALLATION MANUAL
Models: BAF-4 (Standard)
83 West Drive, Bramton
Ontario, Canada L6T 2J6
Phone: (905) 457-6223
Fax: (905) 457-2650
®
P/N: 087315
BAF-E4 (Non-Sparking)
P/N: 087316
Form No. 087317-Rev. E
Advertisement
Table of Contents
Related Manuals for Crane Barnes BAF-4
Summary of Contents for Crane Barnes BAF-4
- Page 1 Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur. As such Crane Pumps & Systems reserves the right to change product without prior written notifi cation.
-
Page 2: Safety First
Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems, Inc. 1994, 1997, 1998, 2002, 3/06, 9/06 Alteration Rights Reserved... -
Page 3: Specifications
SPECIFICATIONS: MODEL: BAF-4 (087315) LOCATION: This BAF-4 is designed for wet wells, tanks, or lift stations where it is necessary to remove a pump from service and reinstall the pump without maintenance personnel entering the pit to unbolt the pump fl anges. STATIONARY ELBOW: Cast iron, ASTM A48, Class 30. - Page 4 inches (mm) Figure 2 Figure 1 (*) 22.12 (562) for 4SE10036EHA thru 4SE25046EHA, 4SE25034EHA thru 4SE100044EHA, 4XSE10036EHA thru 4XSE25046EHA and 4XSE25034EHA thru 4XSE100044EHA.
- Page 5 Design the anchor bolts for 1.6 kip uplift per For the location of the nearest Barnes Service Center, check bolt. your Barnes representative or Crane Pumps & Systems, Inc., Service Department in Piqua, Ohio, telephone (937) 778-8947 The 1-1/2” schedule 40 guide rail pipes must be plumbed or Crane Pumps &...
- Page 6 Figure 5 Duplex Installation (Optional) Figure 4 Duplex Installation (Standard) Figure 3 Simplex Installation...
- Page 7 Position one gasket (4) between the moveable assembly Force cold shut closed and weld together. When pump (1) comprised of Moveable (1A) and O-Ring (1B), and the is lifted, pump discharge should tilt below horizontal pump body discharge fl ange. Attach the discharge fl ange centerline from 5 to 10.
- Page 8 SECTION E: REPLACEMENT PARTS E-1) Ordering Replacement Parts: When ordering replacement parts, always furnish the following information: Product Model Part Description Part Number Quantity Required Shipping Instructions Billing Instructions Product improvements are made from time to time. The latest part design will be furnished if it is interchangeable with the old part.
- Page 9 Figure 6...
- Page 10 Figure 7...
- Page 11 PARTS LIST BAF-4 P/N: 087315 ITEM QTY. PART NO. DESCRIPTION 087313 Moveable Fitting Assembly 087388 Moveable (Cast Iron, Class 30) 089283 O-Ring, 4.5 I.D. (Buna-N) 087312 Stationary Base Elbow Assembly 087391 Stationary Base Elbow (Cast Iron, Class 30) 087392 Guide Plug (Cast Iron, Class 30) 11-81-1 Sk.
- Page 12 OPTIONAL EQUIPMENT PARTS LIST INTERMEDIATE SUPPORT: For 4” Disch. Pipe ITEM PART No. DESCRIPTION 088449 Intermediate Support Assembly 087309 Guide Rail Bracket (Stainless) 087392 Guide Plug (Cast Iron) 11-85-1 Sk. Hd .Screw (.50-13 x 2.25 Lg. Stainless) 20-15-1 Split Lock Washer (.50 Stainless) 15-6-1 Hex Nut...
-
Page 13: Returned Goods
RETURNED GOODS RETURN OF MERCHANDISE REQUIRES A “RETURNED GOODS AUTHORIZATION”. CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR. Products Returned Must Be Cleaned, Sanitized, Or Decontaminated As Necessary Prior To Shipment, To Insure That Employees Will Not Be Exposed To Health Hazards In Handling Said Material. - Page 14 Notes...
-
Page 15: Warranty Registration
Your product is covered by the enclosed Warranty. Complete the Warranty Registration Form and return to Crane Pumps & Systems, Inc. Warranty Service Group If you have a claim under the provision of the warranty, contact your local Crane Pumps & Systems, Inc. Distributor. - Page 16 FOLD HERE AND TAPE, DO NOT STAPLE PLACE STAMP HERE CRANE PUMPS & SYSTEMS, INC. WARRANTY SERVICE GROUP 420 THIRD STREET PIQUA, OHIO 45356 - U.S.A.
