IMPORTANT!
Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notifi cation.
A Crane Co. Company
420 Third Street
Piqua, Ohio 45356
Phone: (937) 778-8947
Fax: (937) 773-7157
www.cranepumps.com
Manual Index
BARNES
BARNES
INSTALLATION MANUAL

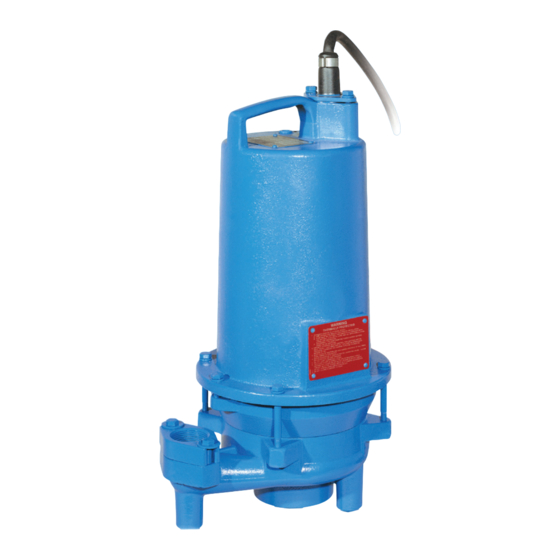

Submersible Grinder Pump
Series: OGVF & OGVH
2 HP, 3450 RPM, 60 Hz.
High-Flow and High-Head
Also - OGVF2022M w/ABS Adapter
83 West Drive, Bramton
Ontario, Canada L6T 2J6
Phone: (905) 457-6223
Fax: (905) 457-2650
®
Form No. 108890-Rev. N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crane Barnes Omni Grind OGVF Series
Summary of Contents for Crane Barnes Omni Grind OGVF Series
- Page 1 Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur. As such Crane Pumps & Systems reserves the right to change product without prior written notifi cation.
-
Page 2: Safety First
Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems, Inc. 2002, 2003, 4/04, 5/04, 6/05, 10/05, 12/05, 1/06, 9/06, 11/06 , 2/07... - Page 3 USER GUIDE USER GUIDE Congratulations on your purchase of a Barnes The grinder pump generates suffi cient pressure grinder pump system. With proper care and by to pump this slurry from your home to the following a few simple guidelines your grinder wastewater plant.
-
Page 4: Pump Specifications
PUMP SPECIFICATIONS: DISCHARGE ....... 1¼” NPT, Vertical, Bolt-on Flange SPEED ........ 3450 RPM, 60Hz (nominal) LIQUID TEMPERATURE ..104°F (40°C) Continuous UPPER BEARING: MOTOR HOUSING ..... Cast Iron ASTM A-48, Class 30 Design ..... Single Row, Ball, Oil Lubricated VOLUTE ......Cast Iron ASTM A-48, Class 30 Load .... - Page 5 inches AUF Series (mm) AUE Series...
- Page 6 PUMP SPECIFICATIONS: DISCHARGE ....... 1¼” Horizontal Flange CORD ENTRY ..... 30 Ft. (9.1m) Cord (STD) , SUCTION ......3” ANSI Flange Custom Molded Quick Connected for LIQUID TEMPERATURE ..104°F (40°C) Continuous sealing and strain relief. MOTOR HOUSING ..... Cast Iron ASTM A-48, Class 30 CORD ........
- Page 7 MODEL VOLT PH/Hz NEMA FULL LOCKED CORD CODE CORD WINDING RESISTANCE (Nom) START LOAD ROTOR SIZE TYPE O.D. MAIN -- START CODE AMPS AMPS ± .02 (.5) in (mm) OGVH2022L 1 / 60 3450 15.0 53.8 12/3 .61 (15.5) 1.5 -- 5.1 OGVH2022AUE 1 / 60 3450...
-
Page 8: Service Centers
104ºF (40ºC). SERVICE CENTERS: For the location of the nearest Barnes Service Center, check your Barnes representative or Crane Pumps FIGURE 2 - AUF Series & Systems, Inc., Service Department in Piqua, Ohio, telephone (937) 778-8947 or in Brampton, Ontario, Canada (905) 457-6223. - Page 9 “M” Series units provide for interchangeability into existing horizontal fl anged installations. Discharge - Assemble discharge piping or hose assembly (whichever is required by your application), to the pump. Discharge piping should be as short as possible. Both a check valve and a shut-off valve are required for each pump being used.
- Page 10 OGV “AUF” AUTOMATIC PUMPS: NOTE: For automatic pumps using ESPS level control, refer to ESPS manual. Automatic units are supplied with separate ON/OFF fl oat 1. Securely mounted to a fi xed object such as pipe, and ALARM fl oat. The alarm fl oat is attached to the top brackets, etc.
-
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS: Pump Cords - The quick connect cord assembly mounted to the pump must NOT be modifi ed in any way except for shortening to a specifi c application. Any supply cables con- nections between the pump and the control panel must be made in accordance with the National Electric Code or the Canadian Electric Code and all applicable state, province and local electric codes. -
Page 12: Troubleshooting
TROUBLE SHOOTING CAUTION ! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH “CAUSE”... - Page 13 MANUAL MODELS AUTOMATIC MODELS “AUE” AUTOMATIC MODELS “AUF” “M” Series FIGURE 7...
-
Page 14: Parts Kits
PARTS KITS Seal Repair Kit ...P/N: 108303 Item #’s 6,7,13,14,15,19,20,21,25,26,27,32,35,47 Cutter Kit ....P/N: 108330 Item #’s 5,6,7,9,15,19,23 ABS Volute, HF ...P/N: 116426 Item #’s 1A, 5 (For Existing Pumps) ABS Volute, HH ..P/N: 116424 Item #’s 1A, 5 (For Existing Pumps) PARTS LIST ITEM PART NO. - Page 15 MOVEABLE ASSEMBLY P/N: 116594* & 116595* PARTS LIST For 2HP OGV-L & AUE Grinder, “C” Channel Basin Package ITEM QTY. PART No. DESCRIPTION 112354 Check Valve/Upper Moveable 116603 Upper Pump Bracket Assy - 116594 OGV 116604 Upper Pump Bracket Assy - 116595 OGV-AU 075589 Pipe Nipple 107360...
- Page 16 MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No rights extended under this warranty shall be assigned to any other person, whether by operation of law or otherwise, without our prior written approval. A Crane Co. Company 420 Third Street 83 West Drive, Bramton...
- Page 17 Notes...
- Page 18 Notes...
- Page 19 This form is designed to provide assurance that customer service and a quality product are the number one priority with Crane Pumps & Systems, Inc (CP&S). Please fi ll out the following questions as completely and accurate as possible. When complete, mail this form to: In U.S.A Send To:...
- Page 20 FOLD HERE AND TAPE, DO NOT STAPLE PLACE STAMP HERE CRANE PUMPS & SYSTEMS, INC. WARRANTY SERVICE GROUP 420 THIRD STREET PIQUA, OHIO 45356 - U.S.A.
