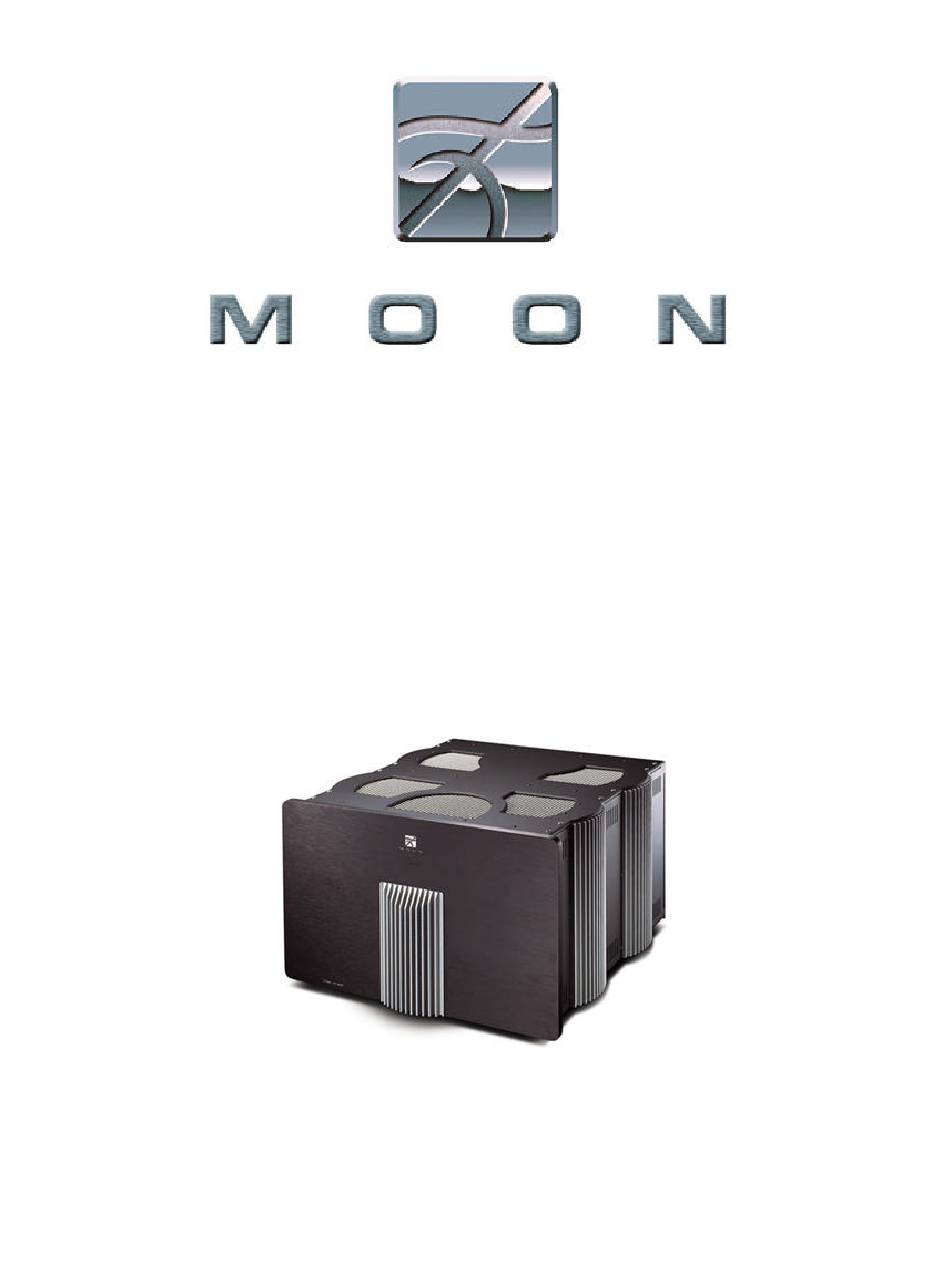

- Page 1 TITAN HT-200 Multi-Channel Power Amplifier ___________________________________________________________________________ Owner’s Manual...
- Page 2 MOON Titan HT-200 Multi-Channel Power Amplifier Table of Contents Congratulations ..........3 Introduction..........4 Unpacking and Warnings ......5 Installation Tips ........6 Rear Panel ..........8 Connecting the Titan ........9 Operating the Titan........10 Custom Installations ......... 11 Specifications .......... 12 Service and Warranty ........ 13 www.simaudio.com...
- Page 3 MOON Titan HT-200 Multi-Channel Power Amplifier Congratulations! Thank you for selecting the MOON Titan HT-200 Multi-Channel power amplifier as a part of your hi-fi reproduction system. This Power Amplifier has been designed to offer state-of-the-art high-end performance in an elegant package, while retaining all the sonic hallmarks o n which Simaudio has made its reputation.
- Page 4 MOON Titan HT-200 Multi-Channel Power Amplifier Introduction Your MOON Titan HT-200 Multi-Channel amplifier incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the more important features: A custom proprietary toroidal transformer design with lower magnetic, electrical and thermal loss, yielding an improved power transfer and lower regulation factor, resulting in increased current speed and better dynamics.
- Page 5 MOON Titan HT-200 Multi-Channel Power Amplifier Unpacking and Warning! Regardless of channel configuration, the MOON Titan HT-200 Multi-Channel power amplifier is a large and heavy amplifier that should be removed from its box with care. We strongly advise that you seek another person to help lift the amplifier out of its box, and place it in its final location.
- Page 6 Installation Tips Picking the proper location The MOON Titan HT-200 Multi-Channel power amplifier is both heavy and powerful. It requires substantial ventilation to avoid overheating. Consequently, it should be placed in a location with plenty of empty space around it. Also, it should sit on a solid hard surface to prevent any accidents such as falling over.
- Page 7 If you have the willingness and budget necessary to arrange for a dedicated 20A circuit for this amplifier, you will be able to take full advantage of the power potential of the MOON Titan HT-200 Multi-Channel power amplifier. If the AC voltage in your home is 220V or 240V, you will not have to worry about any current limitations, as previously described.
- Page 8 Independent of the number of channels your amplifier has, the rear panel will look similar to Figure 1 (above). Depending on the number of channels built into your MOON Titan HT-200 Multi-Channel power amplifier, a corresponding number of input connectors and output connectors are located on the back panel.
- Page 9 “SPEAKER 1”, the signal on the input labeled “2” will be amplified and available to the output labeled “SPEAKER 2” and so on. All channels in the MOON Titan HT-200 Multi-Channel power amplifier are identical. For optimal performance, please refer to page 7 for details on how to accomplish this.
- Page 10 2) Always power down your Titan prior to your powering down your preamp/processor Troubleshooting Your MOON Titan HT-200 Multi-Channel amplifier is equipped with a unique self-diagnostic system that will automatically shut itself down when it detects DC (direct current) from any input. If your Titan amplifier turns itself off or will not power up, there may very well be DC present in one (or more) of the amplifier’s inputs...
- Page 11 Working with the 12 Volt Trigger The 12 Volt Trigger input is on a 3.5 mm microphone jack (mono) on the back panel of the MOON Titan. With simple direct logic applied, 0V turns the unit off, and 12V turns the unit on. Input impedance is 300 ohms and the current required will be approximately 40 mA.
- Page 12 MOON Titan HT-200 Multi-Channel Power Amplifier Specifications Configuration ........3, 5 or 7 channels Power Supply Transformers ....2 x 1.1kVA Power Supply Capacitance ..... 216,000µF Class Of Operation ......A/AB Input Impedance ........ 24,900 Ω Input Sensitivity ........1050mV Output Device Type ......
- Page 13 Service and Warranty (U.S.A and Canada only) Please take the time to complete and mail the warranty card supplied with your MOON Titan HT-200 Multi-Channel power amplifier. This card is necessary to activate your full warranty, as well as allowing you to receive information on new products and services.
