emmeti Unisenza Installation And User Manual

emmeti Unisenza Installation And User Manual

Wifi programmable thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

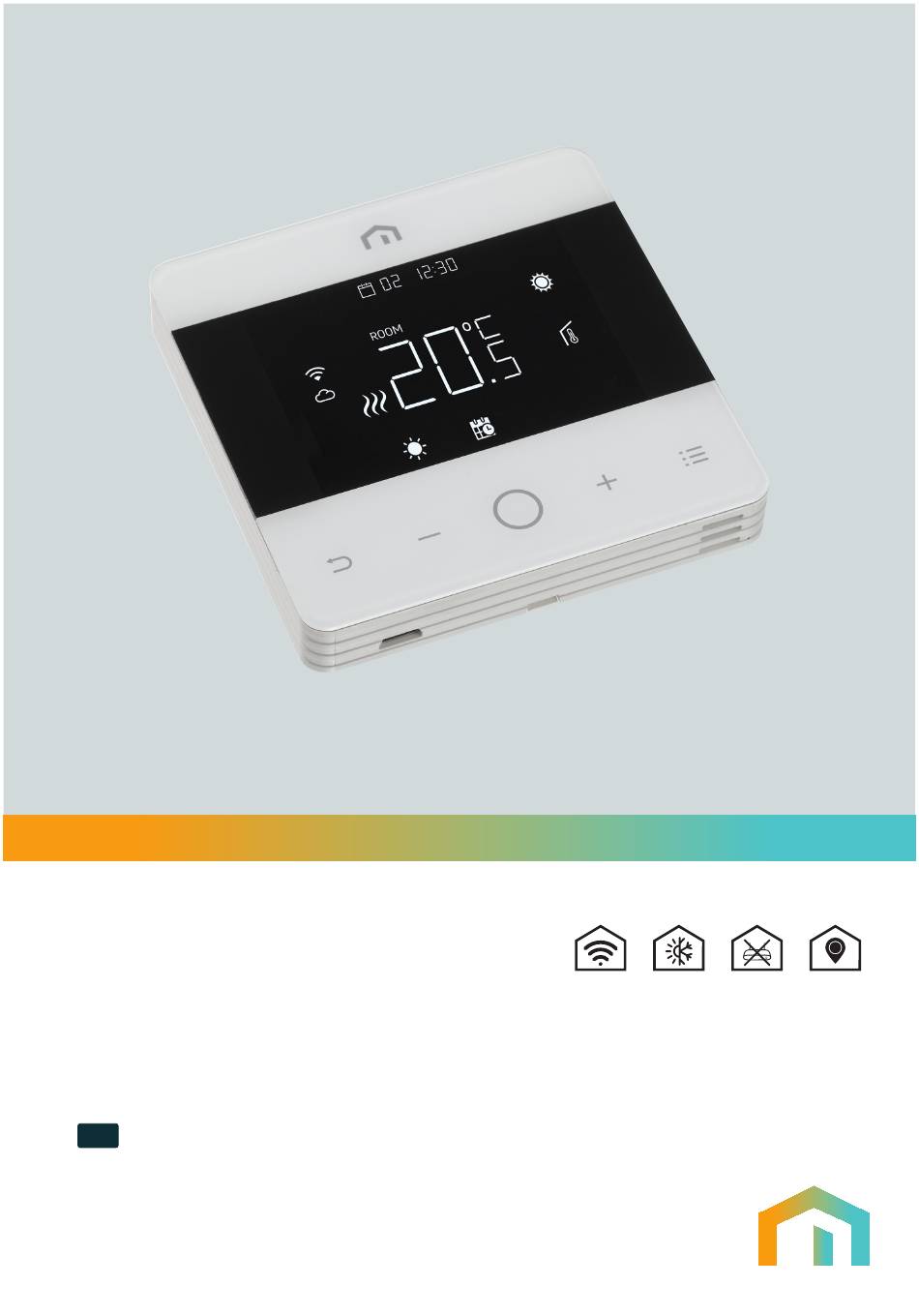

Installation
and user manual
Wi-Fi abilitato
Riscal./raffred.
Nessun hub richiesto
Geolocalizzazione
WiFi Enabled
Heating and
No Hub
Geo Location
WiFi enabled
Heat /Cool
No hub required
Geo location
Cooling
Required
Unisenza - WiFi Programmable Thermostat
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unisenza and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for emmeti Unisenza

Summary of Contents for emmeti Unisenza

  • Page 1 Installation and user manual Wi-Fi abilitato Riscal./raffred. Nessun hub richiesto Geolocalizzazione WiFi Enabled Heating and No Hub Geo Location WiFi enabled Heat /Cool No hub required Geo location Cooling Required Unisenza - WiFi Programmable Thermostat...

  • Page 3: Table Of Contents

    Unisenza - WiFi Programmable Thermostat Installation and user manual Index SAFETY WARNING ........................................4 TECHNICAL SPECIFICATIONS ....................................4 REFERENCE STANDARDS .....................................4 INSTALLATION AND ELECTRICAL CONNECTION ............................5 Wall fixing .............................................5 Wiring diagram ...........................................5 4.2.1 Thermostat terminals description ..................................5 4.2.2 Connection to the Wiring Centre..................................6 USER GUIDE ..........................................6...

  • Page 4: Safety Warning

    Unisenza - WiFi Programmable Thermostat Installation and user manual SAFETY WARNING 3 REFERENCE STANDARDS During installation and operation of the device, it is neces- Conformity with EU directives: sary to comply with the following instructions: 2014/35/EU (LVD) 1) The device must be installed by a skilled person, in strict 2014/30/EU (EMCD) compliance with the connection diagrams.

  • Page 5: Installation And Electrical Connection

    Unisenza - WiFi Programmable Thermostat Installation and user manual 4 INSTALLATION AND ELECTRICAL CONNECTION Wall fixing CLIK CLIK CLIK CLIK 4.2 Wiring diagram 4.2.1 Thermostat terminals description Terminals 230 Vac version 24 Vac version 1. NTC External sensor (NTC 10 KOhm)

  • Page 6: Connection To The Wiring Centre

    Unisenza - WiFi Programmable Thermostat Installation and user manual 4.2.2 Connection to the Wiring Centre WiFi Thermostat Wiring Center External temperature probe Zone 1 to 10 (5) Zone 1 to 10 Note: - CO connection is optional. It’s needed to use change over function. (Futher explanation in Wiring center manual).

  • Page 7: Standby

    Unisenza - WiFi Programmable Thermostat Installation and user manual 5.1.1 Standby Long press (> 5sec) Long press (> 5sec) Enter button to leave standby mode Enter button to enter standby mode Attention: Note in standby only the antifreeze function is alive.

  • Page 8: Working Modes Selection

    Unisenza - WiFi Programmable Thermostat Installation and user manual 5.1.4 Working modes selection COMFORT Mode 10” ECO Mode 10” PROGRAM Mode Setting temporary override temperature 10” MANUAL Mode 10” BOOST Mode...
  • Page 9 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.1.4.1 COMFORT Mode In this mode the device will work with fixed temperature (Comfort temperature). Using plus or minus button it’s possible modify the Comfort temperature value. 5.1.4.2 ECO Mode In this mode the device will work with fixed temperature (Eco temperature).

  • Page 10: User Menu

    Unisenza - WiFi Programmable Thermostat Installation and user manual User Menu Short press Menu button to wake up the display, then long press (>5sec) menu button to enter in the User menu. 5.2.1 User Menu Map To scroll in the user menus press + or - buttons.

  • Page 11: User Menu Item Explanations

    Unisenza - WiFi Programmable Thermostat Installation and user manual 5.2.2 User Menu Item explanations To enter in a menu press the ENTER button. In each menu press the ENTER button to confirm and save the selected option or BACK button to came back without save.
  • Page 12 Unisenza - WiFi Programmable Thermostat Installation and user manual 52 Programming mode (5 day + day) Event Default time Default temperature Working days Monday to Friday GetUp 06:00 Comfort Away 09:00 Reduced GoHome 18:00 Comfort Sleep 22:00 Reduced Weekend Saturday...
  • Page 13 Unisenza - WiFi Programmable Thermostat Installation and user manual 24 Programming mode (24 hour) Event Default time Default temperature Every day GetUp 06:00 Comfort Away 09:00 Reduced GoHome 18:00 Comfort Sleep 22:00 Reduced 5.2.2.2 02 SET Setting time and date This thermostat automatically sets the date and time once connected to the internet.
  • Page 14 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.2.2.3 03 HOL Setting Holiday Mode Set a specific temperature for the heating or cooling while you are away for a prolonged time. In this menu is possible able or disable this function, only if the function is abled it is possible set the duration (days) and the temperature setpoint for this function.
  • Page 15 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.2.2.4 04 WIF WiFi Connection To connect the WiFi Thermostat to the local WiFi network and to the App, follow the instruction of the app step by step. When the application prompts you to activate the pairing mode, Select the EZ (Easy) mode and press the ENTER buton to confirm, the blinking WiFi icon appeare.
  • Page 16 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.2.2.6 06 DEG Type of degree (C/F) Change temperature visualization unit (Centigrade/ Fahrenheit) Press + or - button to set °C or °F and press ENTER button to confirm 5.2.2.7 07 OWF Open window function If the open window function id enabled (ON), in case of temperature drop during heating the device turn off the heater for 1 hour.
  • Page 17 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.2.2.8 08 COL Cool function If this function is enabled (ON), the thermostat works in both heating and cooling and it is possible to change the operating mode both from the keyboard and from the CO terminal.
  • Page 18 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.2.2.10 RES User menu factory reset In this menu it is possible reset all menus in the user menu to default values. See the table below for the user menu default values.
  • Page 19 Unisenza - WiFi Programmable Thermostat Installation and user manual N° Menu Description menu Default Value Range Time Programming 5+2d 5+2d, 7d, 24h 5+2d 1.1.1 GetUp Working day (Hour/Minute) 06:00 Comfort 00:00 - 23:59, Confort/Reduce 1.1.2 Away Working day (Hour/Minute) 09:00:00 Reduced 00:00 - 23:59, Confort/Reduce 1.1.3...

  • Page 20: Advanced Menu

    Unisenza - WiFi Programmable Thermostat Installation and user manual Advanced Menu 5.3.1 Advanced Menu Map Short press Menu button to wake up the display, then long To scroll in the user menus press + or - buttons. press (>5sec) Menu button and Enter button to enter in the Advanced menu.
  • Page 21 Unisenza - WiFi Programmable Thermostat Installation and user manual 11 TOS Type of system 16 RES Advanced Menu factory reset 11 HSH 12 FP frost protection temperature 17 LOT Lock type 12 LSC 13 LOT Lock Type 18 SBR Screen Brightness...

  • Page 22: Advanced Menu Item Explanations

    Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2 Advanced Menu Item explanations To enter in a menu press the ENTER button. In each menu press the ENTER button to confirm and save the selected option or BACK button to came back without save.
  • Page 23 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.3 03 OUT Output logic In this menu is possible Change output logic between NO - normally open: live on SWL terminal when there is heating or cooling request NC - normally closed: no live on SWL terminal when there is heating or cooling request...
  • Page 24 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.4 04 SEN Sensor Mode Define the configuration of temperature sensor: Press + or - button to select the sensor mode and then press ENTER button to confirm Press + or - button to select the sensor mode...
  • Page 25 Unisenza - WiFi Programmable Thermostat Installation and user manual Configuration Description Internal sensor External sensor Icon sensor Ambient temperature Ambient Not present with internal temperature temperature sensor Ambient sensor icon Floor temperature with Not used Floor temperature external temperature sensor...
  • Page 26 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.5 05 AIC Calibration of internal sensor In particular installation conditions, it can happen that the temperature measured by the device deviates from the average temperature present in the room. In this case, introduce an adjustment temperature in this menu for the internal sensor when the sensor mode is 00 or 03.
  • Page 27 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.7 07 LTH Lower limit floor temperature Lower limit value for external sensor used like floor sensor in heating mode. If the floor temperature is lower than the LTH limit the floor sensor icon blinks.
  • Page 28 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.8 08 HTH Upper limit floor temperature Higher limit value for external sensor used like floor sensor in heating mode. If the floor temperature is higher than the HTH limit the floor sensor icon and alarm icon blink and heating request is blocked.
  • Page 29 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.9 09 LTC Lower limit floor temperature in cooling mode Lower limit value for external sensor used like floor sensor in cooling mode. If the floor temperature is lower than the LTH limit the floor sensor icon and alarm icon blink and the cooling request is blocked.
  • Page 30 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.10 10 LSH Low limit temperature set in heating Define the low limit for temperature set in heating mode Range 5 to 18 Default 5 When applied the user cannot set temperature under this value.
  • Page 31 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.12 12 LSC Low limit temperature set in cooling Define the low limit for temperature set in cooling mode Range 5 to 24 Default 5 When applied the user cannot set temperature under this value.
  • Page 32 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.14 14 REG Regulation type P regulation With P regulation, the device activates the heating (cooling) until the measured temperature is lower (higher) than the set one. In order to avoid the oscillation straddling the set temperature which would cause the system to switch on and off continu- ously, a differential (or hysteresis) is introduced.
  • Page 33 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.15 15 TOS Type of system For the correct parameters of the PI control select the right system where the thermostat is installed: 01: Low thermal inertia heater (fancoil) 02: Medium thermal inertia heater (radiators)
  • Page 34 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.17 17 LOT Lock Type There are two different lock for the thermostat, so in this menu is possible set: FUL (full): Block all changes after lock mode activation HOT (hotel): After lock mode activation it is possible use only + and - buttons...
  • Page 35 Unisenza - WiFi Programmable Thermostat Installation and user manual 5.3.2.19 19 OWF Open window function type There are three different type for the open window function, so in this menu is possible set: FAS (fast): Activate function when temperature drop 5 degree in 5 minutes, during heating.
  • Page 36 Unisenza - WiFi Programmable Thermostat Installation and user manual N° Menu Description menu Default Value Range Time Mode (12/24) 12/24 Auto (On/Off) On/Off Output Logic NO/NC Sensor mode 00,01,02,03 Calibration of internal sensor -5:+5 Calibration of external sensor (Visible if...

  • Page 37: Alarms And Warnings

    Unisenza - WiFi Programmable Thermostat Installation and user manual 5.4 Alarms and Warnings If there are some alarms or warning, they are displayed by icons. Icons Description Cause Effect Temperature sensor broken or Internal sensor broken The thermostat is blocked.
  • Page 38 A PURMO GROUP BRAND Bulevardi 46 P.O. Box 115 FI-00121 Helsinki Finland www.purmogroup.com Every care has been taken in the creation of this document. No part of this document may be reproduced without the express written consent of Purmo Group. Purmo Group accepts no responsibility for any inaccuracies or consequences arising from the use or misuse of the information contained herein.
