A
WARNING:
Do not allow familiarity with tools to
make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious
injury.
A
WARNING:
Always wear safety goggles or safety
glasses with side shields when operating tools.
Failure to do so could result in objects being thrown
into your eyes, resulting in possible serious injury.
A
WARNING:
Do not use any attachments
or
accessories not recommended
by the manufacturer
of this tool. The use of attachments or accessories
not recommended
can result in serious personal
injury.
APPLiCATiONS
You may use this tool for the purposes listed below:
[] Driving long deck screws while building a deck
[] Driving carriage bolts into deck posts
[] Driving Tapcon screws into block walls and concrete
[] Driving screws into metal studs
[] Driving nuts and bolts using an impact socket
This product will accept DieHardo 19.2 V lithium-ion bat-
tery packs and Craftsman 19.2 V nickel-cadmium
battery
packs.
For complete charging instructions, refer to the Operator's
Manual for the battery packs and chargers listed in the
General Safety Rules.
BATTERY
PROTECTION
FEATURES
DieHardo 19.2 V lithium-ion battery packs are designed
with features that protect the lithium-ion cells and
maximize battery life.
If the tool stops during use, release the trigger to reset
and resume operation. If the tool still does not work, the
battery needs to be recharged.
TO INSTALL
BATTERY
PACK
See Figure 2.

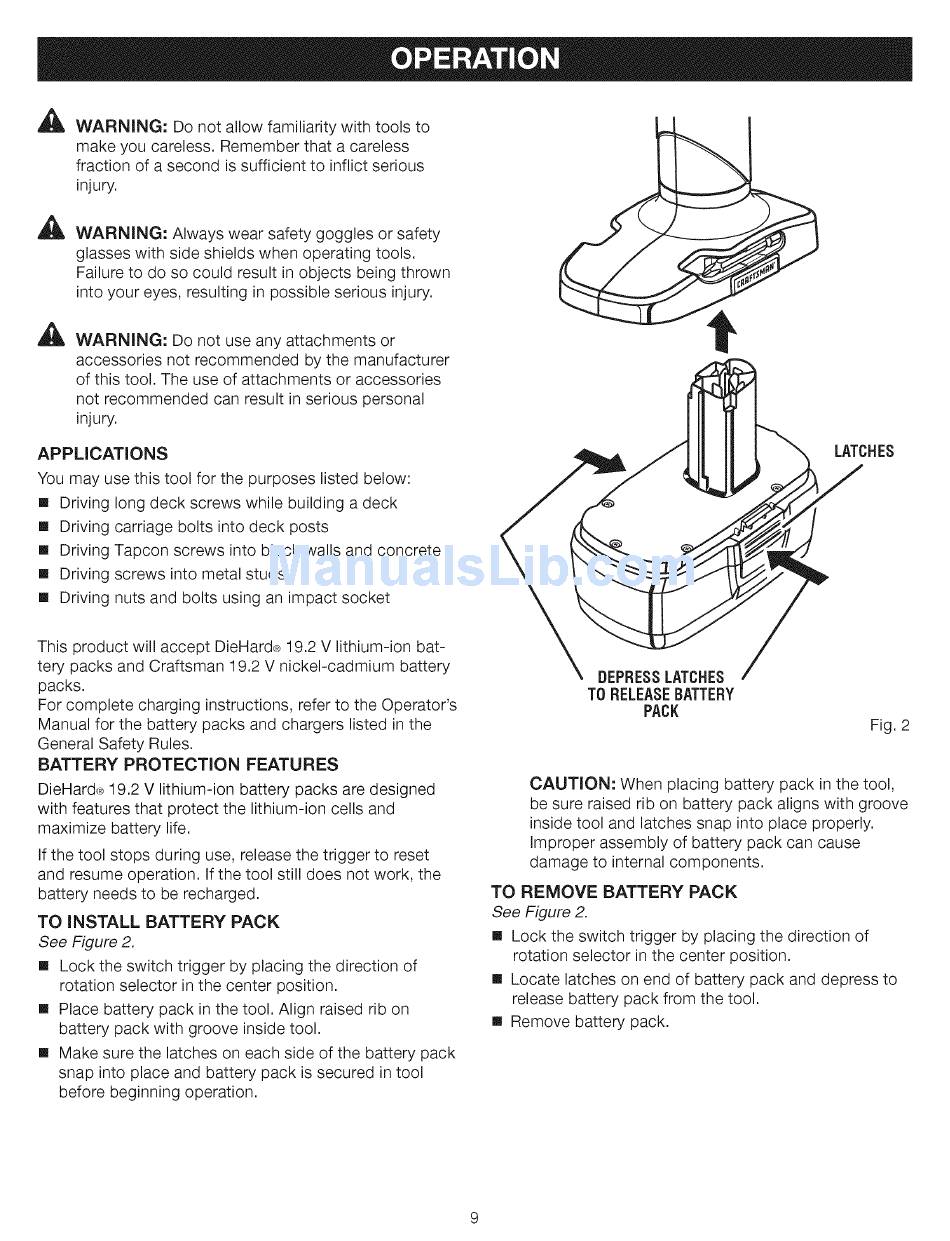

[] Lock the switch trigger by placing the direction of
rotation selector in the center position.
[] Place battery pack in the tool. Align raised rib on
battery pack with groove inside tool.
[] Make sure the latches on each side of the battery pack
snap into place and battery pack is secured in tool
before beginning operation.
LATCHES
DEPRESS LATCHES
TO RELEASE BATTERY
PACK
Fig. 2
CAUTION:
When placing battery pack in the tool,
be sure raised rib on battery pack aligns with groove
inside tool and latches snap into place properly.
Improper assembly of battery pack can cause
damage to internal components.
TO REMOVE
BATTERY
PACK
See Figure 2.
[] Lock the switch trigger by placing the direction of
rotation selector in the center position.
[] Locate latches on end of battery pack and depress to
release battery pack from the tool.
[] Remove battery pack.
