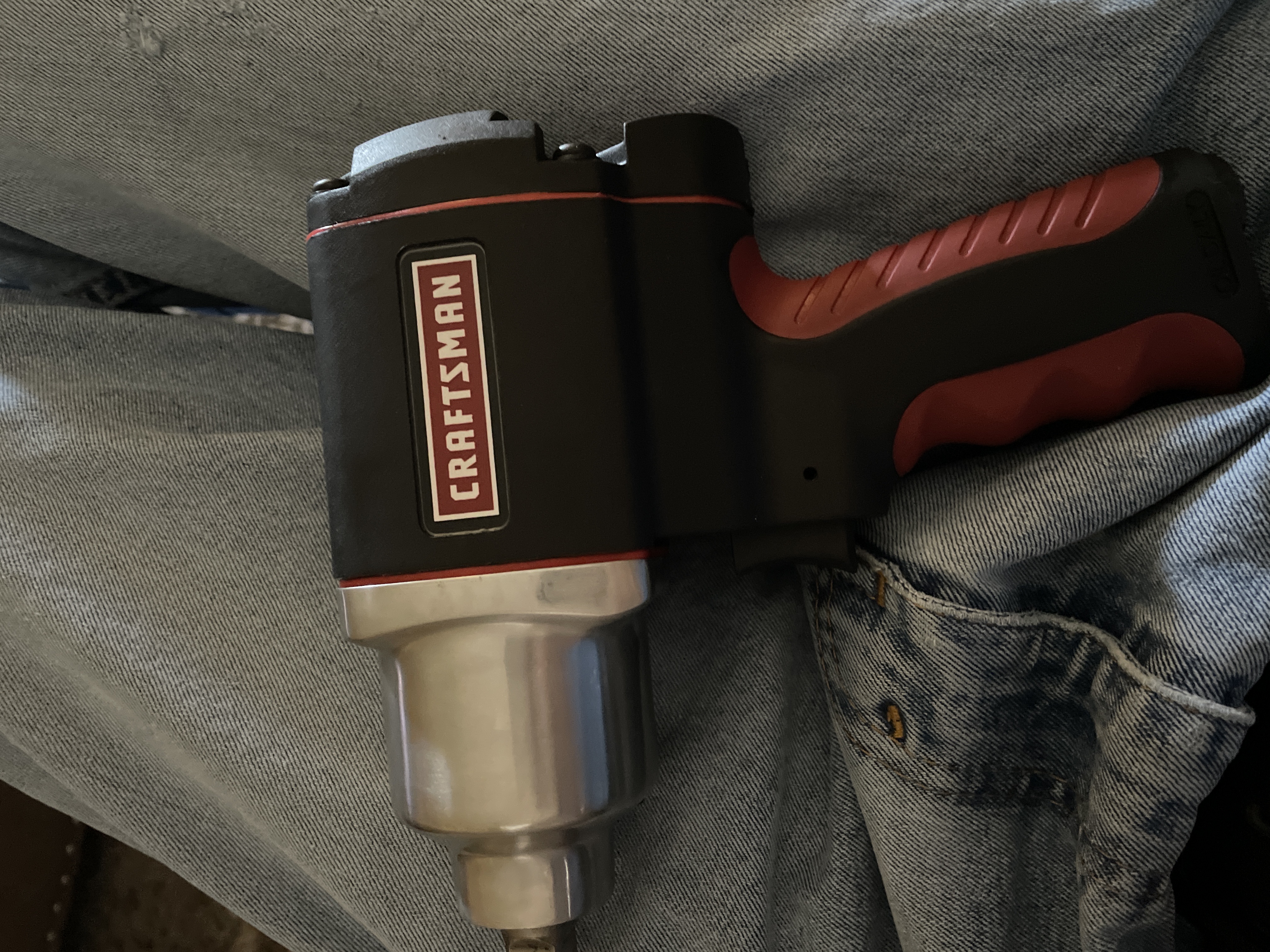

Pneumatic 1/2" drive impact wrench
Table of Contents

Advertisement

Available languages

Available languages

Owner's Manual
Pneumatic 1/2" Drive
IMPACT WRENCH
Model No.
875.199820
WARNING:
Before operating tool, read this
manual and follow all
Safety Recommendations
and
Operating Instructions.
Safety
,
Warranty
Features & Operation
Maintenance
Espahol
Distributed
by Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179
www.Sears.com

Advertisement

Table of Contents
loading

Summary of Contents for Craftsman 875.199820

  • Page 1 Owner's Manual Pneumatic 1/2" Drive IMPACT WRENCH Model No. 875.199820 WARNING: Before operating tool, read this manual and follow all Safety Recommendations Operating Instructions. Safety Warranty Features & Operation Maintenance Espahol Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.Sears.com...
  • Page 2: Specifications

    FULL ON E YEAR WARRANTY ON CRAFTSMAN AIR-DRIVE TOOLS Please become familiar with all the instructions If this Craftsman tool fails to give complete satisfaction warnings before operating any pneumatic tool. within one year from the date of purchase, RETURN IT...
  • Page 3: Maintenance

    Morse tha_n 1/100 slo. pe ranch ne = 2 t Sto _ Filter Main line = 3 times "If ..Reoulator Tool inlet/hose size iool mien/nose size Valve I I Auto AirTool Drain _)A:lve Air Compressor "_ Figure I • " Air Hose Hook Up \\\\\\\\\\\\_x\\ Lubrication...
  • Page 4: Exploded View And Parts List

    Sears CRAFTSMAN Model 875.199820 Pneumatic 1/2" Drive impact Wrench Exploded View and Parts List Q'ty Pa_ No. Ref. Part No, Ref. Description Description Q'ty 9287178 Housing O-Ring 9287179 Set Pin Anvil Bushing Socket Retainer 9287180 9287157 Spring 9287181 Reverse Switch...
  • Page 5: Troubleshooting

    Troubleshooting 1. Flush the tool with air tool oil or gum Tool runs slowly or will not operate 1. Grit or gum in tool solvent. 2. No oil in tooI 2. Lubricate the tool according to the lubrication instructions in this manuai 3.
  • Page 6: Manual Del Propietario

    Manual del Propietario LLAVE DE IMPACTO Neum,_tica con mando de 1/2 pulg Modelo No. 875.199820 ADVERTENCIA: Antes de usar esta herramienta, lea este manual y siga todas las recomendaciones de seguridad e instrucciones de operaci6n. Seguridad Garantia Caracteristicas y operaci6n Mantenimiento Espa_ol Distribuido...
  • Page 7: Las Herramientas

    Si no es posibte determinar la exposici6n al nivel de ruido, se recomienda usar protecci6n auditiva. La Ilave de impacto de mando cuadrado de 1/2 pulg Craftsman, Evite una exposicibn prolongada a la vibracion Modelo 875.199820, es ideal para usar en el ensamble general,...
  • Page 8 'X_ P endiente mayor de1/100 ' " Linea principal 3 veces f , ,- Filtro-regulador- Linea denvada = 2 veces \/_1,,.1= lubricador el tamaSo de la admisi6n/ el tamaSo de la admisi6n/, de clerre'_'" manguera de herramienta ..W,v°,a t de cierre W_v._a de purga...
  • Page 9 Sears CRAFTSMAN Modelo 875.199820 Llave de impacto neumatica con avance de 1/2 PULG Vista ampliada y lista de piezas • t J* Ref. Pieza No, Ref, Pieza No, Descripcibn Cant. Descripcion Cant. 9287178 Junta t6rica Caja protectora 9287156 9287179 Cojinete del yunque...
  • Page 10 Localizacion y solucion de fallas La herramienta funciona Ientamente o 1. En la herramienta hay polvo, 1. Irrigue la herramienta con aceite o diluyente de resinas no funciona, arena o resina. para herramientas neumaticas. en diluyente. 2. En la herramienta no hay aceite.
  • Page 11 For the repair or replacement parts you need delivered directly to your home Call 7 am - 7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) Para ordenar piezas con entrega a domicilio - 1-800-659-7084 For the location of a Sears Parts and Repair Center in your area Call 24 hours a day, 7 days a week 1-800-488-1222...
