  6. Installation and operating instructions manual

Yardistry 1807257 Installation And Operating Instructions Manual

4.27 m x 3.66 m (14 ft x 12 ft) marquee pavilion
Hide thumbs

Advertisement

Table of Contents

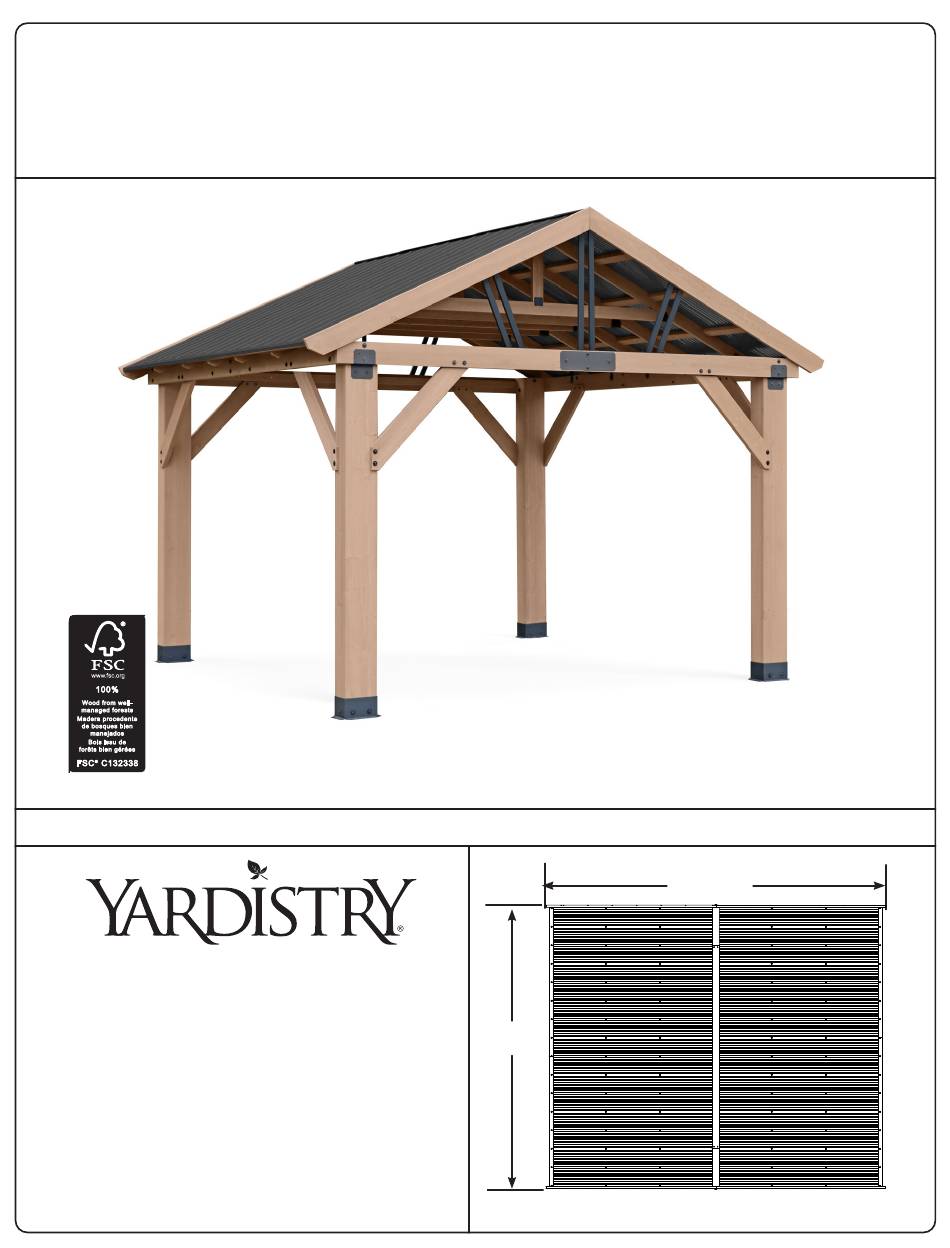

4.27 m x 3.66 m (14 ft x 12 ft)
MARQUEE PAVILION
Installation and Operating Instructions – YM12735
ITM. / ART. 1807257
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY. NOT FOR COMMERCIAL USE
Revised 10-01-2024
4.27 m
(14 ft)
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
3.66 m
Mon - Fri, 8:30 am - 5:00 pm EST
(12 ft)
(excl. holidays)
English and French Spoken
For extended hours see our website:
www.yardistrystructures.com
info@yardistrystructures.com
Height: 3.3 m / (10.8 ft)
Patents Pending
Y40000-2735
