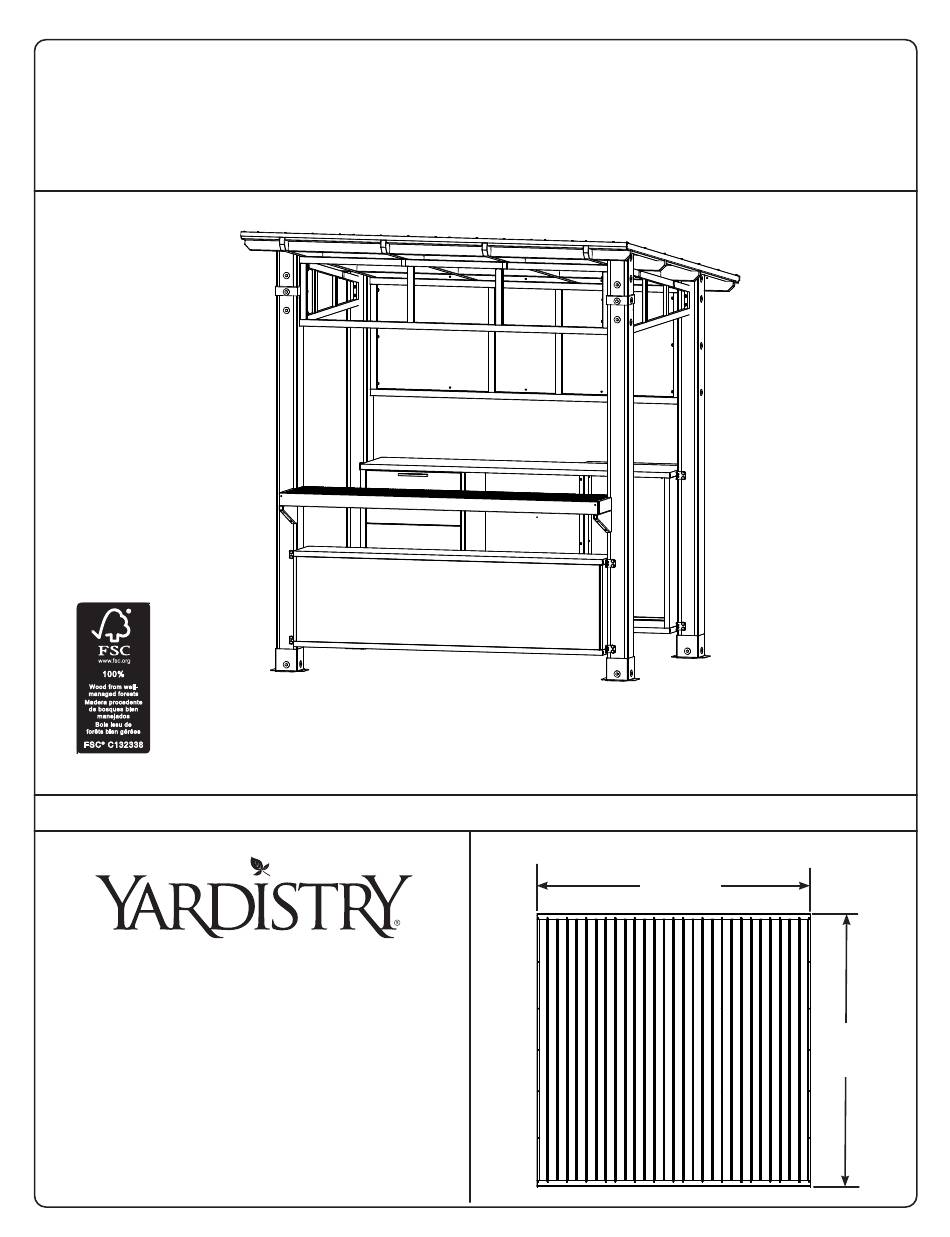

2.33 m (7.6 ft) x 2.33 m (7.6 ft)
Backyard Cantina
Installation and Operating Instructions – YM12662
ITM. / ART. 1807228
HEIGHT:
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
2.59 m / 8.5 ft
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY.
NOT FOR COMMERCIAL USE.
Revised 09-30-2024
YM12662 - Backyard Cantina
2.33 m
7.6 ft
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
2.33 m
2.33m
English and French Spoken
7.6 ft
7'-7 7/8"
For extended hours see our website:
www.yardistrystructures.com
info@yardistrystructures.com
Patents Pending
2.33m
Y40000-2662
7'-7 15/16"
1
support@yardistrystructures.com
Page 1 of 5
