WARNING:
Allow only qualified personnel to
perform the following tasks. Follow the safety
instructions in this document and all other related
documentation.
Description
The retrofit grounding kit for the HDLV
pump contains components to update:
•
Lower Y-block
•
Pickup tube assembly
•
Antistatic and polyethylene tubing
•
Tubing fitting adapter
Installing Grounding Kit
Remove Old Lower Y-Block
WARNING:
Shut off and relieve system air
pressure before performing the following tasks.
Failure to relieve air pressure may result in
personal injury.
NOTE:
Tag all air and powder tubing before disconnecting
from the pump.
1. See Figure 1. Disconnect the purge air lines from the
top of the pump.
2. Disconnect the inlet (suction) and outlet (delivery)
powder tubing from the bottom of the pump.
NOTE:
Measure and mark down the length of the inlet
and outlet tubing for reference in later procedures.
3. Remove the two screws (A) and the cover from the
pump.
© 2021 Nordson Corporation
HDLV
50-lb Dolly Transfer Pump
®
50 lb dolly transfer
®

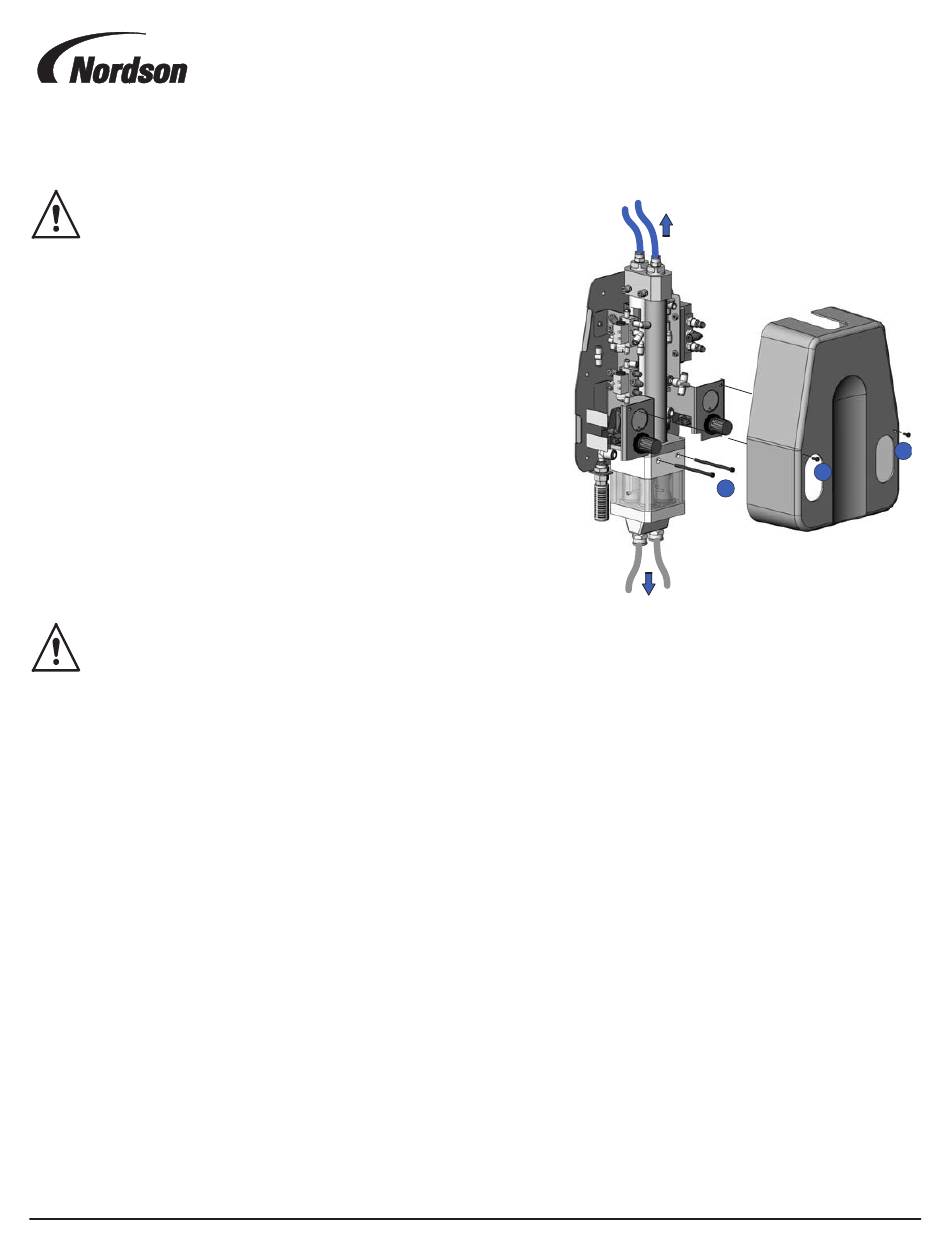

Figure 1 Removing the Pump Assembly
Document Number 1620881-01
Retrofit Grounding Kit
Outlet (Delivery)
Instruction Sheet
A
B
Inlet (Suction)
1620881-01
A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nordson HDLV
Summary of Contents for Nordson HDLV
- Page 1 Allow only qualified personnel to perform the following tasks. Follow the safety instructions in this document and all other related documentation. Description The retrofit grounding kit for the HDLV 50 lb dolly transfer ® pump contains components to update: •...
- Page 2 HDLV® 50-lb Dolly Transfer Pump Retrofit Grounding Kit 4. See Figure 2. Disconnect one end of each of the seven 6. See Figure Figure 3. Remove the four screws securing air tubes indicated. the lower Y-block to the pump. 5. See Figure 1. Remove the two screws (B) securing the pump assembly to the base.
- Page 3 HDLV® 50-lb Dolly Transfer Pump Retrofit Grounding Kit Install Pickup Tube and Suction 5. See Figure 6. Bring the spring guard down and rotate clockwise over the tubing onto the pickup tube to make Antistatic Tubing contact with the pickup tube head. This creates both strain relief for the tubing and grounding for the spring.
- Page 4 HDLV® 50-lb Dolly Transfer Pump Retrofit Grounding Kit Connect Grounding 7. See Figure 8. Install the bushing and pickup tube into the arm assembly. Install and hand tighten the nut to 1. See Figure 9. With the supplied ground wire, attach secure pickup tube in place.
- Page 5 HDLV® 50-lb Dolly Transfer Pump Retrofit Grounding Kit Connect Delivery Antistatic Tubing Adapter Side Antistatic Tubing Side (12.7 mm) (14.7 mm) 1. Use the outlet tubing (delivery) measurement taken from the previous procedure to measure and cut new antistatic tubing to the same length as old. Disgard old tubing.
- Page 6 NS: Not Shown Figure 12 Ground Kit Parts Issued 03/21 Original copyright date 2021. HDLV, Nordson, and the Nordson logo are registered trademarks of Nordson Corporation. All other trademarks are the property of their respective owners. 1620881-01 © 2021 Nordson Corporation...
