Ness M1 KP2 & KP3- LCD Keypads
APPLICATION
The Ness -M1KP2 & KP3 are low profile, addressable LCD Keypads for
the M1 Cross Platform Controls. They features a 32 character blue/
white backlighted display, blue lighted keys, 4 programmable function
keys, along with the ELK / MENU navigation keys. The standard
configuration is surface mountable, however the 101-256 version also
has an optional 'flush mount kit' (Ness Part No. 101-259). The M1KP's
are compatible with "external" proximity readers which utilizes standard
26 Bit Wiegand format, allowing cards or fobs to be used for Arming,
Disarming or door access control, etc.
FEATURES
Blue/White Backlighted Hi-Contrast LCD Display
Four (4) Programmable Function Keys
Unique Menu Navigation/Direction Keys
Operates on 4-Wires (M1G/M1EZ8 "RS485" Data Bus)
Built-in Piezo Sounder with Adjustable pitch
Accepts "External" 26 Bit Wiegand Prox Reader (Optional)
Input for 1 Supervised Zone
One Programmable "Switched Positive" Voltage Output
Exit, Stay, Chime, and Bypass Keys
Optional recess "Flush" mount kit available (Ness Part # 101-259)
(Only available for the 101-256)
SPECIFICATIONS
Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
Colour: White
Operating Voltage: 13.8 VDC
Current Draw: ~30 mA Idle (low back light level, sounder silent)
~85 mA Fully Active (max. back light)
Size: 118mm W x 140mm H x 24mm D (9.5 mm D recess mount)
Features and Specifications subject to change without notice.
Ness Security Products - 4 / 167 Prospect Hwy, Seven Hills, NSW, 2147
NSW (02) 8825 9222 - VIC (03) 9875 6400 - QLD (07) 3343 7744
www.ness.com.au/m1
25/09/06

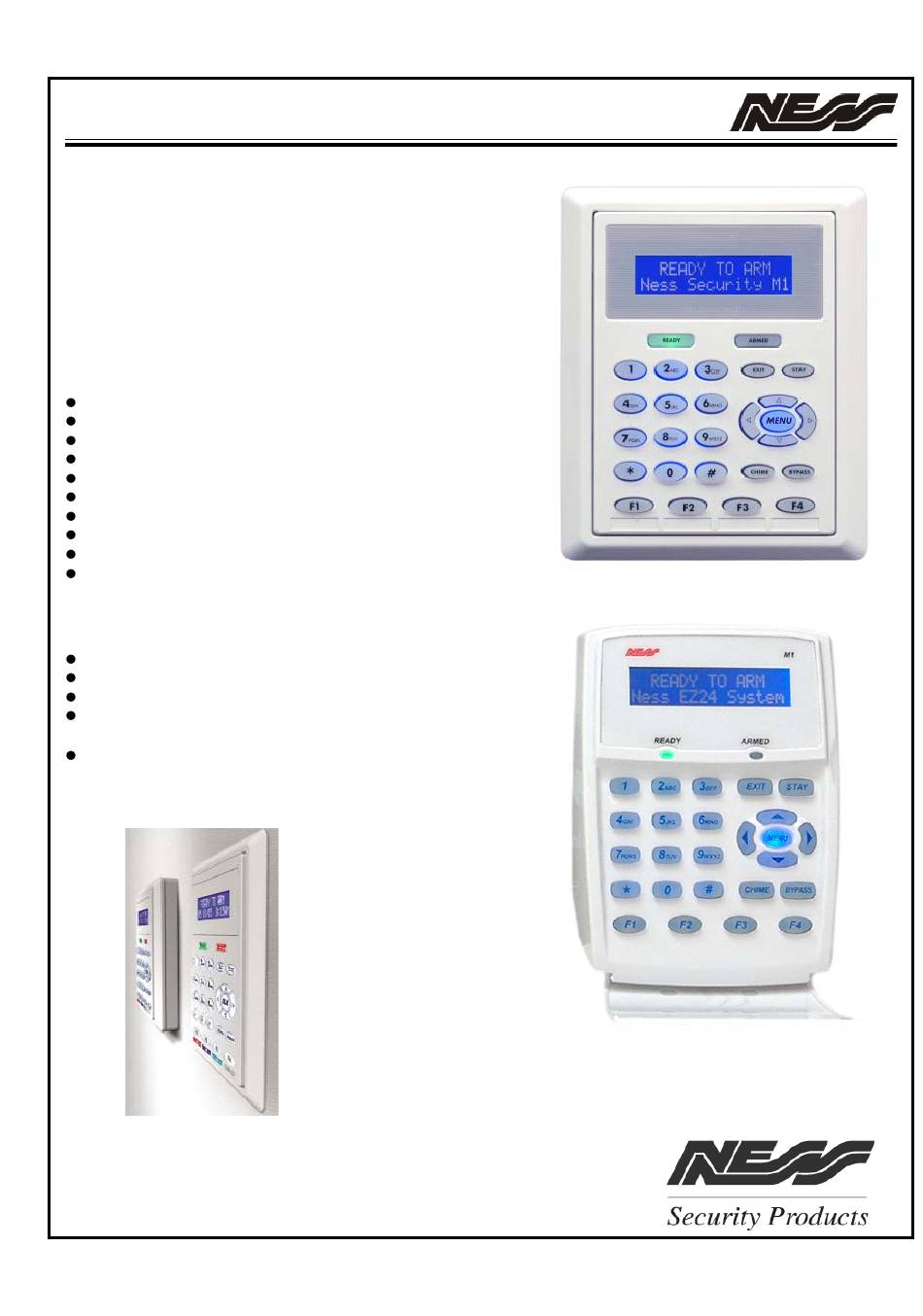

Side profile to help visualize the
101-256 M1S/FKP surface mount vs
recess mounted.
W.A. 08 9328 2511 - S.A. (08) 8277 7255
sales@ness.com.au
101-256 F/S LCD Keypad
101-255 LCD Keypad
Ness Document No. 890-359
