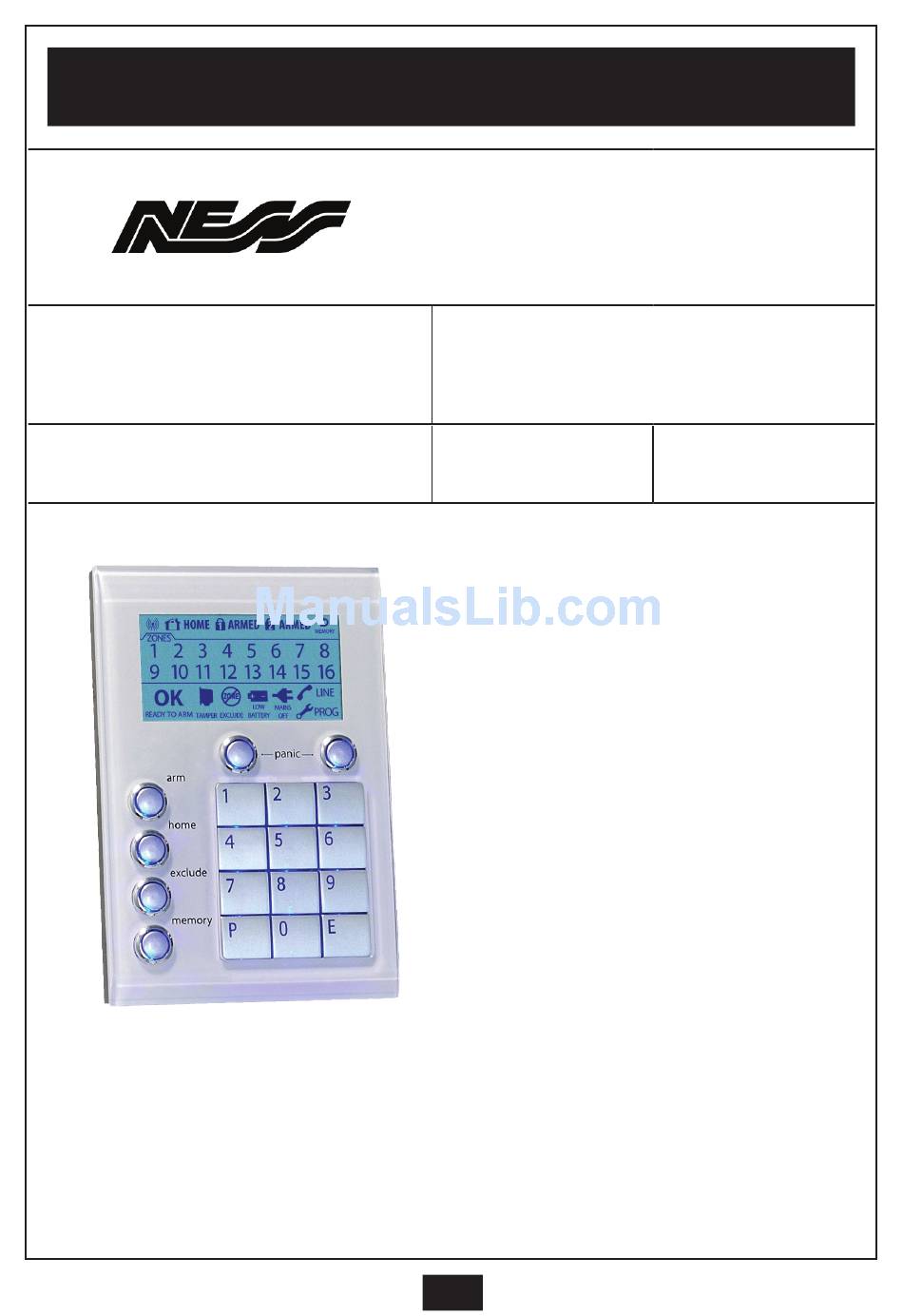

InstallatIon & operatIon
Product part number
Document part number
Image: Saturn keypad White
Saturn Keypad
106-108-WHT Saturn Keypad White
106-108-BLK Saturn Keypad Black
106-108-OMT Saturn Keypad Ocean Mist
890-405
• Architecturally designed premium keypad
• Glossy glass-look fascia
• High Contrast LCD icon display
• White and Red LCD backlighting
• Red LCD backlighting for alarm memory
• Satin finish tactile buttons
• Laser etched graphics
• Adjustable keypad beep volume
• Adjustable LCD brightness
• Adjustable blue keypad backlighting
• Supports D8x/D16x V6 panels
1
Rev 1
Advertisement
Table of Contents
Related Manuals for Ness 106-108-WHT Saturn Keypad White
Summary of Contents for Ness 106-108-WHT Saturn Keypad White
- Page 1 InstallatIon & operatIon Saturn Keypad Product part number 106-108-WHT Saturn Keypad White 106-108-BLK Saturn Keypad Black 106-108-OMT Saturn Keypad Ocean Mist 890-405 Rev 1 Document part number • Architecturally designed premium keypad • Glossy glass-look fascia • High Contrast LCD icon display •...
- Page 2 InstallatIon To release the keypad from the base, push the two locking lugs at the bottom of the keypad and lift the keypad out and away. To fit the keypad to the base align the top locating lugs then swing the keypad down to lock the bottom lugs.
- Page 3 InstallatIon Wiring Keypad should be wired to the control panel using minimum 7/020 security cable. Up to three Saturn keypads can be connected per control panel as long as the maximum current draw for all detectors and keypads is below 500mA. Maximum allowable cable distance is 100m including cable to all keypads.
- Page 4 saturn operatIon For the user Unique Features Adjustable White LCD back lighting Adjustable red LCD backlighting for Alarm Memory Key pairs for Panic, Fire Stylish and elegant & Medical alarms glass-look fascia Adjustable keypad beep Satin finish buttons volume with tactile “click” Adjustable blue keypad backlighting Low installation...
- Page 5 saturn operatIon For the user Adjust Keypad Backlight Brightness Press and hold the 6 key. Release when the desired brightness is reached. A short beep will be heard at the highest level. 10 Levels Adjust LCD brightness - White backlight Press and hold the 9 key.
-
Page 6: Panic Alarm
saturn operatIon For the user Special Key Functions These Double Key functions are only available when the Saturn keypad is used with D8x/ D16x panels V6 and later. Not applicable to previous panel versions. Panic alarm 1. Press the two Panic keys together for PANIC alarm. (Press and hold the keys for at least 1.5sec) 2. -
Page 7: Factory Default
saturn programmIng For the Installer Programming Programming option P126E in the D8x/D16x V6 and later control panels enable the Saturn KP Panic, Medical and Fire alarms as well as the Chime mode. Saturn can also be used with previous versions of D8x/D16x panels but these Saturn options will not be available. P126e D8x/D16x PaneL / KeyPaD oPtIonS Program moDe LeVeL... - Page 8 Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
