Summary of Contents for Ness Navigator

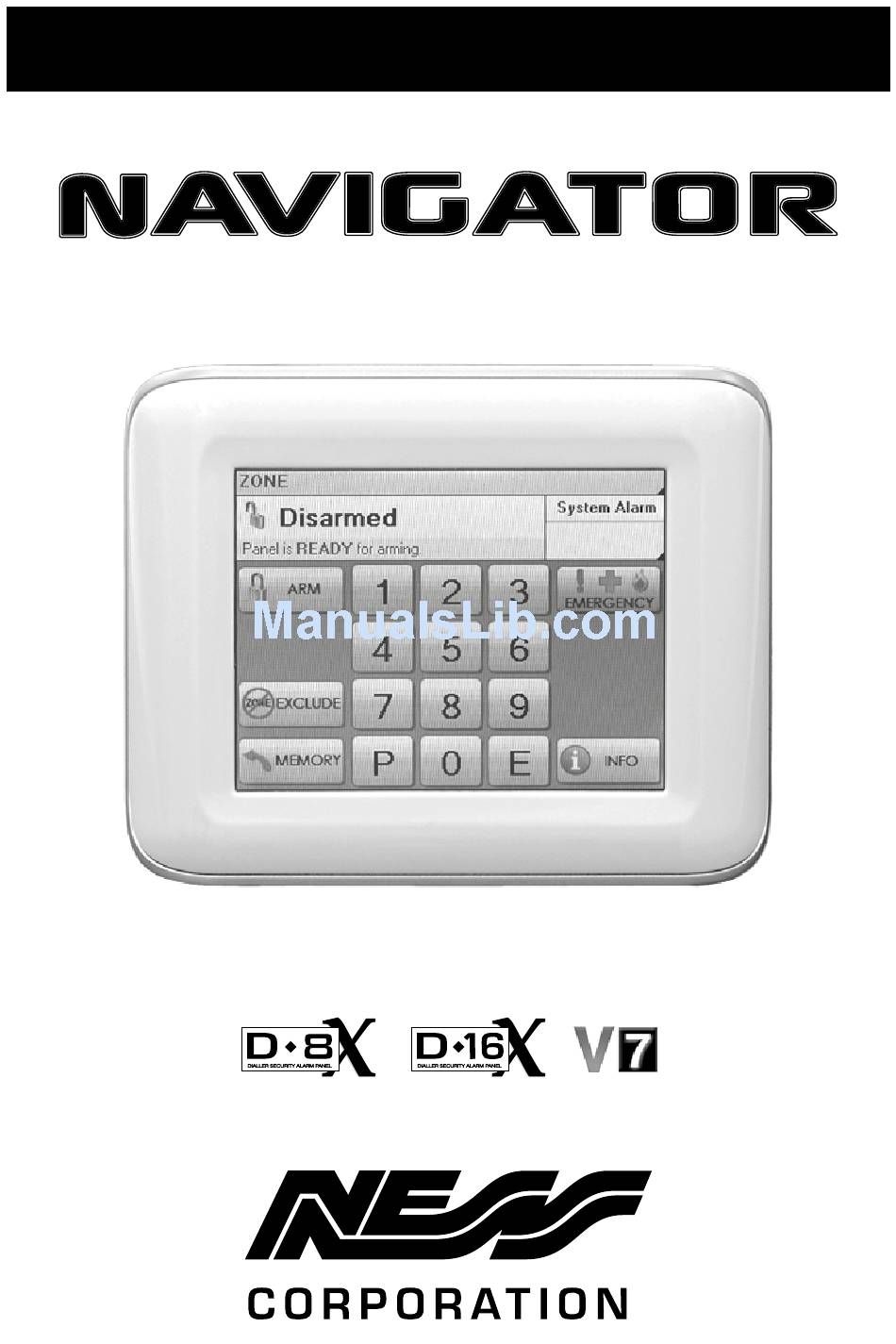

- Page 1 InstallatIon notes Touch Screen Keypad Compatible with Alarm Control Panels...
- Page 2 Navigator Keypad back housing. Locking slots x 4 Wiring Navigator Touch Screen Keypad should be wired to the control panel using minimum 7/020 security cable. up to four Navigator keypads can be connected per control 4 pin header.
-
Page 3: Applying The Protective Film
Protective Film Navigator Touch Screen Keypad is supplied with a self-adhesive screen protector to help protect the sensitive touch surface from marks and scratches which may appear under normal use. We highly recommend you apply the film to keep your touch screen looking brand new for years to come. -
Page 4: Specifications
Touch sensitive surface coMPatiBiLity D8x & D16x control panels version 7 and later Max. KeyPaDs 4 x Navigator Touch Keypads per panel Maximum current draw for all detectors and keypads should not exceed 500mA. oPeratiNg VoLtage 12VDC supplied by the control panel...
