Buyers SaltDogg PRO4000 Installation Instructions Manual

PRO4000 & PRO4000CH

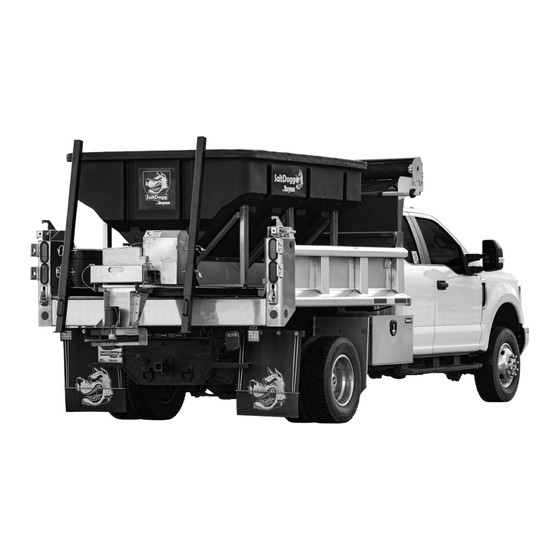

SaltDogg Electric Drive Poly
®
Hopper Spreaders
4.0 cubic yards
Table of Contents
General Information ....................................................................1
Safety Precautions ......................................................................1
Installation Instructions ........................................................... 2-4
Spreader Operation ................................................................ 3-4
Spreader Maintenance ................................................................4
Repair Parts & Drawings ......................................................... 5-8
Warranty Information ..................................................................8
General Information
Overall Length: 123.3 inches
Overall Width: 77 inches
Overall Height: 47.3 inches
Empty Weight: 812 lbs
Capacity Struck: 4.0 cu. yd.
Vehicle Requirements
Trucks with GVWR 15,000 to 26,000 lbs.
150 AMP or higher alternator is recommended.
Average Material Weights
Materials to use
Fine Salt-Dry
Coarse Salt-Dry
Sand Coarse-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
WARNING
Improper installation and operation could cause
personal injury, and/or property damage. Observe
the following Safety Precautions before, during and
after operating this spreader. By following these
precautions and common sense, possible injury to
persons and potential damage to this machine may
be avoided.
Installation Instructions
Weight (pounds per cubic yard)
2,250
1,431
2,565
Do not overload vehicle beyond the vehicle's GVWR
or GAWR. Check vehicle's load rating certification
sticker for maximum vehicle capacity.
Safety Precautions
1. Read this entire Owners Manual before operating this
spreader.
2. Read all safety decals on the spreader before operating.
3. Check to make sure all safety guards are securely mounted
into place before operating this spreader.
4. Verify that all personnel are clear of the spreader spray area
before starting or operating this spreader.
5. Do not over-load your vehicle beyond payload limits. If there
are any questions, contact the vehicle manufacturer.
6. Do not adjust, clean, lubricate or unclog material jambs
without first turning off the spreader.
7. Do not climb on or in the spreader during operation. Do not
ride on the spreader while the vehicle is in motion.
8. Make sure the spreader is securely fastened to the vehicle in
accordance with this manual.
9. Do not operate a spreader that is in need of maintenance or
repairs.
10. Batteries normally produce explosive gases which can
cause personal injury. Always disconnect the battery before
removing or replacing electrical components.
11. Do not leave unused material in hopper. Material can freeze
or solidify, causing spreader to not work properly, and/ or
damage the unit. Empty and clean after each use.
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
CAUTION
—continued inside
